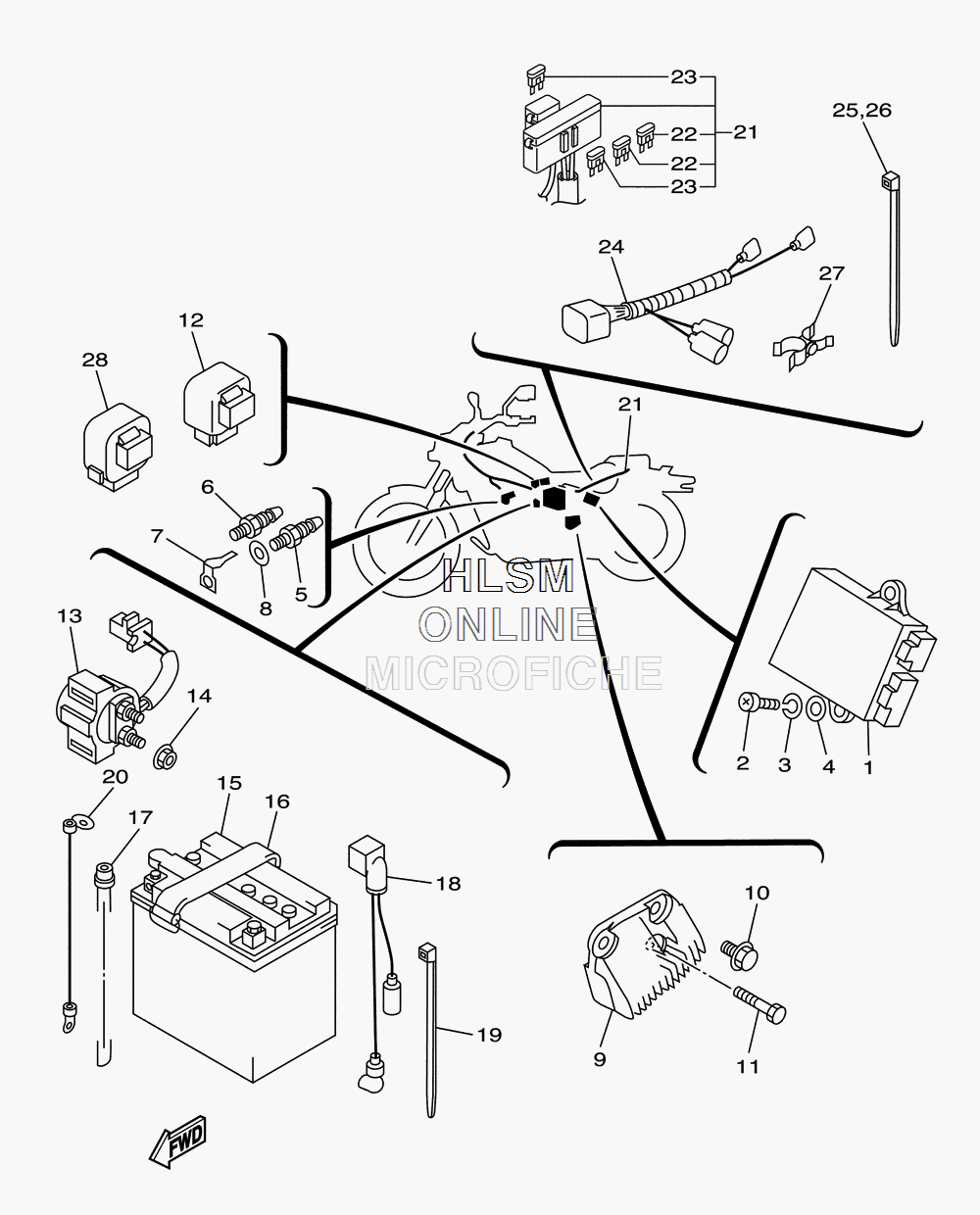

ELECTRICAL для Yamaha V STAR 250 - 2013 года выпуска
-
№АртикулНазвание
-
12UJ-82305-00-00 IGNITOR UNIT ASSYIGNITOR UNIT ASSY
-
298507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
392907-06100-00 WASHER, SPRINGWASHER, SPRING
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
55FU-83790-20-00 HEATER ASSY (30W) (CALIF. ONLY)HEATER ASSY (30W) (CALIF. ONLY)
-
55FU-83790-00-00 HEATER ASSY (15W) (EXCEPT CALIF.)HEATER ASSY (15W) (EXCEPT CALIF.)
-
65FU-83790-20-00 HEATER ASSY (30W) (EXCEPT CALIF.)HEATER ASSY (30W) (EXCEPT CALIF.)
-
75FU-82103-00-00 TERMINAL 1TERMINAL 1
-
890201-08016-00 WASHER, PLATE (CALIF. ONLY)WASHER, PLATE (CALIF. ONLY)
-
890201-08016-00 WASHER, PLATE (EXCEPT CALIF.)WASHER, PLATE (EXCEPT CALIF.)
-
93DM-81960-01-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1090119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1197007-06030-00 BOLTBOLT
-
122UJ-81950-00-00 RELAY ASSYRELAY ASSY
-
1336Y-81940-01-00 STARTER RELAY ASSY (MS5D-201)STARTER RELAY ASSY (MS5D-201)
-
1495707-06500-00 NUT, FLANGENUT, FLANGE
-
153DN-82110-01-00 BATTERY ASSY (G.S. GM10-3A-2)BATTERY ASSY (G.S. GM10-3A-2)
-
16118-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1790445-08248-00 HOSE (L500)HOSE (L500)
-
182UJ-82115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1990464-16061-00 CLAMPCLAMP
-
202UJ-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
213BG-82590-30-00 WIRE HARNESS ASSY (CALIF. ONLY)WIRE HARNESS ASSY (CALIF. ONLY)
-
2146B-82590-00-00 WIRE HARNESS ASSY (EXCEPT CALIF.)WIRE HARNESS ASSY (EXCEPT CALIF.)
-
225JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
235JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
242UJ-82509-01-00 WIRE, SUB LEADWIRE, SUB LEAD
-
2590464-16061-00 CLAMPCLAMP
-
2690464-16061-00 CLAMPCLAMP
-
2790464-16119-00 CLAMPCLAMP
-
283GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
