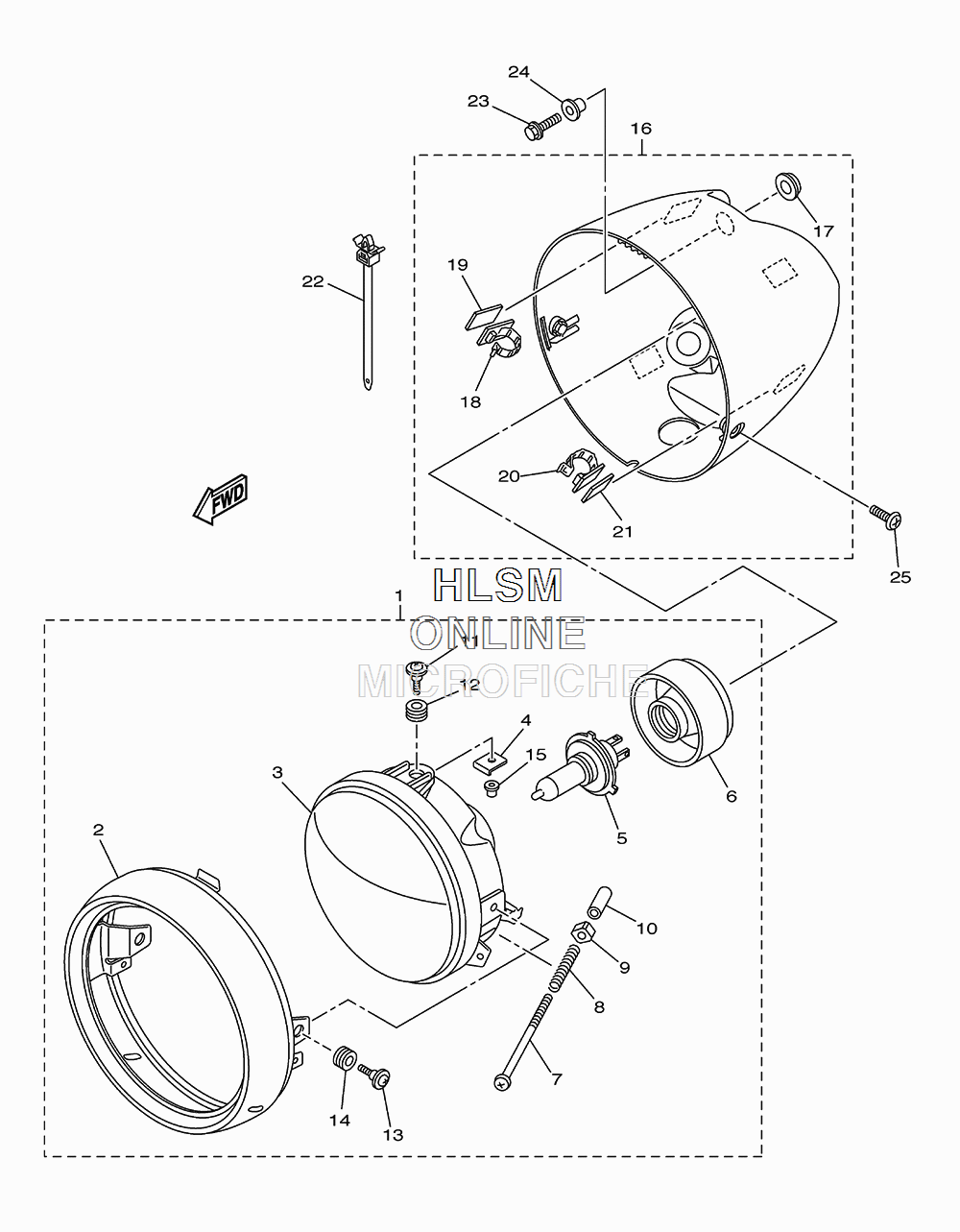

HEADLIGHT для Yamaha V STAR 950 - 2013 года выпуска
-
№АртикулНазвание
-
15S7-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25S7-84315-00-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
35PX-84320-00-00 ...LENS ASSY...LENS ASSY
-
45PX-84318-00-00 ...STAY, HEADLIGHT 1...STAY, HEADLIGHT 1
-
58G9-84314-00-00 ...BULB (12V-60/55W)...BULB (12V-60/55W)
-
65PX-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
75PX-84331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
85PX-84332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
95PX-84334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
105PX-84385-00-00 ...CAP,1...CAP,1
-
115PX-84325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
125PX-84354-00-00 ...GROMMET...GROMMET
-
135PX-84125-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
145PX-84352-00-00 ...GROMMET...GROMMET
-
155PX-84317-00-00 NUTNUT
-
165S7-84330-10-00 BODY ASSY (BWC1 - BLUISH WHITE)BODY ASSY (BWC1 - BLUISH WHITE)
-
165S7-84330-00-P0 BODY ASSY (SMX - BLACK METALLIC)BODY ASSY (SMX - BLACK METALLIC)
-
1742X-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
1890464-20020-00 ...CLAMP...CLAMP
-
195S7-28307-00-00 ...SEAL...SEAL
-
2090464-17002-00 ...CLAMP...CLAMP
-
215S7-28428-00-00 ...SEAL 1...SEAL 1
-
2290465-13M76-00 CLAMPCLAMP
-
2395022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2490387-06175-00 COLLARCOLLAR
-
2598980-05014-00 SCREW, BINDSCREW, BIND
