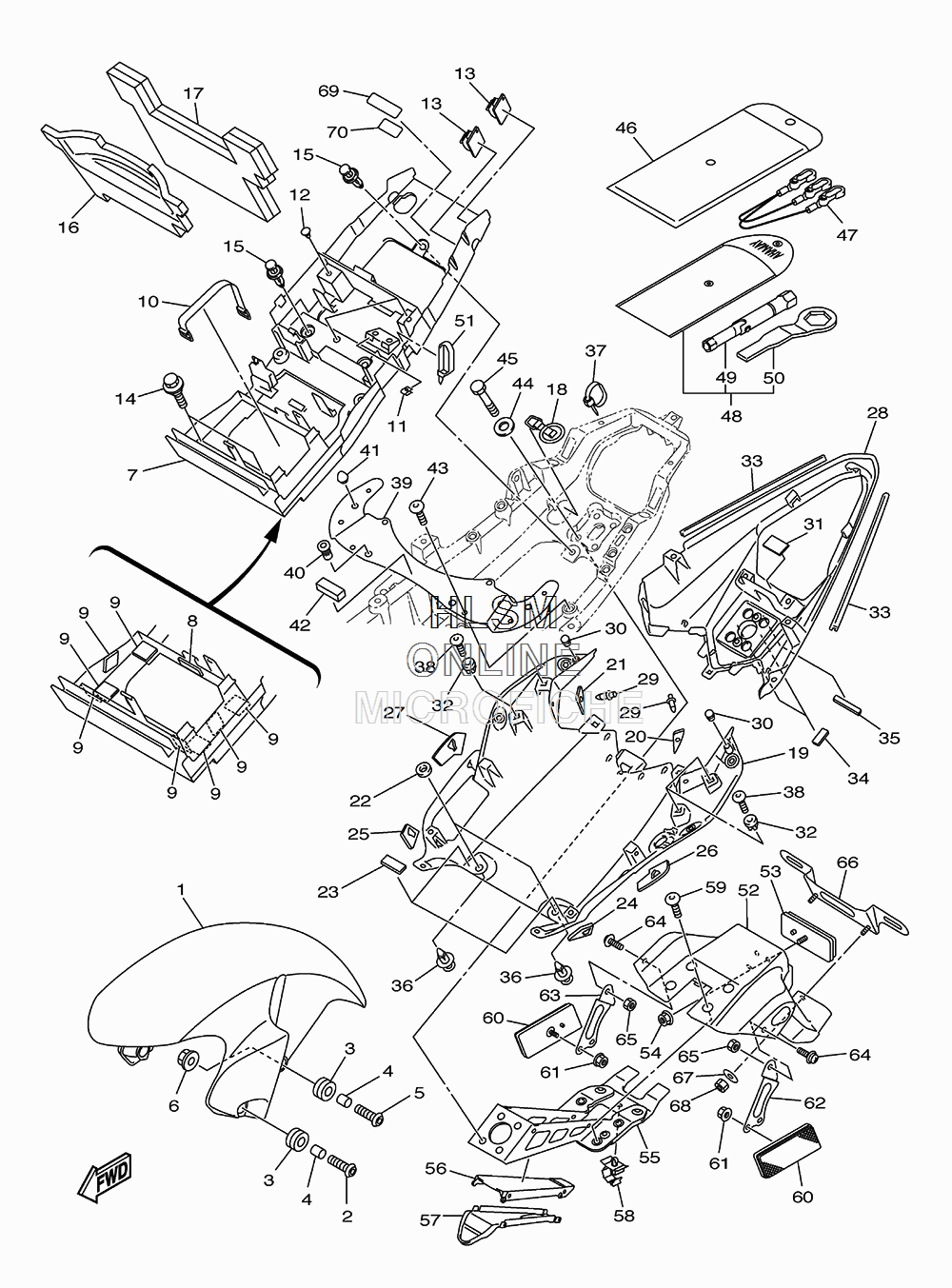

FENDER - FRONT / REAR для Yamaha YZF-R6 - 2013 года выпуска
-
№АртикулНазвание
-
12C0-21511-00-P9 FENDER, FRONT (BWC1 FOR DPBMC - PURPLISH BLUE)FENDER, FRONT (BWC1 FOR DPBMC - PURPLISH BLUE)
-
12C0-21511-00-P1 FENDER, FRONT VRC1 - VIVID RED)FENDER, FRONT VRC1 - VIVID RED)
-
12C0-21511-00-PB FENDER, FRONT (MNM3 - GRAY METALLIC)FENDER, FRONT (MNM3 - GRAY METALLIC)
-
290111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390480-14003-00 GROMMETGROMMET
-
490387-06057-00 COLLARCOLLAR
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695702-06500-00 NUT, FLANGENUT, FLANGE
-
713S-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
851Y-21639-00-00 DAMPER 2DAMPER 2
-
913S-21649-00-00 DAMPERDAMPER
-
10133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1190183-04039-00 NUT, SPRINGNUT, SPRING
-
1290338-06018-00 PLUGPLUG
-
1390464-13185-00 CLAMPCLAMP
-
1490109-06171-00 BOLTBOLT
-
1590269-07010-00 RIVETRIVET
-
1613S-21652-00-00 PROTECTORPROTECTOR
-
1713S-24140-00-00 DAMPER PLATE ASSYDAMPER PLATE ASSY
-
1813S-21376-00-00 BAND, TOOLBAND, TOOL
-
1913S-21611-00-P0 FENDER, REAR (DPBMC - PURPLISH BLUE)FENDER, REAR (DPBMC - PURPLISH BLUE)
-
1913S-21611-00-P1 FENDER, REAR (BWC1 FOR VRC1 - VIVID RED)FENDER, REAR (BWC1 FOR VRC1 - VIVID RED)
-
1913S-21611-00-P9 FENDER, REAR (MNM3 - GRAY METALLIC)FENDER, REAR (MNM3 - GRAY METALLIC)
-
2013S-2172P-00-00 SEATSEAT
-
2113S-2173P-00-00 SEAT 2SEAT 2
-
2213S-21735-00-00 SEAL 2SEAL 2
-
234D9-21717-00-00 DAMPERDAMPER
-
2413S-21669-00-00 SEALSEAL
-
2513S-216A2-00-00 SEAL, 2SEAL, 2
-
2613S-216A3-00-00 SEAL, 3SEAL, 3
-
2713S-216A4-00-00 SEAL, 4SEAL, 4
-
2813S-2162R-00-P3 FENDER 2 (SMX FOR DPBMC - PURPLISH BLUE)FENDER 2 (SMX FOR DPBMC - PURPLISH BLUE)
-
2813S-2162R-00-P8 FENDER 2 (VRC1 - VIVID RED)FENDER 2 (VRC1 - VIVID RED)
-
2813S-2162R-00-P7 FENDER 2 (MNM3 - GRAY METALLIC)FENDER 2 (MNM3 - GRAY METALLIC)
-
2990269-06001-00 RIVETRIVET
-
3090338-06018-00 PLUGPLUG
-
315GM-27445-00-00 PLATE 1PLATE 1
-
3290480-08005-00 GROMMETGROMMET
-
3313S-21732-00-00 SEAL 1SEAL 1
-
3413S-21575-00-00 SEAL 1SEAL 1
-
3513S-2173N-00-00 SEAL 4SEAL 4
-
3690269-07010-00 RIVETRIVET
-
3790464-13073-00 CLAMPCLAMP
-
3897702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
3913S-21131-00-00 BRACKETBRACKET
-
4090179-06010-00 NUTNUT
-
414G0-21639-00-00 DAMPER 2DAMPER 2
-
425YT-24665-00-00 DAMPERDAMPER
-
4390111-06104-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4413S-21615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
4590101-06056-00 BOLTBOLT
-
462C0-28100-00-00 TOOL KITTOOL KIT
-
472C0-21370-00-00 HELMET HANGER ASSYHELMET HANGER ASSY
-
482C0-28110-00-00 TOOL KIT, 2TOOL KIT, 2
-
494XV-2814F-00-00 ...BOX, SPARK PLUG...BOX, SPARK PLUG
-
504FM-28135-00-00 ...SPANNER, SPECIAL...SPANNER, SPECIAL
-
5190465-13M11-00 CLAMPCLAMP
-
522C0-21629-11-00 GUARD, MUDGUARD, MUD
-
533Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5495602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5513S-21640-00-00 REAR STAY COMP.REAR STAY COMP.
-
562C0-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
572C0-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
5890464-14228-00 CLAMPCLAMP
-
5990109-06182-00 BOLTBOLT
-
603Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
6195702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
622C0-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
632C0-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
6490159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
6595602-06100-00 NUT, UNUT, U
-
665MT-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
6790201-06057-00 WASHER, PLATEWASHER, PLATE
-
6895602-06100-00 NUT, UNUT, U
-
693JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
703TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
