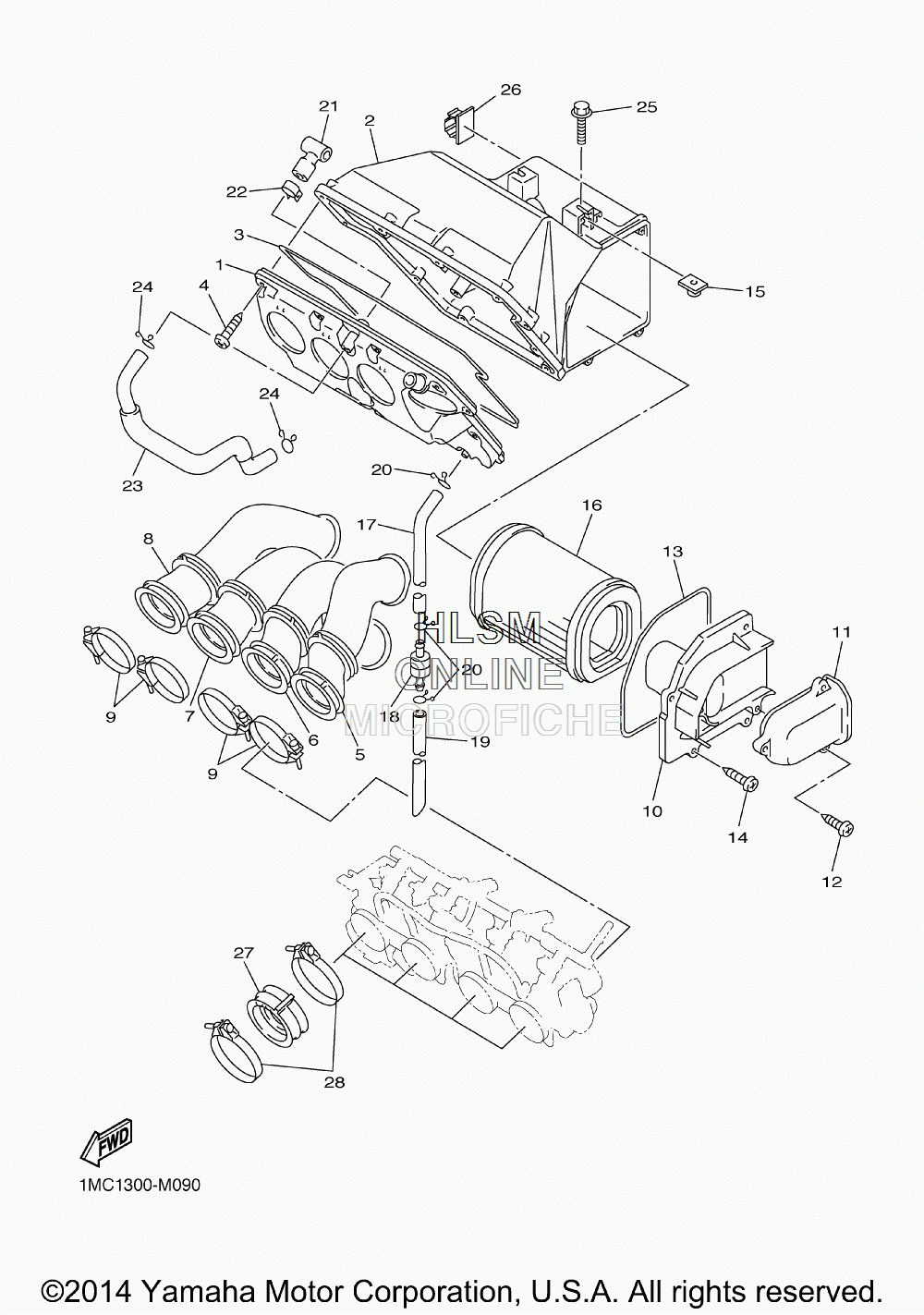

AIR CLEANER W/ INTAKE для Yamaha FJR1300ES - 2014 года выпуска
-
№АртикулНазвание
-
11MC-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
21MC-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
34XV-14452-00-00 SEALSEAL
-
497702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
51MC-14453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
61MC-14463-00-00 JOINT, AIR CLEANER 2JOINT, AIR CLEANER 2
-
71MC-14454-00-00 JOINTJOINT
-
81MC-14568-00-00 JOINTJOINT
-
990450-56007-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
105JW-14412-10-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
115JW-14437-00-00 DUCTDUCT
-
1297702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
135JW-14452-00-00 SEALSEAL
-
1497702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
1531A-14477-10-00 PLATEPLATE
-
165JW-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1790445-11452-00 HOSE (L125)HOSE (L125)
-
184X7-2149Y-00-00 FILTER ASSYFILTER ASSY
-
1990445-11094-00 HOSEHOSE
-
2090467-10041-00 CLIPCLIP
-
215JW-14419-00-00 PIPEPIPE
-
2290468-08104-00 CLIPCLIP
-
231MC-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
2490467-14015-00 CLIPCLIP
-
2595822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2690464-20014-00 CLAMPCLAMP
-
271MC-13597-00-00 JOINT, CARBURETOR 3JOINT, CARBURETOR 3
-
2890450-62002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
