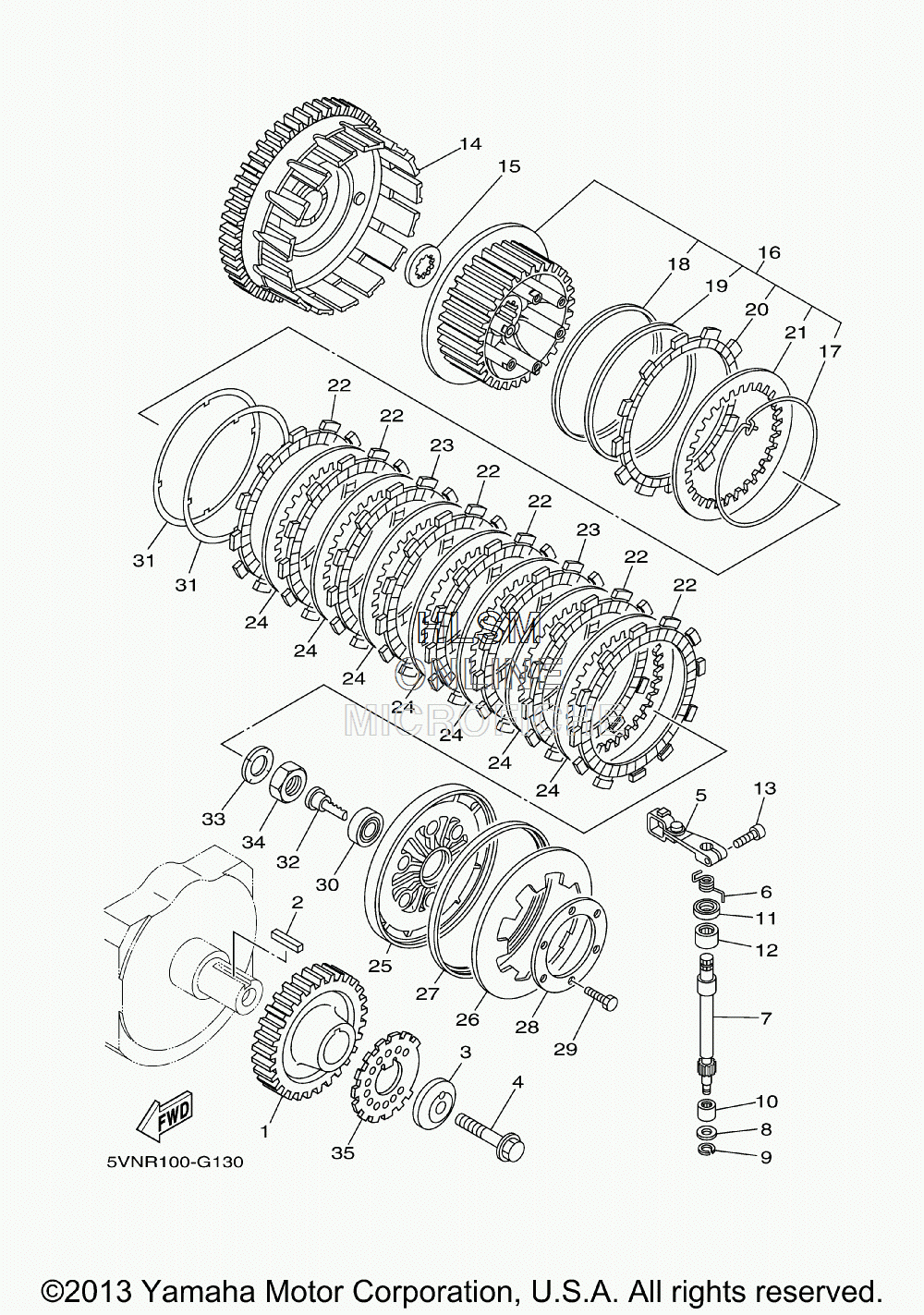

CLUTCH для Yamaha ROAD STAR SILVERADO S - 2014 года выпуска
-
№АртикулНазвание
-
14WM-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
24WM-16193-00-00 KEY, FEATHERKEY, FEATHER
-
34WM-16181-00-00 SPACER 1SPACER 1
-
490101-12011-00 BOLTBOLT
-
55PX-16340-00-00 PUSH LEVER ASSYPUSH LEVER ASSY
-
690508-16007-00 SPRING, TORSIONSPRING, TORSION
-
74WM-16382-00-00 AXLE, PUSH LEVERAXLE, PUSH LEVER
-
892907-08600-00 WASHER, PLATEWASHER, PLATE
-
999001-07600-00 CIRCLIPCIRCLIP
-
1093317-11096-00 BEARINGBEARING
-
1193102-15212-00 OIL SEAL SD-TYPEOIL SEAL SD-TYPE
-
1293315-31502-00 BEARING CYL.#15BEARING CYL.#15
-
1391314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
144WM-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
155VN-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
165PX-16370-10-00 CLUTCH BOSS ASSYCLUTCH BOSS ASSY
-
1726H-16385-00-00 ...RING SET...RING SET
-
1826H-16384-00-00 ...PLATE, SEAT...PLATE, SEAT
-
191FK-16383-00-00 ...SPRING.,CUSHION...SPRING.,CUSHION
-
2026H-16321-01-00 ...PLATE, FRICTION...PLATE, FRICTION
-
2126H-16324-00-00 ...PLATE, CLUTCH 1...PLATE, CLUTCH 1
-
2226H-16307-01-00 PLATE, FRICTION 3PLATE, FRICTION 3
-
2326H-16321-01-00 PLATE, FRICTIONPLATE, FRICTION
-
2426H-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
251FK-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
261FK-16334-10-00 SPRING, CLUTCH 2SPRING, CLUTCH 2
-
271FK-16335-00-00 HOUSING, SPRINGHOUSING, SPRING
-
285PX-16352-00-00 PLATE, PRESSURE 2PLATE, PRESSURE 2
-
2997007-06025-00 BOLTBOLT
-
3093306-00304-00 BEARINGBEARING
-
315PX-16383-00-00 SPRING, CUSHIONSPRING, CUSHION
-
324XV-16356-01-00 ROD, PUSH 1ROD, PUSH 1
-
3390208-20001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
3490179-20007-00 NUTNUT
-
355YU-81673-00-00 ROTORROTOR
