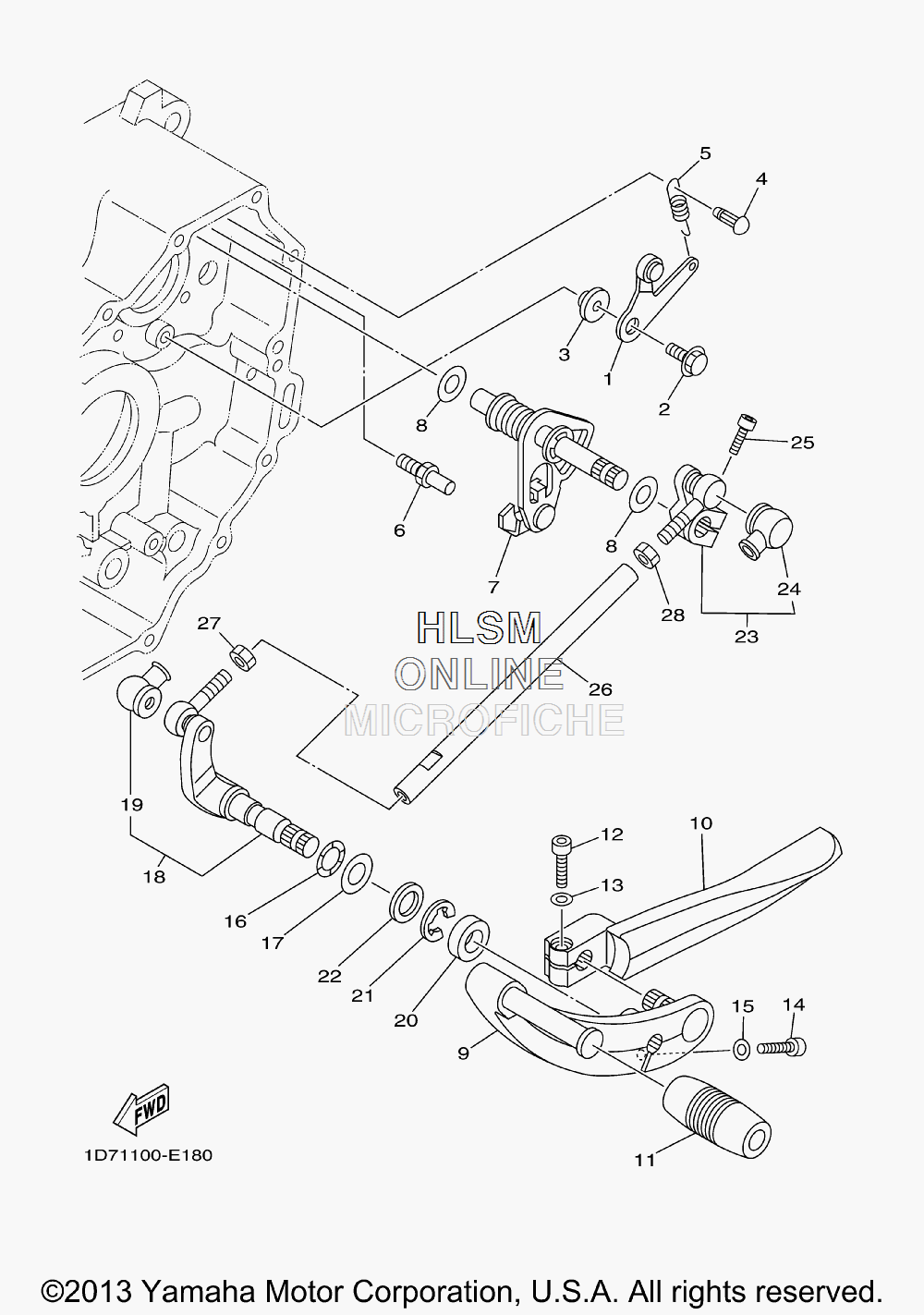

SHIFT SHAFT для Yamaha STRATOLINER S - 2014 года выпуска
-
№АртикулНазвание
-
11D7-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
290159-06027-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
34NX-18175-00-00 SPACERSPACER
-
4132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
51D7-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
61D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
71D7-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
890201-127E1-00 WASHER, PLATEWASHER, PLATE
-
91D7-18162-00-00 PEDAL, SHIFTPEDAL, SHIFT
-
101D7-18163-00-00 PEDAL, REARPEDAL, REAR
-
115VN-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
1291314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1392902-06600-00 WASHER, PLATEWASHER, PLATE
-
1491314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1592902-06600-00 WASHER, PLATEWASHER, PLATE
-
1690206-14086-00 WASHER, WAVEWASHER, WAVE
-
1790201-14018-00 WASHER, PLATEWASHER, PLATE
-
181D7-18164-00-00 KNOB, SHIFTERKNOB, SHIFTER
-
192H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
205PX-18154-00-00 COVER, DUSTCOVER, DUST
-
2199001-12600-00 CIRCLIP E-TYPECIRCLIP E-TYPE
-
2290201-14019-00 WASHER, PLATEWASHER, PLATE
-
231D7-18130-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
242H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
2591314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
261D7-18115-00-00 ROD, SHIFTROD, SHIFT
-
2795304-08700-00 NUTNUT
-
2890170-08358-00 NUTNUT
