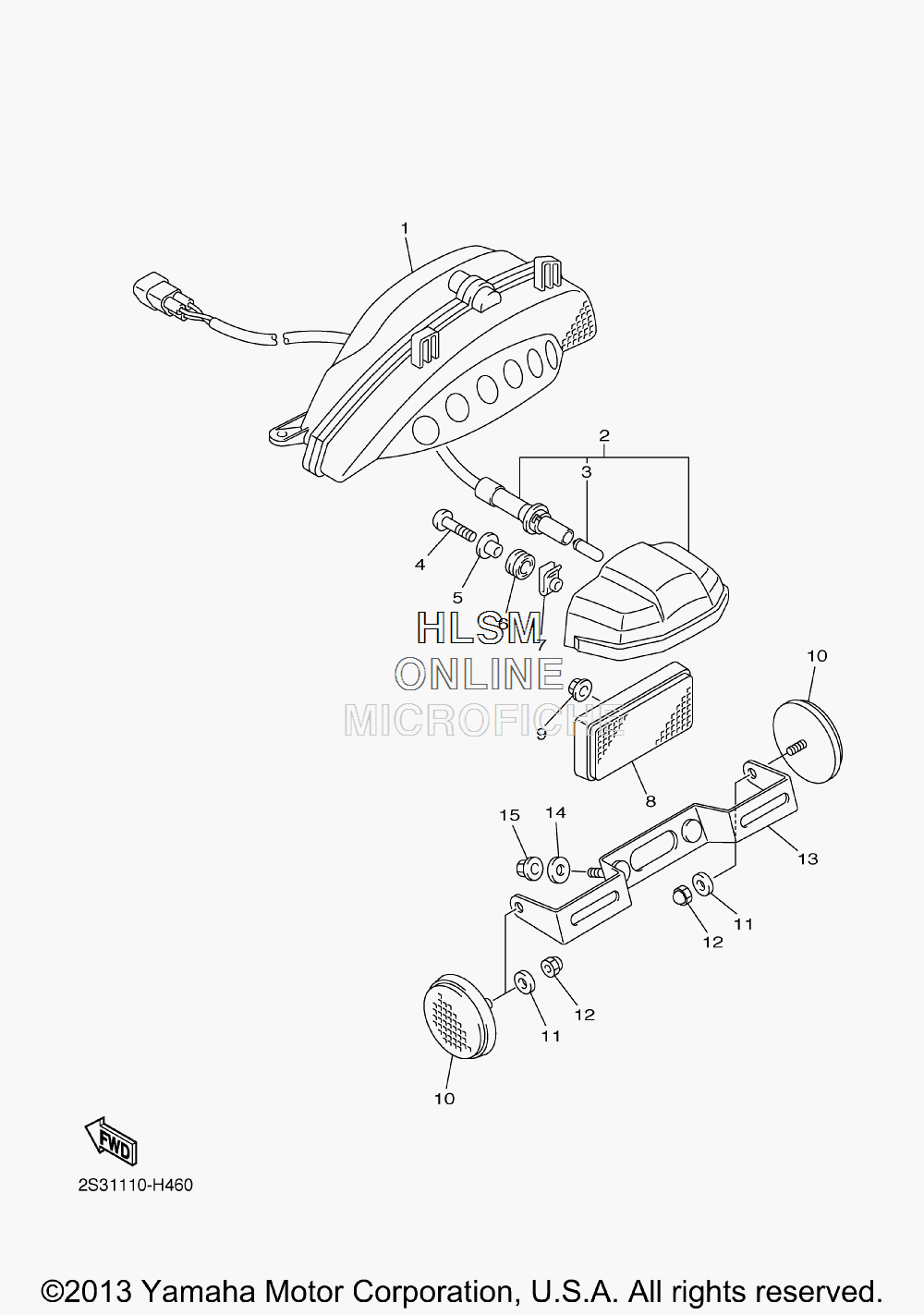

TAILLIGHT для Yamaha V Max - 2014 года выпуска
-
№АртикулНазвание
-
12S3-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
22S3-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
35DM-84347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
490111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590387-05044-00 COLLARCOLLAR
-
690480-14017-00 GROMMETGROMMET
-
790183-05076-00 NUT, SPRINGNUT, SPRING
-
83Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
995604-05200-00 NUT, U FLANGENUT, U FLANGE
-
10449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
1190201-05040-00 WASHER, PLATEWASHER, PLATE
-
1290176-05001-00 NUT, CROWNNUT, CROWN
-
132S3-84703-00-00 BRACKETBRACKET
-
1490201-06057-00 WASHER, PLATEWASHER, PLATE
-
1595607-06100-00 NUT, UNUT, U
