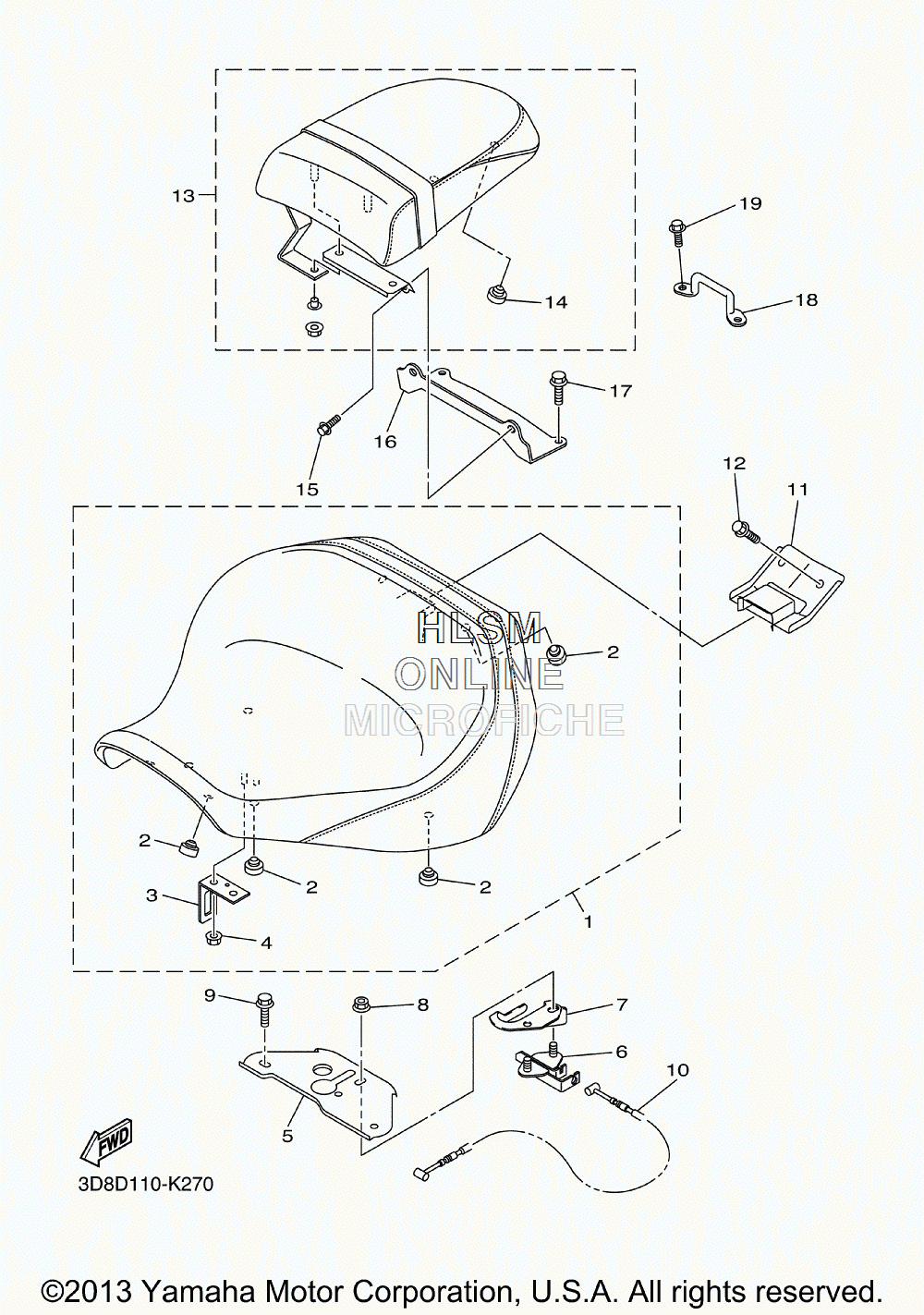

SEAT для Yamaha V STAR 1300 DELUXE - 2014 года выпуска
-
№АртикулНазвание
-
13D8-24710-10-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
222W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
34NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
495602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
53D8-21341-01-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
64BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
727D-24792-00-00 PLATEPLATE
-
895702-06500-00 NUT, FLANGENUT, FLANGE
-
995822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
105PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
113D8-2475N-00-00 BRACKETBRACKET
-
1292012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
133D8-24750-01-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
1422W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
1595022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
161D7-2475H-00-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
1795022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
183D8-2475R-00-00 BRACKET 6BRACKET 6
-
1995022-08012-00 BOLT, FLANGEBOLT, FLANGE
