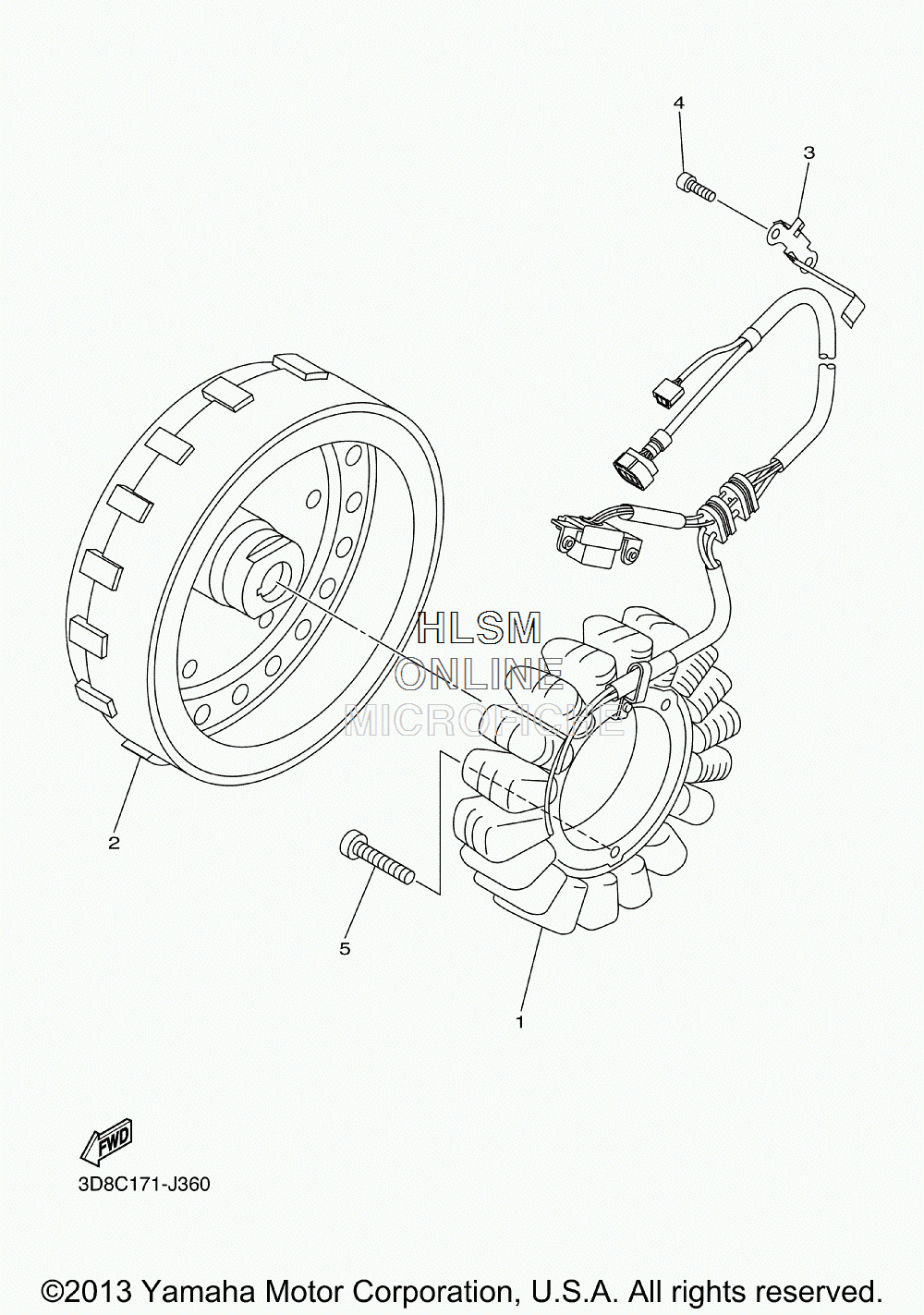

GENERATOR для Yamaha V STAR 1300 - 2014 года выпуска
-
№АртикулНазвание
-
13D8-81410-20-00 STATOR ASSYSTATOR ASSY
-
23D8-81450-10-00 ROTOR ASSYROTOR ASSY
-
33D8-15484-00-00 CLAMP 2CLAMP 2
-
490110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590110-06177-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
