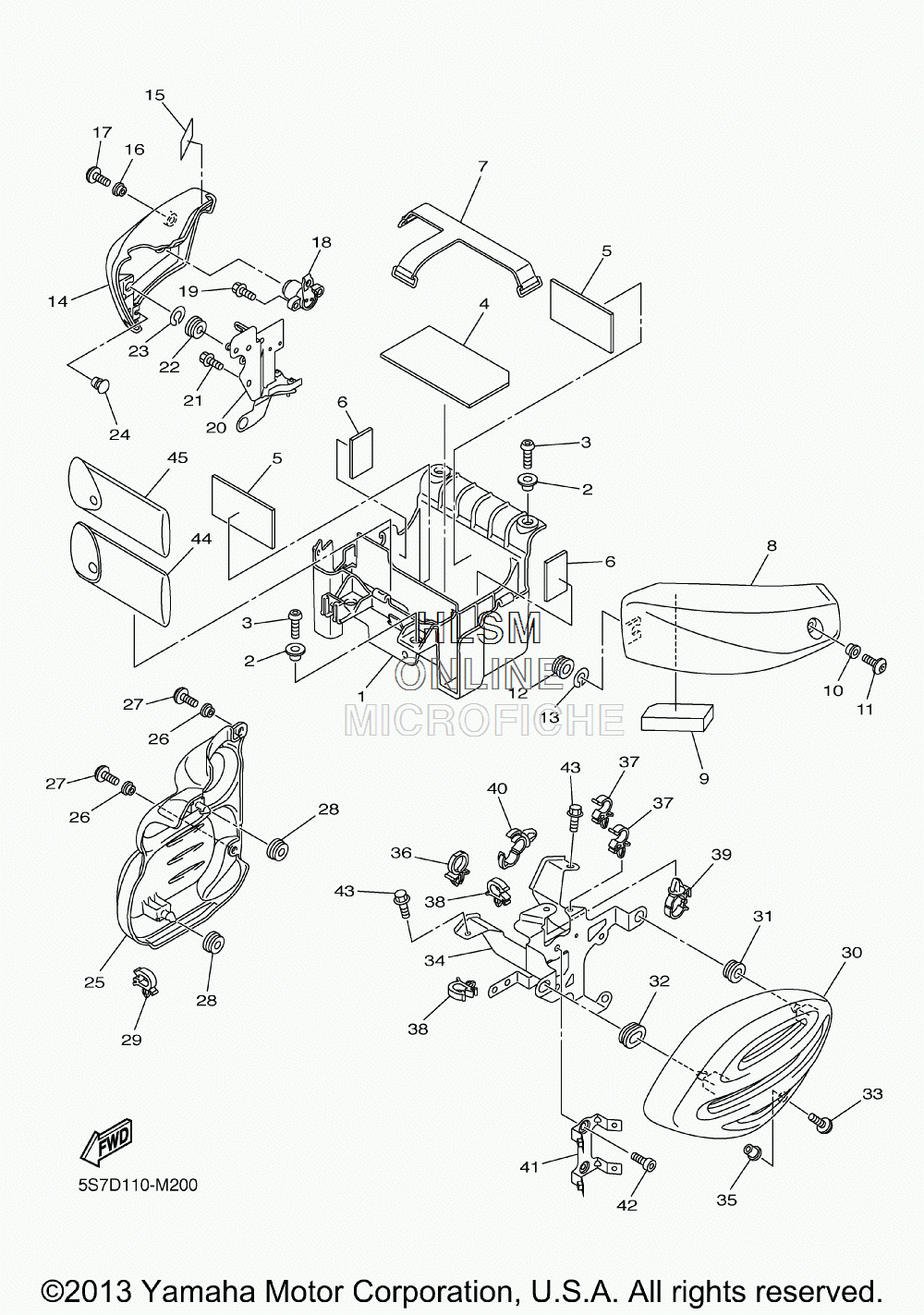

SIDE COVER для Yamaha V STAR 950 - 2014 года выпуска
-
№АртикулНазвание
-
15S7-2177G-00-00 BOX, BATTERYBOX, BATTERY
-
290387-06267-00 COLLARCOLLAR
-
395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
451Y-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
55EJ-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
65S7-2139X-00-00 DAMPERDAMPER
-
75S7-82131-00-00 BAND, BATTERYBAND, BATTERY
-
85S7-21711-00-P1 COVER, SIDE 1 (DRMK)COVER, SIDE 1 (DRMK)
-
95S7-21852-00-00 DAMPERDAMPER
-
1090387-06173-00 COLLARCOLLAR
-
1190111-06038-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1290480-12550-00 GROMMETGROMMET
-
135S7-21715-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
145S7-21721-00-P1 COVER, SIDE 2 (DRMK)COVER, SIDE 2 (DRMK)
-
1519D-21732-00-00 SEAL 1SEAL 1
-
1690387-06173-00 COLLARCOLLAR
-
1790149-06023-00 SCREWSCREW
-
185PX-W2470-00-00 ROTOR SETROTOR SET
-
1990105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
205S7-2172N-00-00 BRACKET 4BRACKET 4
-
2190105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
2290480-12550-00 GROMMETGROMMET
-
235S7-21715-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
2490338-06018-00 PLUGPLUG
-
255S7-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
2690387-06231-00 COLLARCOLLAR
-
2790111-06038-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2890480-13426-00 GROMMETGROMMET
-
2990464-11003-00 CLAMPCLAMP
-
305S7-21731-11-00 COVER, SIDE 3COVER, SIDE 3
-
3190480-13567-00 GROMMETGROMMET
-
3290480-01558-00 GROMMETGROMMET
-
3390149-05299-00 SCREWSCREW
-
345S7-2175V-00-00 BRACKET 3BRACKET 3
-
3590179-05003-00 NUTNUT
-
3690464-12001-00 CLAMPCLAMP
-
3790464-09129-00 CLAMPCLAMP
-
3890464-11003-00 CLAMPCLAMP
-
3990464-20010-00 CLAMPCLAMP
-
4090464-20181-00 CLAMPCLAMP
-
413D8-21359-01-00 BRACKET, COILBRACKET, COIL
-
4291312-06010-00 BOLTBOLT
-
4395024-08016-00 BOLT, FLG.(SMALL HEAD)BOLT, FLG.(SMALL HEAD)
-
443D8-28100-00-00 TOOL KITTOOL KIT
-
455S7-28110-00-00 TOOL KIT, 2TOOL KIT, 2
