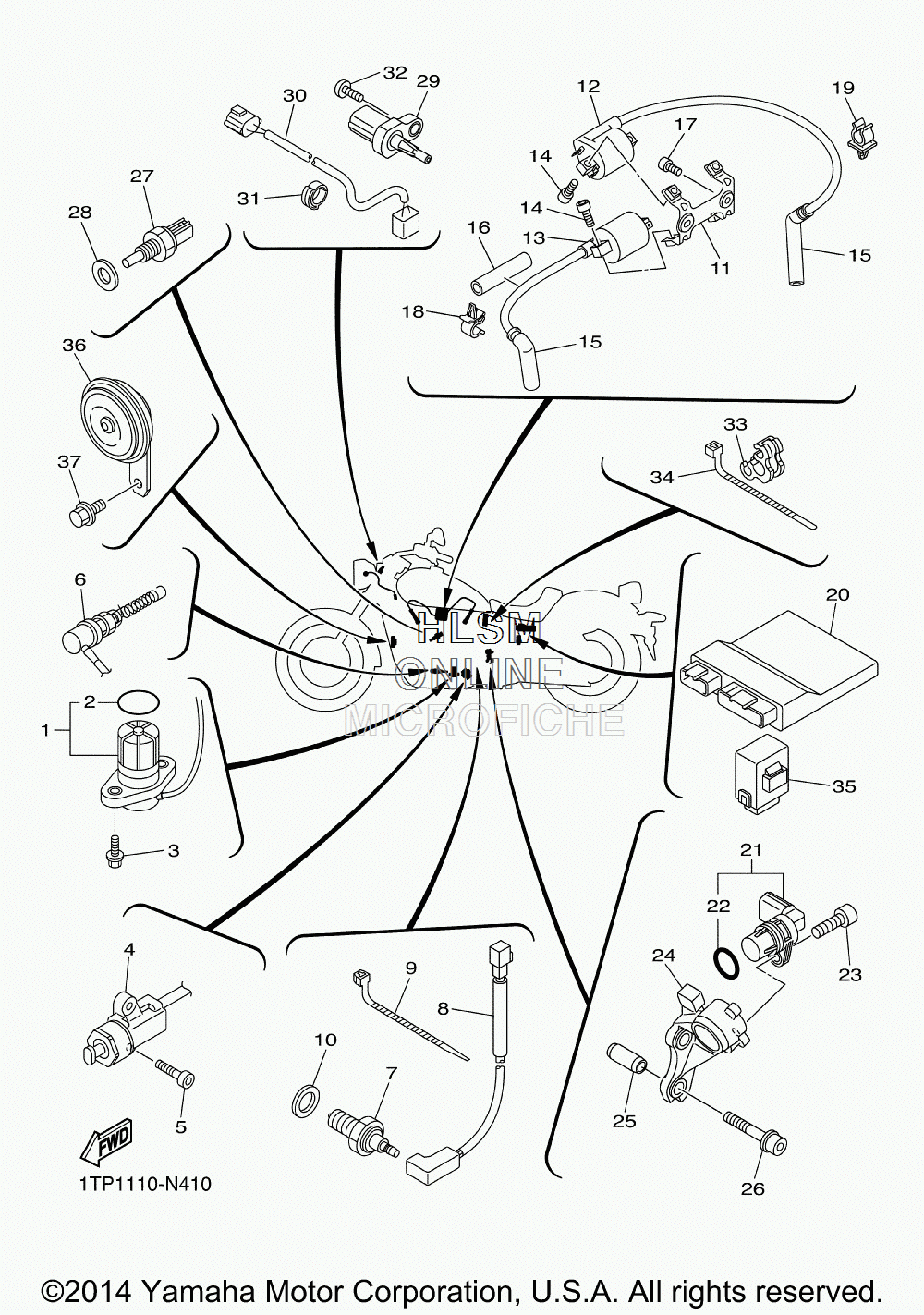

ELECTRICAL для Yamaha BOLT [XVS95CF] - 2015 года выпуска
-
№АртикулНазвание
-
15S7-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
25VY-8A8E0-00-00 ...O-RING...O-RING
-
395022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
41TP-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
591317-05016-00 BOLTBOLT
-
61TP-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
73GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
85S7-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
990464-13077-00 CLAMPCLAMP
-
1090430-10148-00 GASKETGASKET
-
113D8-21359-01-00 BRACKET, COILBRACKET, COIL
-
121TP-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
131S4-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1490110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
155S7-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
1690445-14020-00 HOSE (L65)HOSE (L65)
-
1791312-06008-00 BOLTBOLT
-
1890464-09129-00 CLAMPCLAMP
-
1990464-09008-00 CLAMPCLAMP
-
201TP-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
211TP-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
224D9-81168-00-00 ...O-RING...O-RING
-
2390110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
241TP-81948-00-00 BRACKETBRACKET
-
2599530-08012-00 PIN, DOWELPIN, DOWEL
-
2690110-06300-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
274P9-83591-00-00 THERMO UNITTHERMO UNIT
-
2890201-10128-00 WASHER, PLATEWASHER, PLATE
-
295YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
301TP-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
3190464-13227-00 CLAMPCLAMP
-
3298502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
331TP-81443-00-00 CLAMP, LEAD 1CLAMP, LEAD 1
-
3490464-20258-00 CLAMPCLAMP
-
355S7-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
362S3-83371-00-00 HORNHORN
-
3790105-082A5-00 BOLT, FLANGEBOLT, FLANGE
