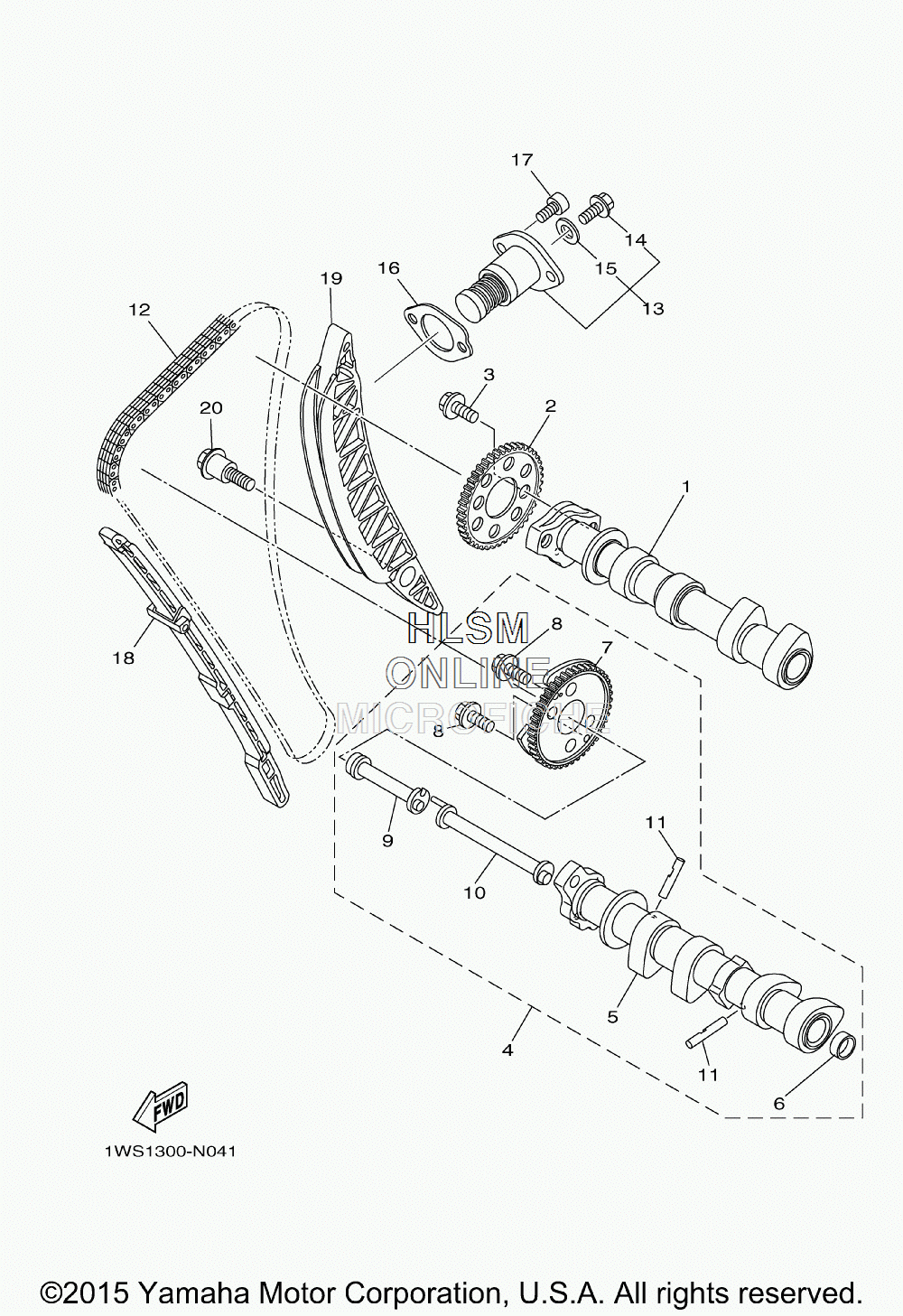

CAMSHAFT W/ CHAIN для Yamaha FZ-07 - 2015 года выпуска
-
№АртикулНазвание
-
11WS-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
22C0-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
390105-07006-00 BOLT, FLANGEBOLT, FLANGE
-
41WS-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
51WS-12181-00-00 ...CAMSHAFT 2...CAMSHAFT 2
-
690331-16001-00 ...PLUG...PLUG
-
71WS-12280-00-00 ...DECOMPRESSION ASSY...DECOMPRESSION ASSY
-
890105-07006-00 ...BOLT, FLANGE...BOLT, FLANGE
-
91WS-12247-00-00 ...SHAFT, TENSIONER...SHAFT, TENSIONER
-
101WS-12257-00-00 ...SHAFT 2...SHAFT 2
-
111PD-12288-00-00 ...CAM, DECOMPRESSION...CAM, DECOMPRESSION
-
1294591-61134-00 CHAINCHAIN
-
131WS-12210-01-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
145EL-12228-00-00 ...BOLT...BOLT
-
155SL-12214-00-00 ...GASKET...GASKET
-
161WS-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1790110-06396-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
181WS-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
191WS-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
2090109-06295-00 BOLTBOLT
