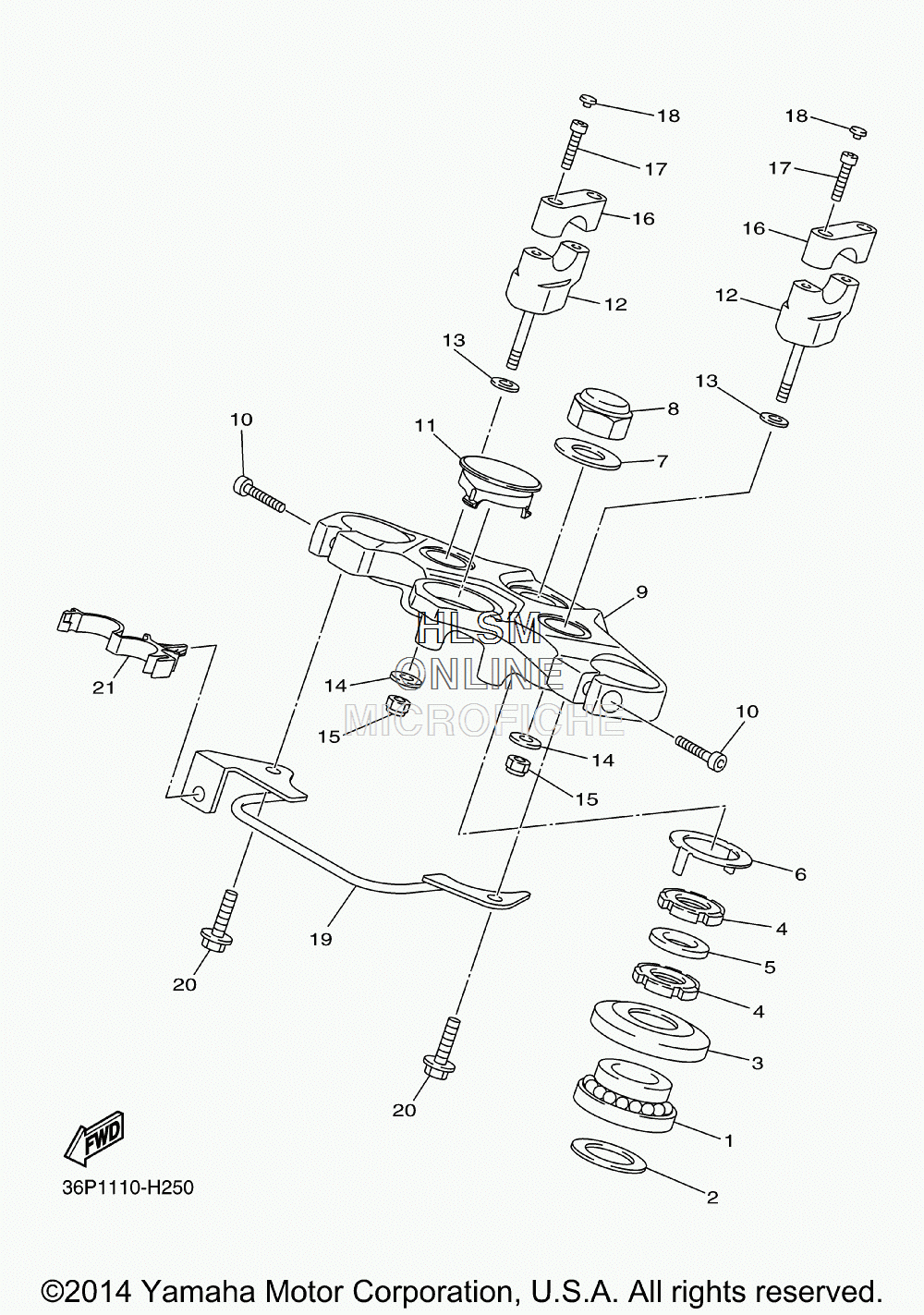

STEERING для Yamaha FZ-6R - 2015 года выпуска
-
№АртикулНазвание
-
193399-99931-00 BEARINGBEARING
-
290202-24190-00 WASHER, PLATEWASHER, PLATE
-
31W1-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
490179-25004-00 NUTNUT
-
590202-26142-00 WASHER, PLATEWASHER, PLATE
-
626H-23418-01-00 WASHER, SPECIALWASHER, SPECIAL
-
790201-220T0-00 WASHER, PLATEWASHER, PLATE
-
890176-22081-00 NUT, CROWNNUT, CROWN
-
920S-W2341-30-00 CROWN, HANDLECROWN, HANDLE
-
1091312-08030-00 BOLTBOLT
-
1136P-82552-00-00 CAP, SWITCHCAP, SWITCH
-
1220S-23442-20-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1392902-10200-00 WASHERWASHER
-
1490201-10141-00 WASHER, PLATEWASHER, PLATE
-
1595602-10100-00 NUT, UNUT, U
-
164H7-23441-01-P6 HOLDER, HANDLE UPPER (MBL2)HOLDER, HANDLE UPPER (MBL2)
-
1791312-08030-00 BOLTBOLT
-
18341-23469-00-00 CAP, BOLTCAP, BOLT
-
1936P-23318-00-00 HOLDER, CABLE 1HOLDER, CABLE 1
-
2095802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2190464-16006-00 CLAMPCLAMP
