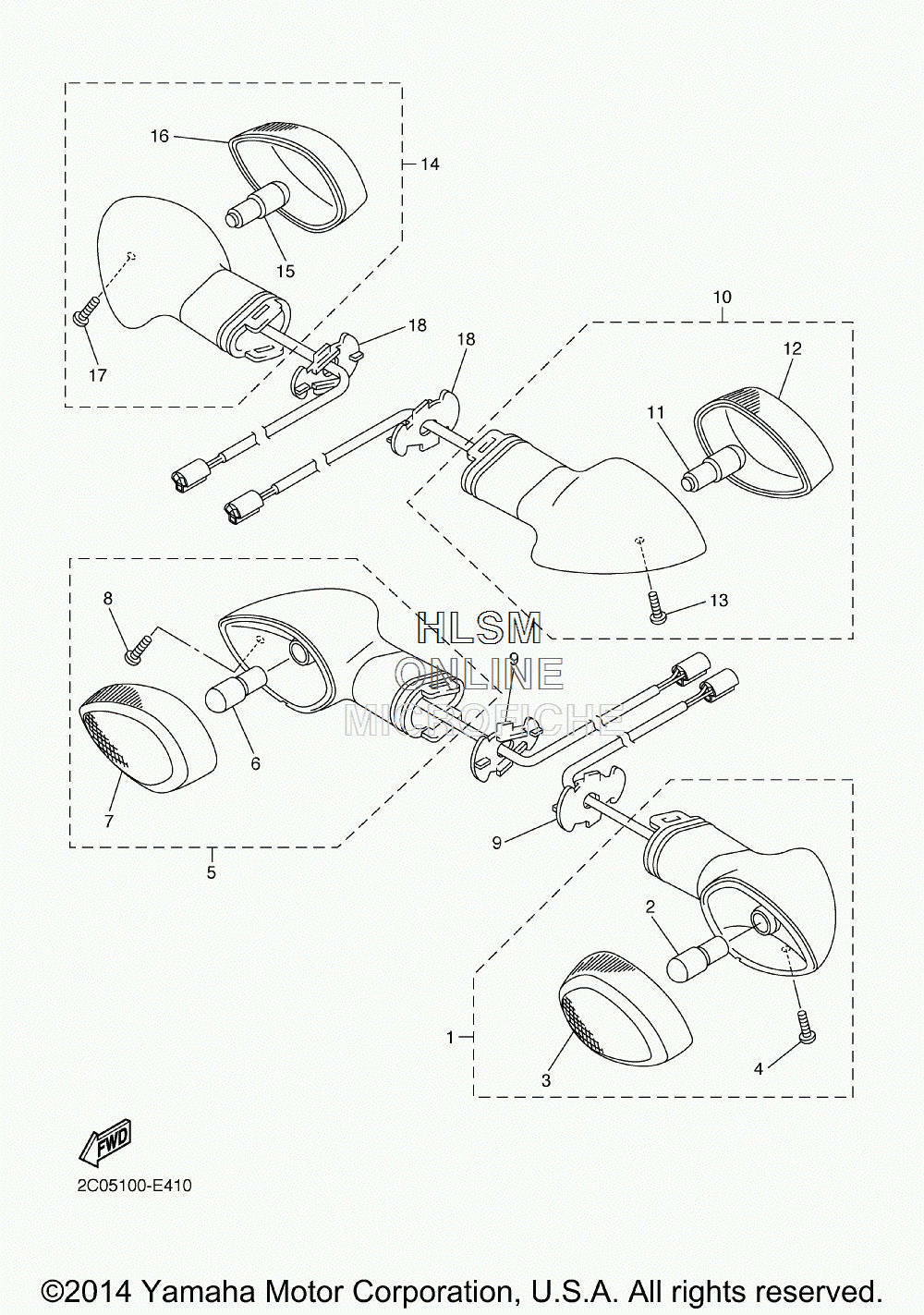

FLASHER LIGHT для Yamaha FZ1 - 2015 года выпуска
-
№АртикулНазвание
-
15PW-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
25GJ-83331-00-00 ...BULB, FLASHER (12V-21/5W T20)...BULB, FLASHER (12V-21/5W T20)
-
35PW-8333A-10-00 ...LENS COMP 1...LENS COMP 1
-
497706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
55PW-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
65GJ-83331-00-00 ...BULB, FLASHER (12V-21/5W T20)...BULB, FLASHER (12V-21/5W T20)
-
75PW-8334A-10-00 ...LENS COMP 2...LENS COMP 2
-
897706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
92D1-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
103C3-83330-30-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
115PW-83331-00-00 ...BULB (12V-21/5W T20)...BULB (12V-21/5W T20)
-
125PW-8334A-10-00 ...LENS COMP 2...LENS COMP 2
-
1397706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
143C3-83340-30-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
155PW-83331-00-00 ...BULB (12V-21/5W T20)...BULB (12V-21/5W T20)
-
165PW-8333A-10-00 ...LENS COMP 1...LENS COMP 1
-
1797706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
182D1-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
