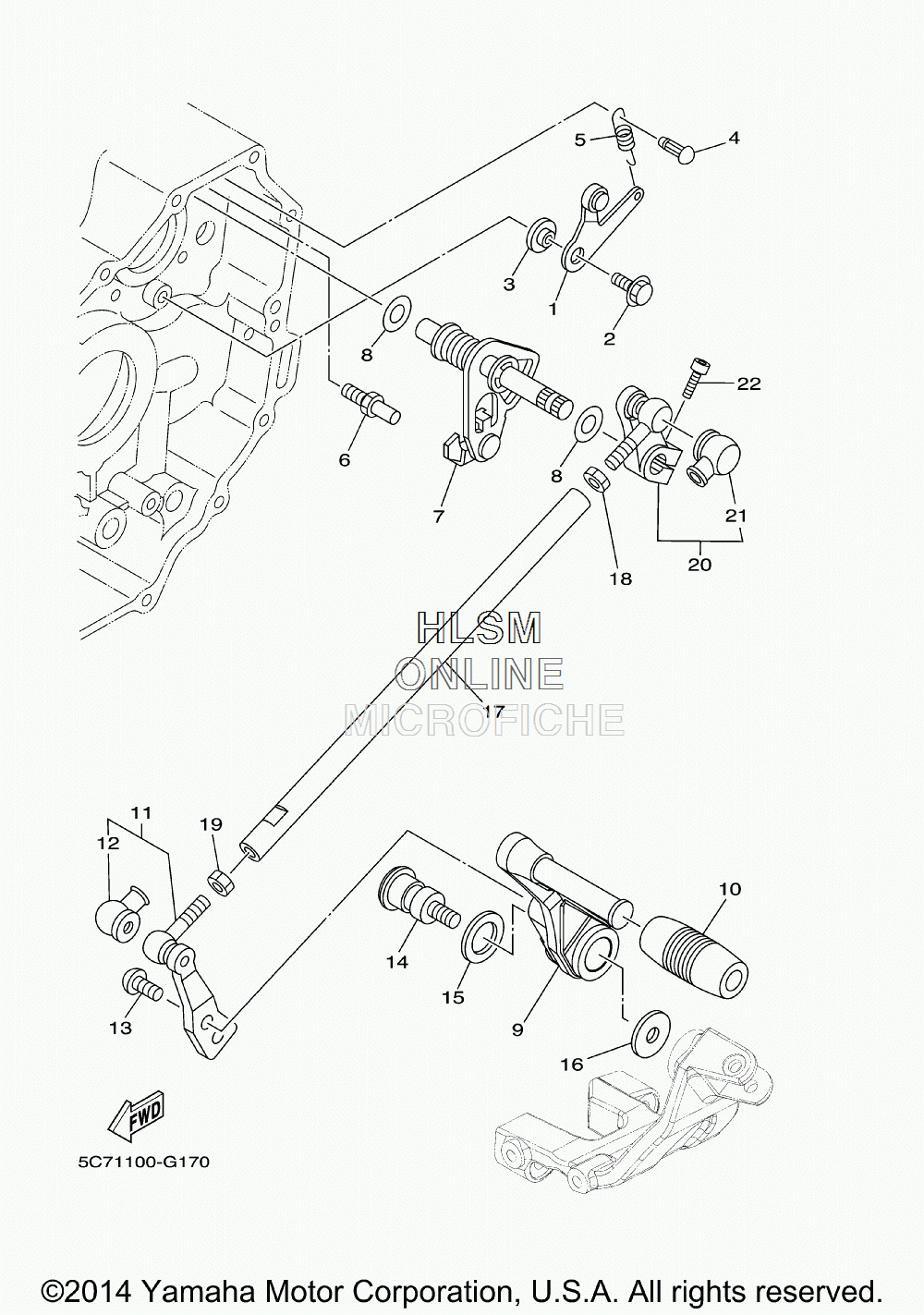

SHIFT SHAFT для Yamaha RAIDER - 2015 года выпуска
-
№АртикулНазвание
-
11D7-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
290159-06027-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
34NX-18175-00-00 SPACERSPACER
-
4132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
55C7-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
61D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
71D7-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
890201-127E1-00 WASHER, PLATEWASHER, PLATE
-
95C7-18111-00-00 PEDAL, SHIFTPEDAL, SHIFT
-
105VN-18113-00-00 COVER, SHIFT PEDALCOVER, SHIFT PEDAL
-
115C7-18164-00-00 KNOB, SHIFTERKNOB, SHIFTER
-
122H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
1390111-08048-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
145C7-27434-00-00 BOLTBOLT
-
1590201-18025-00 WASHER, PLATEWASHER, PLATE
-
1690201-08061-00 WASHER, PLATEWASHER, PLATE
-
175C7-18115-00-00 ROD, SHIFTROD, SHIFT
-
1895304-08700-00 NUTNUT
-
1990170-08358-00 NUTNUT
-
205C7-18150-00-00 SHIFT LEVER ASSYSHIFT LEVER ASSY
-
212H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
2291314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
