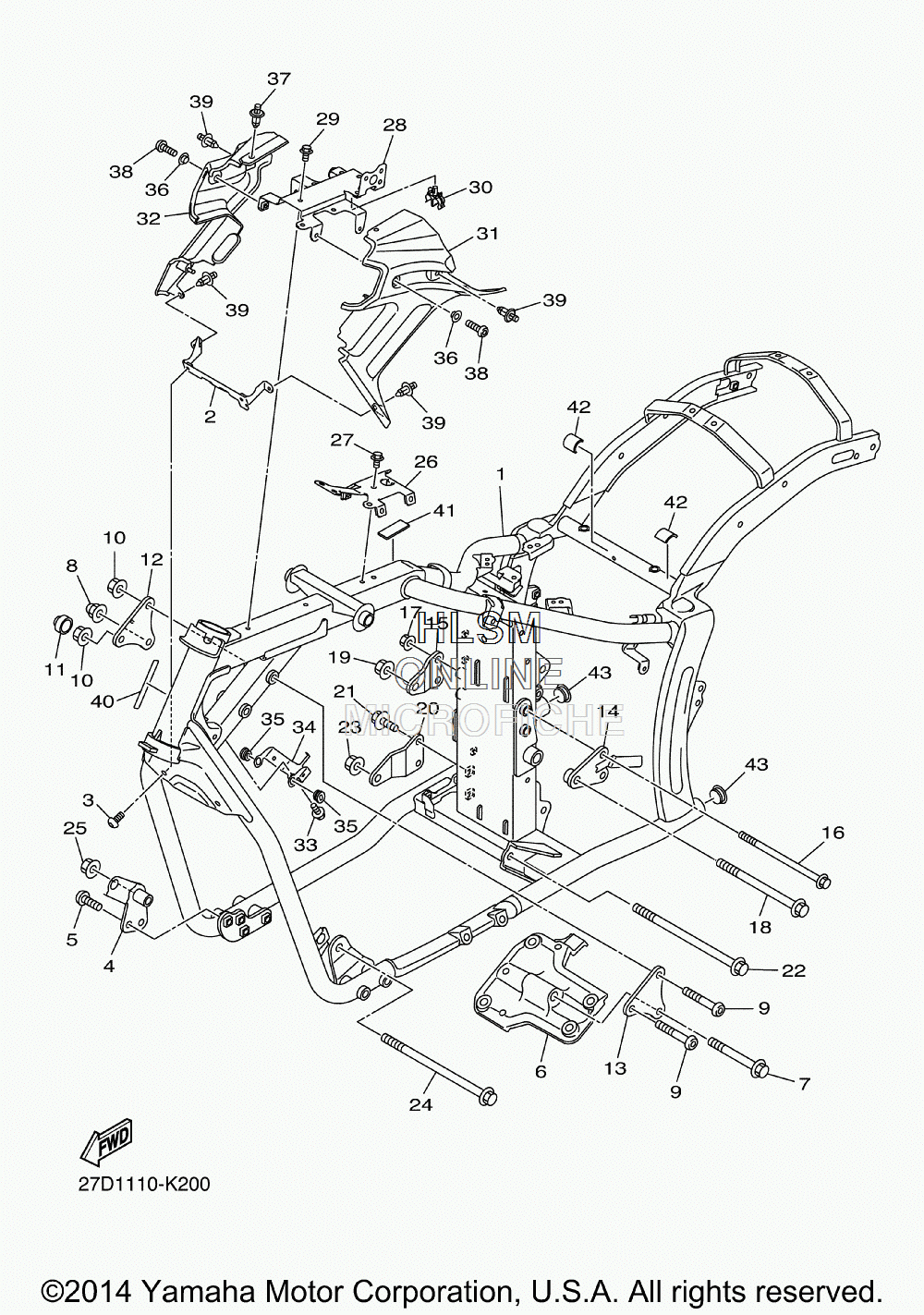

FRAME для Yamaha STRYKER (DARK RED) - 2015 года выпуска
-
№АртикулНазвание
-
127D-21110-00-00 FRAME COMP.FRAME COMP.
-
227D-2119M-00-00 BRACKET, 10BRACKET, 10
-
392017-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
427D-21387-00-00 STAY, ENGINE 7STAY, ENGINE 7
-
590111-10047-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
627D-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
790105-12083-00 BOLT, FLANGEBOLT, FLANGE
-
890176-12003-00 NUT, CROWNNUT, CROWN
-
990111-10052-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
115YU-2143A-00-00 CAPCAP
-
1227D-2114V-00-00 BRACKET 11BRACKET 11
-
1327D-2116B-00-00 BRKT.BRKT.
-
1427D-21318-00-00 STAY, ENGINE 4STAY, ENGINE 4
-
1527D-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1690105-10391-00 BOLT, FLANGEBOLT, FLANGE
-
1795602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890105-12080-00 BOLT, FLANGEBOLT, FLANGE
-
1990185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
203D8-21316-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
2190105-10195-00 BOLT, FLANGEBOLT, FLANGE
-
2290105-12044-00 BOLT, FLANGEBOLT, FLANGE
-
2390185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2490105-12045-00 BOLT, FLANGEBOLT, FLANGE
-
2590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2627D-21359-00-00 BRACKET, COILBRACKET, COIL
-
2795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2827D-21415-00-00 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
2995022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3090464-11007-00 CLAMPCLAMP
-
3127D-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
3227D-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
3395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
3427D-21322-00-00 STAY, SIDE COVER 2STAY, SIDE COVER 2
-
3590480-01022-00 GROMMETGROMMET
-
3690560-06244-00 SPACERSPACER
-
3790269-07007-00 RIVETRIVET
-
3890149-06298-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
3990269-05079-00 RIVETRIVET
-
403D8-2117G-00-00 PROTECTORPROTECTOR
-
415H0-8235Y-M0-00 DAMPERDAMPER
-
423MA-27491-00-00 PROTECTORPROTECTOR
-
4390338-27007-00 PLUGPLUG
