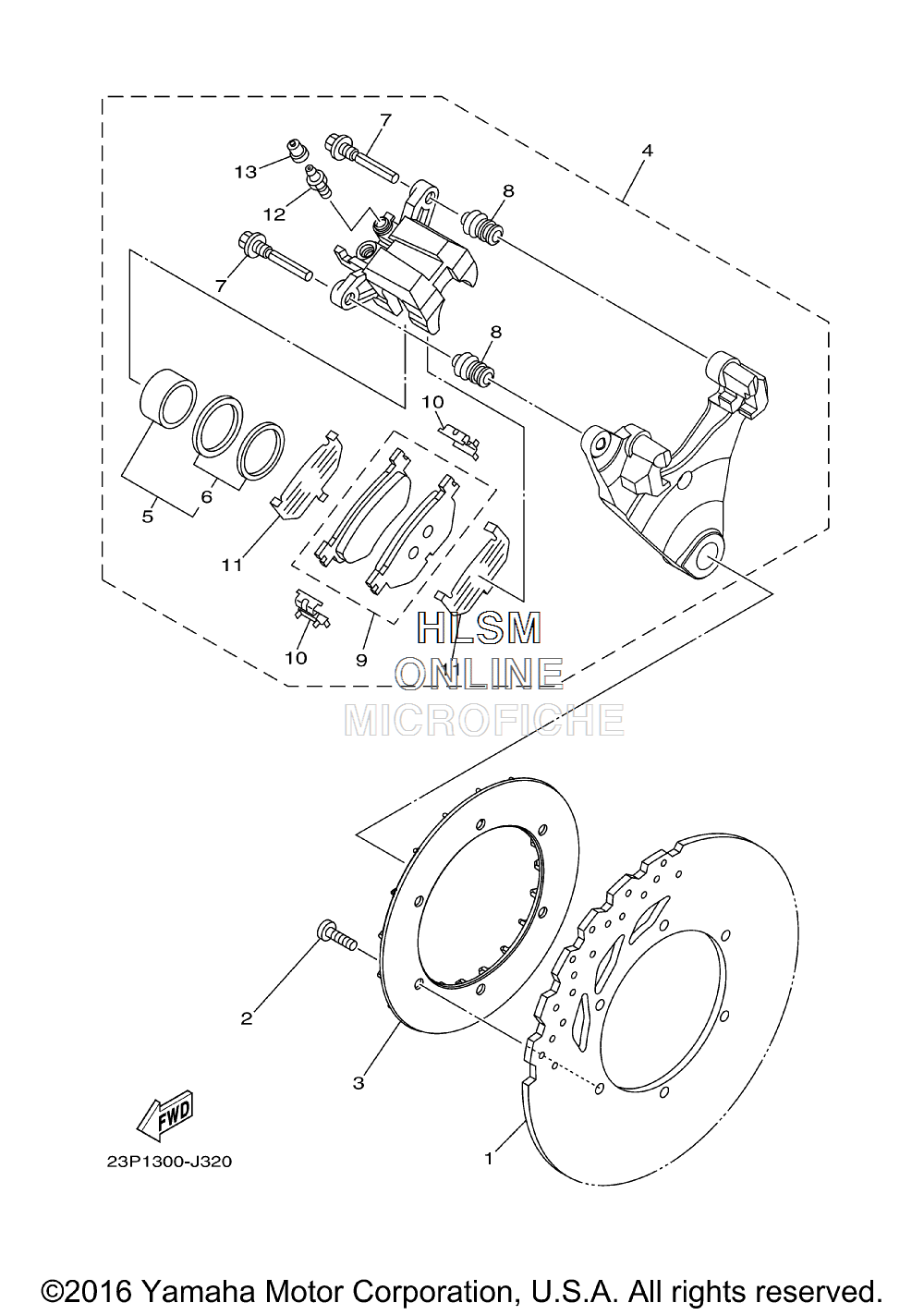

BRAKE - REAR CALIPER для Yamaha SUPER TENERE ES [XTZ12EFCR] - 2015 года выпуска
-
№АртикулНазвание
-
123P-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290149-08024-00 SCREWSCREW
-
323P-2581A-10-00 PLATE, DISCPLATE, DISC
-
423P-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
51D7-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
65JW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
75JW-25914-10-00 ...PIN, SLIDE...PIN, SLIDE
-
84TT-25937-00-00 ...BOOT 2...BOOT 2
-
91D7-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
105JW-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
115JW-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
125GM-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
131D7-25825-00-00 ...CAP...CAP
