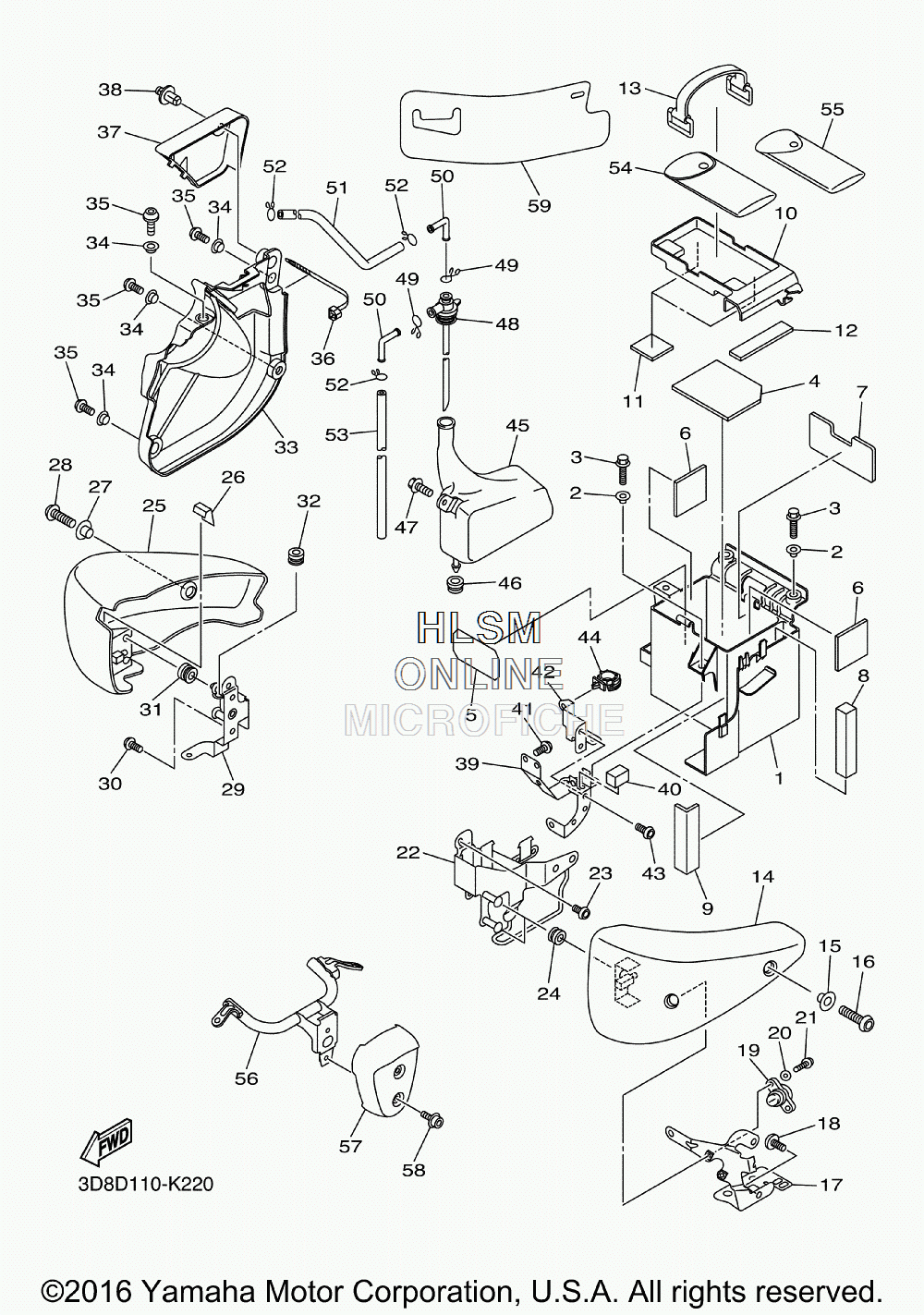

SIDE COVER для Yamaha V STAR 1300 DELUXE (RED COCKTAIL) - 2015 года выпуска
-
№АртикулНазвание
-
13D8-2177G-02-00 BOX, BATTERYBOX, BATTERY
-
290387-06267-00 COLLARCOLLAR
-
395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
451Y-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
55PX-21652-00-00 PROTECTORPROTECTOR
-
63D8-2174Y-00-00 DAMPERDAMPER
-
73D8-2174X-00-00 DAMPERDAMPER
-
83D8-21779-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
93D8-2177M-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
103D8-28173-10-00 BOX, TOOLBOX, TOOL
-
112GH-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
121AE-2834E-00-00 DAMPER 3DAMPER 3
-
133L8-82131-01-00 BAND, BATTERYBAND, BATTERY
-
143D8-21711-00-PH COVER, SIDE 1 (VRC1)COVER, SIDE 1 (VRC1)
-
1590387-06173-00 COLLARCOLLAR
-
1690149-06023-00 SCREWSCREW
-
173D8-2175T-00-00 BRACKET 1BRACKET 1
-
1897702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
195PX-W2470-00-00 ROTOR SETROTOR SET
-
2090201-06034-00 WASHER, PLATEWASHER, PLATE
-
2190105-06639-00 BOLT, FLANGEBOLT, FLANGE
-
223D8-2172M-10-00 BRACKET 3BRACKET 3
-
2392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2490480-12550-00 GROMMETGROMMET
-
253D8-21721-00-PH COVER, SIDE 2 (VRC1)COVER, SIDE 2 (VRC1)
-
263MA-27491-00-00 PROTECTORPROTECTOR
-
2790387-06173-00 COLLARCOLLAR
-
2890111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
293D8-2172N-00-00 BRACKET 4BRACKET 4
-
3092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3190480-12550-00 GROMMETGROMMET
-
3290480-18418-00 GROMMETGROMMET
-
333D8-21741-10-00 COVER, SIDE 4COVER, SIDE 4
-
3490387-06184-00 COLLARCOLLAR
-
3590111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3690464-15195-00 CLAMPCLAMP
-
373D8-2176E-10-00 PLATEPLATE
-
3890269-07077-00 RIVETRIVET
-
393D8-2172K-01-00 BRACKET 1BRACKET 1
-
403D8-21778-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
4192012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
423D8-2172L-00-00 BRACKET 2BRACKET 2
-
4392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4490464-17008-00 CLAMPCLAMP
-
453D8-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
4690480-13567-00 GROMMETGROMMET
-
4790119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
483D8-21875-00-00 CAPCAP
-
4990467-11019-00 CLIPCLIP
-
5026H-21828-00-00 ELBOWELBOW
-
513D8-21826-00-00 PIPE, BREATHERPIPE, BREATHER
-
5290467-08003-00 CLIPCLIP
-
5390445-09097-00 HOSE (L250)HOSE (L250)
-
543D8-28100-10-00 TOOL KITTOOL KIT
-
553D8-28110-00-00 TOOL KIT, 2TOOL KIT, 2
-
563D8-1541E-00-00 STAY, COVERSTAY, COVER
-
575YS-14283-00-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
5890110-05057-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5927D-24796-00-00 COVERCOVER
