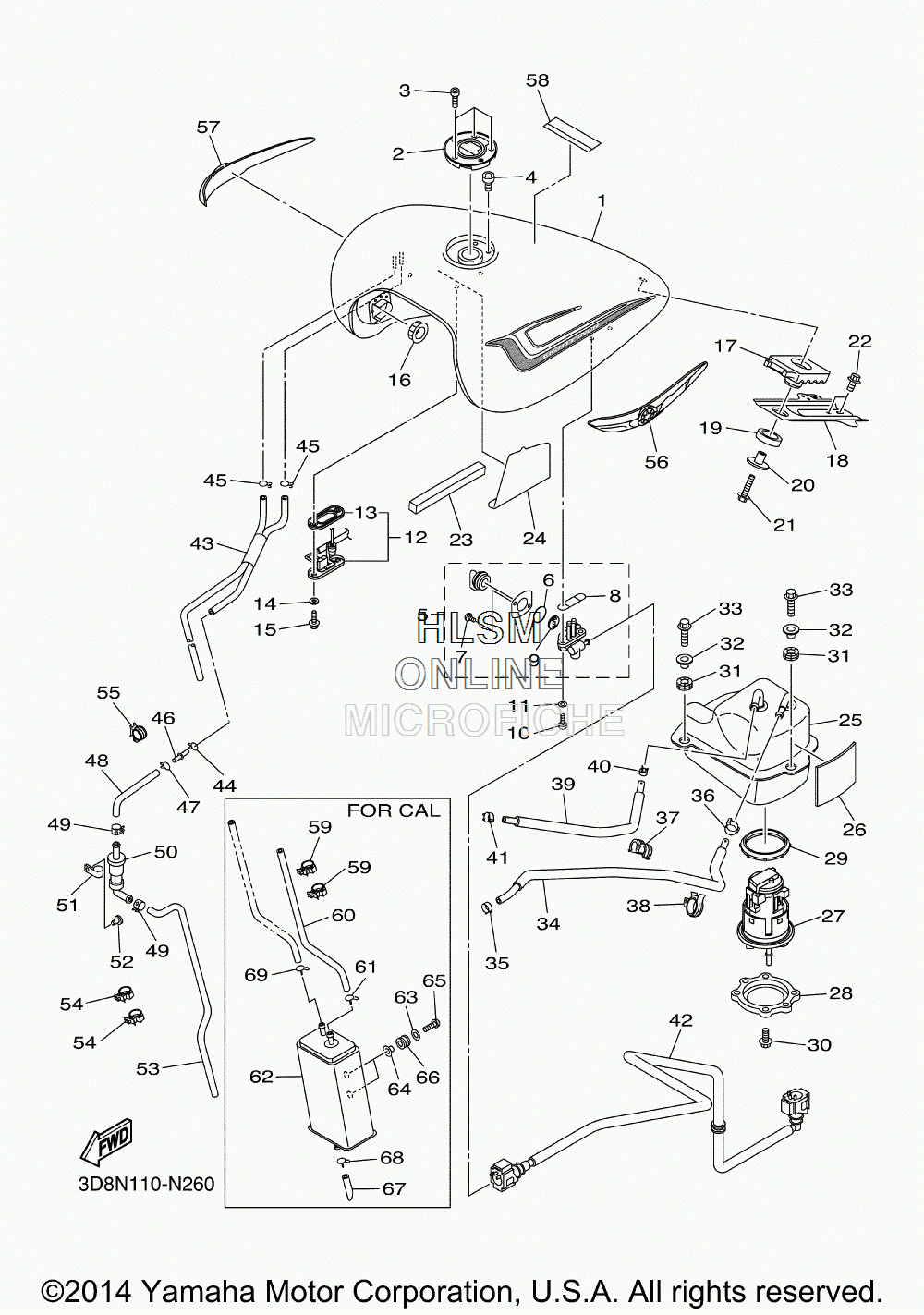

FUEL TANK для Yamaha V STAR 1300 - 2015 года выпуска
-
№АртикулНазвание
-
13D8-Y2410-00-W3 FUEL TANK COMP. (SM1)FUEL TANK COMP. (SM1)
-
23D8-24602-10-00 CAP ASSYCAP ASSY
-
390110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
491312-05010-00 BOLTBOLT
-
54JT-24500-20-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
63AJ-24534-10-00 ...SEAL, COCK...SEAL, COCK
-
798507-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
84X8-24512-10-00 ...GASKET...GASKET
-
93AC-24523-00-00 ...VALVE PACKING...VALVE PACKING
-
1090149-06108-00 SCREWSCREW
-
1190202-05193-00 WASHER, PLATEWASHER, PLATE
-
123D8-85752-10-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
133D8-85753-00-00 ...GASKET, SENDER UNIT...GASKET, SENDER UNIT
-
1490202-05193-00 WASHER, PLATEWASHER, PLATE
-
1595812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
162YK-24181-10-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
171D7-24182-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
183D8-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
194TR-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
2090387-06177-00 COLLARCOLLAR
-
2195812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2295812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
233XV-28217-00-00 DAMPER 1DAMPER 1
-
243D8-2476V-00-00 PROTECTOR,2PROTECTOR,2
-
253D8-244A0-00-00 PUMP CASE COMP.PUMP CASE COMP.
-
263D8-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
273D8-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
283D8-24491-10-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2919B-24486-01-00 O-RINGO-RING
-
3090110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
313D8-24185-00-00 DAMPER, LOCATING 5DAMPER, LOCATING 5
-
3290387-062U9-00 COLLARCOLLAR
-
3395812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
343D8-24311-11-00 PIPE, FUEL 1PIPE, FUEL 1
-
3590467-12004-00 CLIPCLIP
-
3690467-130A1-00 CLIPCLIP
-
3790464-19001-00 CLAMPCLAMP
-
3890464-20191-00 CLAMPCLAMP
-
393D8-24312-11-00 PIPE 2PIPE 2
-
4090467-160A2-00 CLIPCLIP
-
415PX-2411M-00-00 CLIPCLIP
-
423D8-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
433D8-2318J-01-00 HOSE ASSYHOSE ASSY
-
4490467-09103-00 CLIPCLIP
-
4590467-09103-00 CLIPCLIP
-
464XY-14568-00-00 JOINTJOINT
-
4790467-09103-00 CLIPCLIP
-
483D8-24324-00-00 PIPE 13PIPE 13
-
4990467-09001-00 CLIPCLIP
-
505RB-24180-00-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
5190464-15014-00 CLAMPCLAMP
-
5290269-05005-00 RIVETRIVET
-
5390445-10040-00 HOSEHOSE
-
5490464-20191-00 CLAMPCLAMP
-
5590464-15192-00 CLAMPCLAMP
-
563D8-2416B-00-00 EMBLEMEMBLEM
-
573D8-2417B-00-00 EMBLEMEMBLEM
-
581TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
5990464-25217-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
603D8-2486A-01-00 PIPE 1 (CALIF ONLY)PIPE 1 (CALIF ONLY)
-
6190467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
625PX-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
6390201-06023-00 WASHER, PLATE (CALIF ONLY)WASHER, PLATE (CALIF ONLY)
-
6490387-062L2-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
6590111-06067-00 BOLT, HEX. SOCKET BUTTON (CALIF ONLY)BOLT, HEX. SOCKET BUTTON (CALIF ONLY)
-
6690480-13163-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
673D8-24325-00-00 PIPE 14 (CALIF ONLY)PIPE 14 (CALIF ONLY)
-
6890467-10041-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
6990467-09103-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
