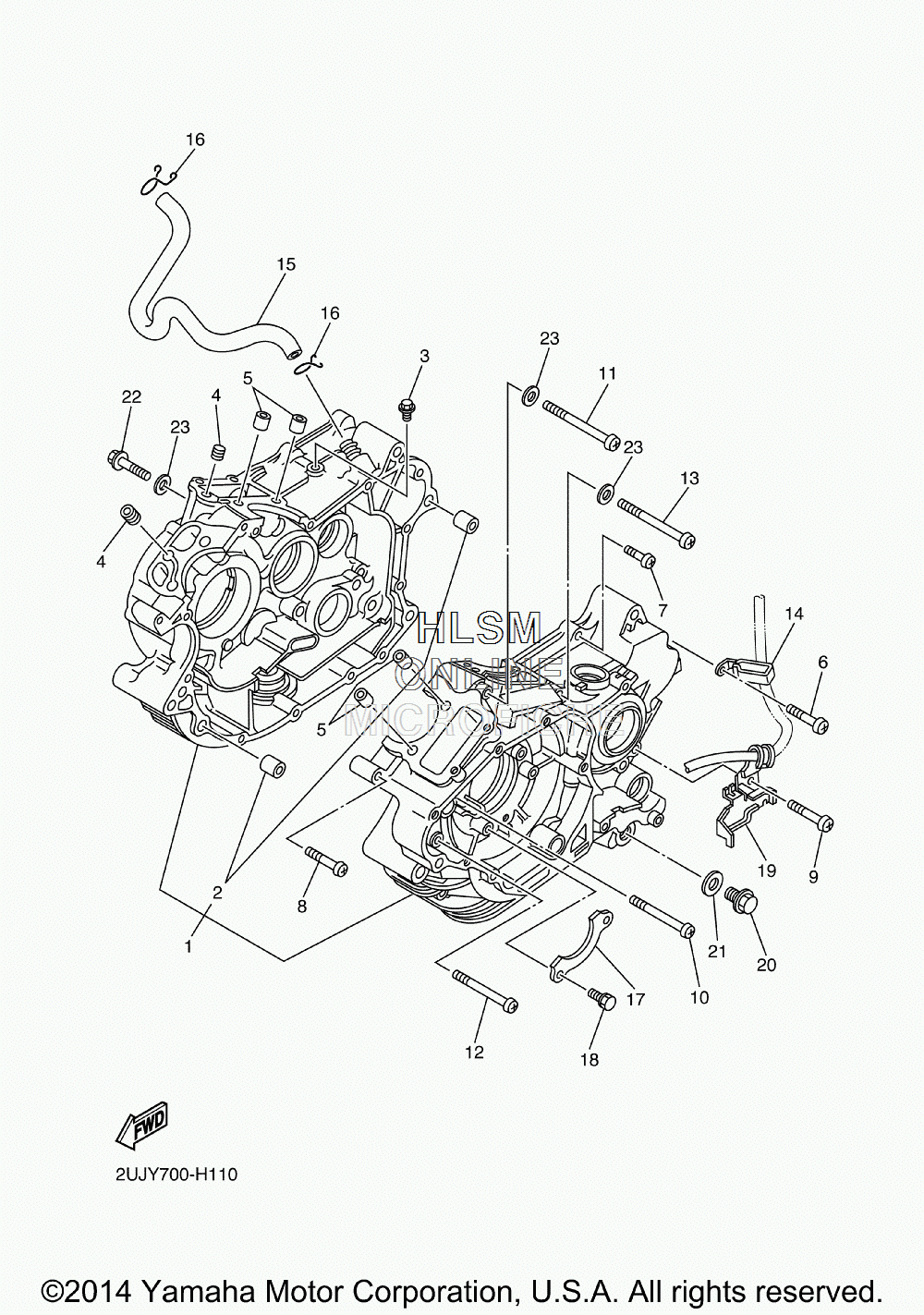

CRANKCASE для Yamaha V STAR 250 - 2015 года выпуска
-
№АртикулНазвание
-
12UJ-15100-03-00 CRANKCASE ASSYCRANKCASE ASSY
-
299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
390105-06048-00 BOLT, FLANGEBOLT, FLANGE
-
42UJ-15138-00-00 NOZZLE 1NOZZLE 1
-
599530-10114-00 PIN, DOWELPIN, DOWEL
-
698504-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
798504-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
898504-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
998507-06060-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1098507-06070-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1198504-06070-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1298507-06080-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1398504-06080-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1490465-08277-00 CLAMPCLAMP
-
152UJ-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1690467-14015-00 CLIPCLIP
-
172UJ-12279-00-00 PLATEPLATE
-
1890119-06238-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990465-08060-00 CLAMPCLAMP
-
2090340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
21214-11198-01-00 GASKETGASKET
-
2290153-06029-00 SCREW, HEXAGONSCREW, HEXAGON
-
2390430-06014-00 GASKETGASKET
