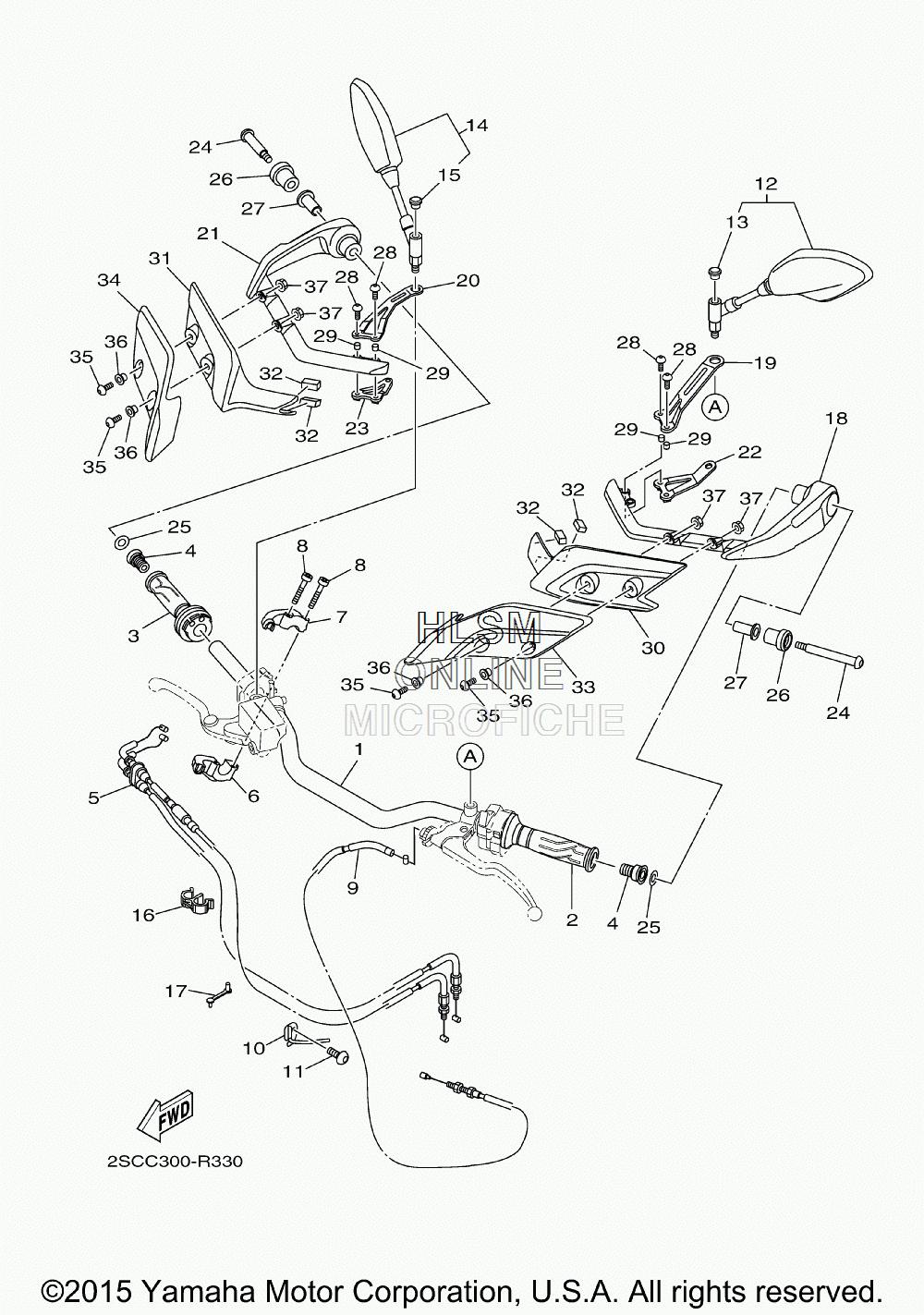

HANDLEBAR W/ CABLES для Yamaha FJ-09 [FJ09GB] - 2016 года выпуска
-
№АртикулНазвание
-
12PP-26111-00-00 HANDLEBARHANDLEBAR
-
25JW-26241-00-00 GRIP (LEFT)GRIP (LEFT)
-
35JW-26240-00-00 GRIP ASSYGRIP ASSY
-
42PP-26246-00-00 END, GRIPEND, GRIP
-
52PP-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
64KG-26281-00-00 CAP GRIP UPPERCAP GRIP UPPER
-
73XW-26282-01-00 CAPGRIP LOWERCAPGRIP LOWER
-
891317-05035-00 BOLTBOLT
-
92PP-26335-01-00 CABLE, CLUTCHCABLE, CLUTCH
-
101RC-23857-00-00 HOLDERHOLDER
-
1192017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
121RC-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
1323P-26133-00-00 ...CAP...CAP
-
141RC-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
1523P-26133-00-00 ...CAP...CAP
-
1690464-07M20-00 CLAMPCLAMP
-
1790464-05003-00 CLAMPCLAMP
-
182PP-26141-00-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
192PP-26223-00-00 BRACKET, HANDLE 1BRACKET, HANDLE 1
-
202PP-2622A-00-00 BRACKET, HANDLE 3BRACKET, HANDLE 3
-
212PP-26142-00-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
222PP-26224-00-00 BRACKET, HANDLE 2BRACKET, HANDLE 2
-
232PP-2622E-00-00 BRACKET, HANDLE 4BRACKET, HANDLE 4
-
2492014-08080-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2592902-08200-00 WASHERWASHER
-
262PP-2624B-00-00 END, GRIP 2END, GRIP 2
-
2790387-08004-00 COLLARCOLLAR
-
2892014-05020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2990387-05025-00 COLLARCOLLAR
-
302PP-26372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
312PP-2637A-00-00 COVER, HANDLE LEVER 2COVER, HANDLE LEVER 2
-
3213S-28415-00-00 DAMPER 1DAMPER 1
-
332PP-26143-00-P1 COVER, HANDLE UPPER 1 (FOR MS1)COVER, HANDLE UPPER 1 (FOR MS1)
-
332PP-26143-00-P2 COVER, HANDLE UPPER 1 (FOR SMX)COVER, HANDLE UPPER 1 (FOR SMX)
-
342PP-26145-00-P1 COVER, HANDLE UPPER 2 (FOR MS1)COVER, HANDLE UPPER 2 (FOR MS1)
-
342PP-26145-00-P2 COVER, HANDLE UPPER 2 (FOR SMX)COVER, HANDLE UPPER 2 (FOR SMX)
-
3592014-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3690387-05042-00 COLLARCOLLAR
-
3795707-05500-00 NUT, FLANGENUT, FLANGE
