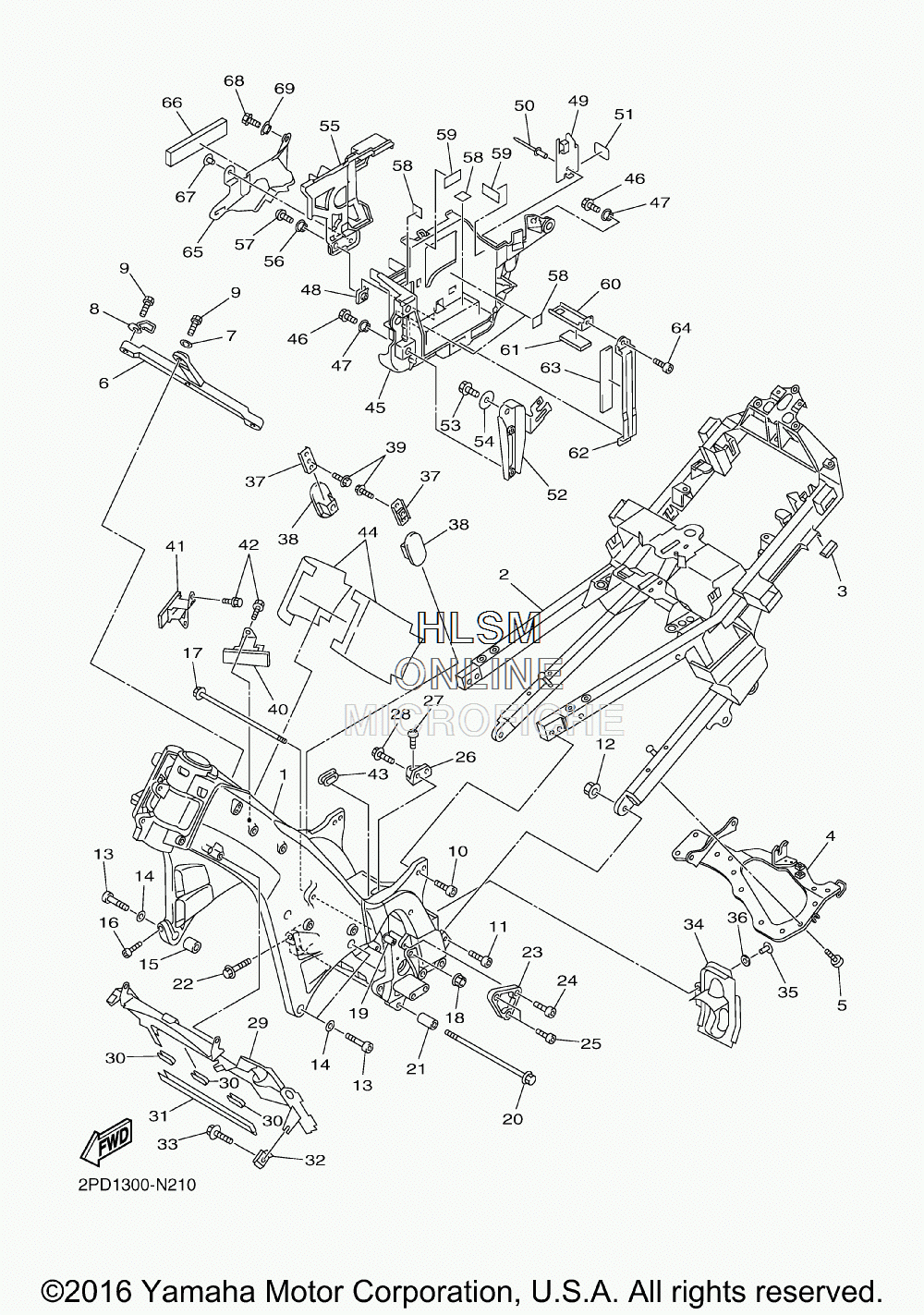

FRAME для Yamaha FJR1300ES [FJR13ESG] - 2016 года выпуска
-
№АртикулНазвание
-
13P6-21110-00-00 FRAME COMP.FRAME COMP.
-
22PD-21190-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
33P6-21652-00-00 PROTECTORPROTECTOR
-
41MD-2115A-00-00 MEMBER 1MEMBER 1
-
590149-06022-00 SCREWSCREW
-
63P6-21119-00-00 CROSS-TUBECROSS-TUBE
-
790201-100L3-00 WASHER, PLATEWASHER, PLATE
-
81MC-21339-00-00 GUIDE, WIREGUIDE, WIRE
-
995812-10030-00 BOLT, FLANGEBOLT, FLANGE
-
1090110-08076-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1191312-10030-00 BOLTBOLT
-
1295602-10200-00 NUT, U FLANGENUT, U FLANGE
-
1391312-12055-00 BOLTBOLT
-
1492902-12600-00 WASHER, PLATEWASHER, PLATE
-
1590387-1312P-00 COLLARCOLLAR
-
1691312-08030-00 BOLTBOLT
-
1790105-10416-00 BOLT, FLANGEBOLT, FLANGE
-
1890179-10025-00 NUTNUT
-
194C8-21495-00-00 BOLT, ENGINE ADJUSTINGBOLT, ENGINE ADJUSTING
-
2090105-10730-00 BOLT, FLANGEBOLT, FLANGE
-
2190560-10364-00 SPACERSPACER
-
2295022-08035-00 BOLT, FLANGEBOLT, FLANGE
-
233P6-21315-00-00 STAY, ENGINE 1STAY, ENGINE 1
-
2491312-10020-00 BOLTBOLT
-
2591312-08016-00 BOLTBOLT
-
265JW-21316-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
2790111-10047-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2890105-08307-00 BOLT, FLANGEBOLT, FLANGE
-
293P6-2137Y-00-00 GUIDE, AIRGUIDE, AIR
-
303P6-21269-00-00 SEALSEAL
-
313P6-21469-00-00 SEAL, AIRSEAL, AIR
-
3290183-06053-00 NUT, SPRINGNUT, SPRING
-
3390119-06172-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
343P6-2147J-00-00 COVER, SHAFT 1COVER, SHAFT 1
-
3590269-07008-00 RIVETRIVET
-
3690202-06058-00 WASHER, PLATEWASHER, PLATE
-
375JW-2118U-00-00 BRACKET 3BRACKET 3
-
385JW-2113N-00-00 BRACKET, INNER 1BRACKET, INNER 1
-
3995022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
405JW-2113R-00-00 BRACKET, INNER 2BRACKET, INNER 2
-
415JW-2113R-10-00 BRACKET, INNER 2BRACKET, INNER 2
-
4290105-06078-00 BOLT, FLANGEBOLT, FLANGE
-
435JW-2143A-00-00 CAPCAP
-
445JW-21852-00-00 DAMPERDAMPER
-
451MC-28321-00-00 STAY 1STAY 1
-
4695822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
4790387-06107-00 COLLARCOLLAR
-
4890183-05076-00 NUT, SPRINGNUT, SPRING
-
491MC-2831E-00-00 STAY, GUIDE 1STAY, GUIDE 1
-
5090267-40076-00 RIVETRIVET
-
515YU-22358-00-00 SEAL 1SEAL 1
-
521MC-28396-00-00 PLATE 1PLATE 1
-
5395822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
5490201-060L5-00 WASHER, PLATEWASHER, PLATE
-
551MC-2836H-00-00 BRACKET 5BRACKET 5
-
5690387-05035-00 COLLARCOLLAR
-
5792012-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
5813S-21649-00-00 DAMPERDAMPER
-
593C5-21639-00-00 DAMPER 2DAMPER 2
-
605JW-28357-00-00 STAY 2STAY 2
-
615JW-28425-00-00 DAMPER 3DAMPER 3
-
625JW-28358-00-00 STAY 3STAY 3
-
635JW-28435-00-00 DAMPER 4DAMPER 4
-
6491312-06012-00 BOLTBOLT
-
651MC-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
663WF-15337-01-00 DAMPER 4DAMPER 4
-
6790269-05074-00 RIVETRIVET
-
6895802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
6990387-06066-00 COLLARCOLLAR
