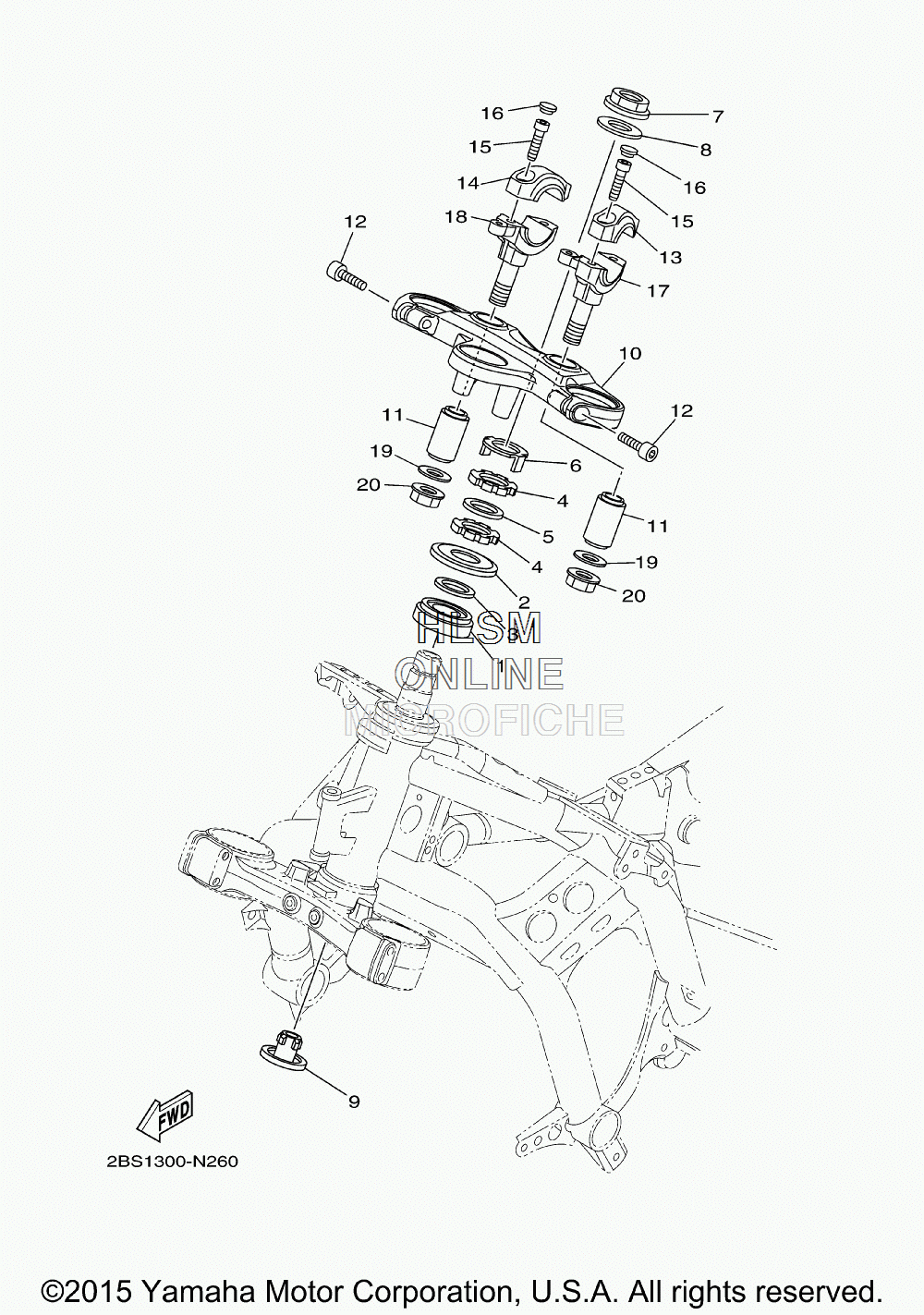

STEERING для Yamaha SUPER TENERE ES [XTZ12EGB] - 2016 года выпуска
-
№АртикулНазвание
-
193332-00078-00 BEARINGBEARING
-
223P-23416-00-00 COVER, BALL RACE 2COVER, BALL RACE 2
-
390201-282R3-00 WASHER, PLATEWASHER, PLATE
-
490179-28011-00 NUTNUT
-
590202-28216-00 WASHER, PLATEWASHER, PLATE
-
64GY-23418-00-00 WASHER, SPECIALWASHER, SPECIAL
-
72BS-23357-00-00 NUTNUT
-
890201-25019-00 WASHER, PLATEWASHER, PLATE
-
94KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
-
102BS-23435-00-00 CROWN, HANDLECROWN, HANDLE
-
115VK-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
1291312-08030-00 BOLTBOLT
-
132BS-23441-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
142BS-2344A-00-00 HOLDER, HANDLE UPPER 1HOLDER, HANDLE UPPER 1
-
1591312-08030-00 BOLTBOLT
-
1690338-08163-00 PLUG SPEC'L SHAPE (CROME)PLUG SPEC'L SHAPE (CROME)
-
172BS-24847-00-00 HOLDER 1HOLDER 1
-
182BS-24848-00-00 HOLDER 2HOLDER 2
-
1990201-10626-00 WASHER, PLATEWASHER, PLATE
-
2095602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
