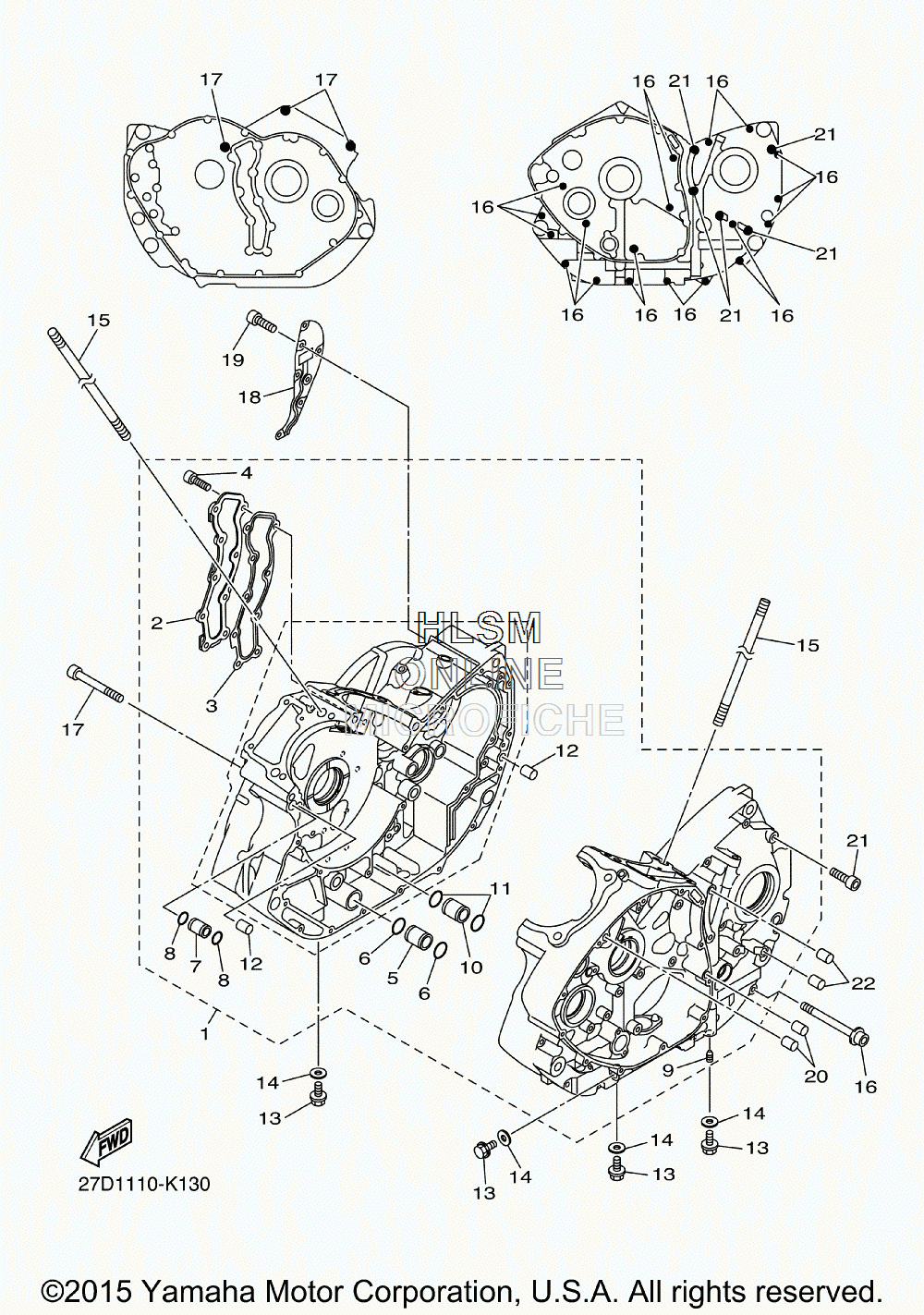

CRANKCASE для Yamaha V STAR 1300 DELUXE (WHITE) [XVS13CTFG] - 2016 года выпуска
-
№АртикулНазвание
-
13D8-15100-28-00 CRANKCASE ASSYCRANKCASE ASSY
-
23D8-15431-00-00 ...COVER, CRANKCASE 3...COVER, CRANKCASE 3
-
33D8-15462-00-00 ...GASKET, CRANKCASE COVER 3...GASKET, CRANKCASE COVER 3
-
490110-06174-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
53D8-15154-00-00 ...NOZZLE ASSY., 2...NOZZLE ASSY., 2
-
693210-18319-00 ...O-RING...O-RING
-
71D7-15138-00-00 ...NOZZLE 1...NOZZLE 1
-
893210-10003-00 ...O-RING...O-RING
-
92H7-15138-00-00 ...NOZZLE (R7)...NOZZLE (R7)
-
103D8-15155-00-00 ...NOZZLE 3...NOZZLE 3
-
1193210-22164-00 ...O-RING...O-RING
-
1299530-10116-00 ...PIN, DOWEL...PIN, DOWEL
-
1395022-10016-00 BOLT, FLANGEBOLT, FLANGE
-
1490430-10171-00 GASKETGASKET
-
1590116-12011-00 BOLT, STUDBOLT, STUD
-
1690105-06144-00 BOLT, FLANGEBOLT, FLANGE
-
1791314-10110-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
183D8-15368-00-00 SEPARATOR, OILSEPARATOR, OIL
-
1990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2099530-08012-00 PIN, DOWELPIN, DOWEL
-
2191312-08035-00 BOLTBOLT
-
2299590-10114-00 PIN, DOWELPIN, DOWEL
