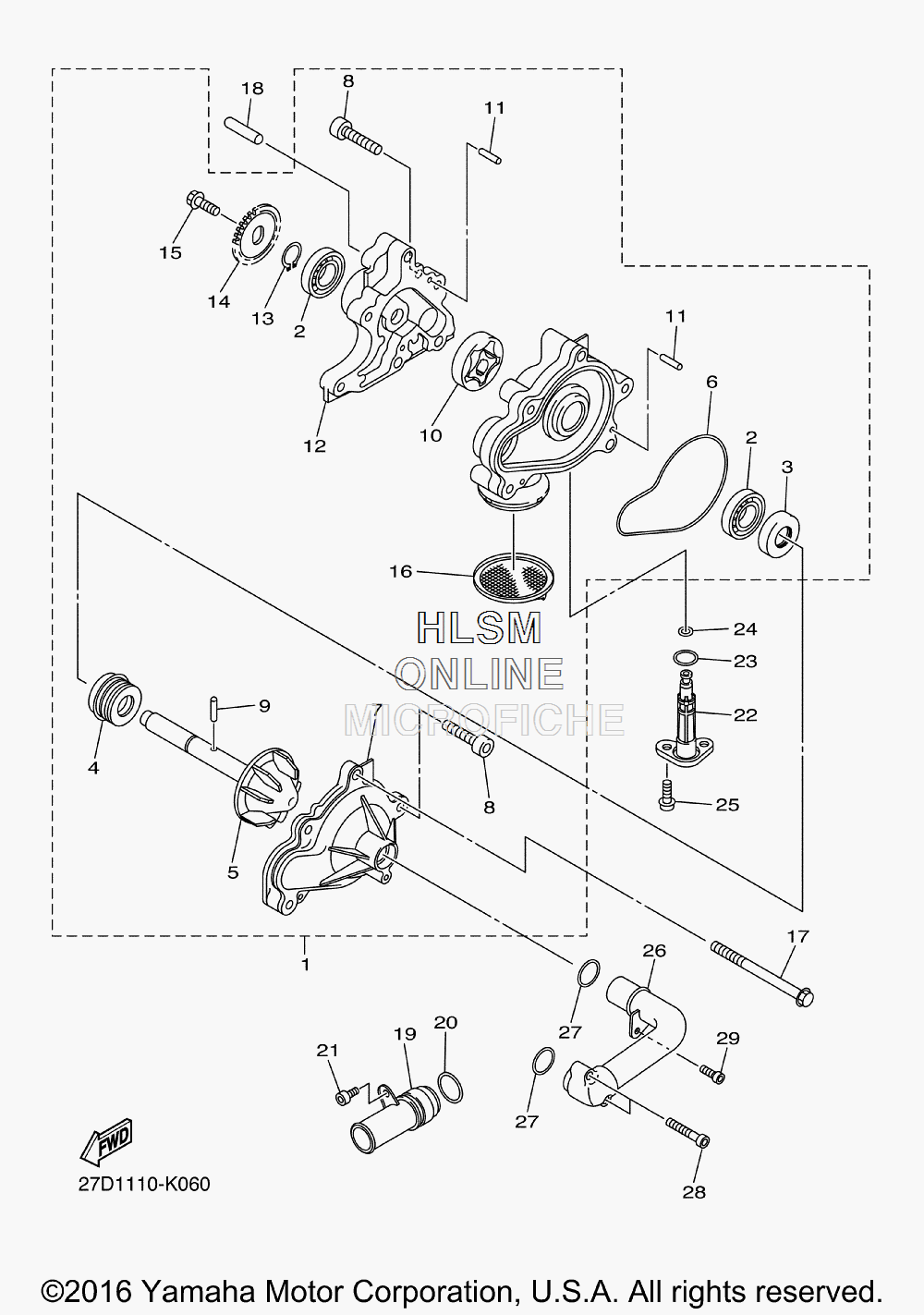

WATER PUMP для Yamaha STRYKER - 2017 года выпуска
-
№АртикулНазвание
-
13D8-12420-03-00 WATER PUMP ASSYWATER PUMP ASSY
-
293306-00106-00 ...BEARING...BEARING
-
393102-12372-00 ...OIL SEAL...OIL SEAL
-
45VK-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
53D8-12450-01-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
63D8-12439-00-00 ...O-RING...O-RING
-
73D8-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
891312-06025-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
993603-17070-00 ...PIN, DOWEL...PIN, DOWEL
-
103D8-13310-00-00 ...ROTOR ASSY 1...ROTOR ASSY 1
-
1193603-12007-00 ...PIN, DOWEL...PIN, DOWEL
-
123D8-13336-00-00 ...HOUSING, ROTOR...HOUSING, ROTOR
-
1399009-12400-00 ...CIRCLIP...CIRCLIP
-
143D8-13355-00-00 ...SPROCKET, DRIVEN...SPROCKET, DRIVEN
-
1590105-06066-00 ...BOLT, FLANGE...BOLT, FLANGE
-
163D8-13411-00-00 ...STRAINER, OIL...STRAINER, OIL
-
1790110-08049-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1899530-08012-00 PIN, DOWELPIN, DOWEL
-
193D8-1248E-01-00 PIPE 9PIPE 9
-
2093210-27370-00 O-RINGO-RING
-
2190110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2227D-12562-00-00 BODY, DRAIN COCKBODY, DRAIN COCK
-
2393210-15639-00 O-RINGO-RING
-
2493210-07003-00 O-RINGO-RING
-
2590110-06219-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
263D8-12564-00-00 PIPE, WATERPIPE, WATER
-
2793210-235A1-00 O-RINGO-RING
-
2890110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
