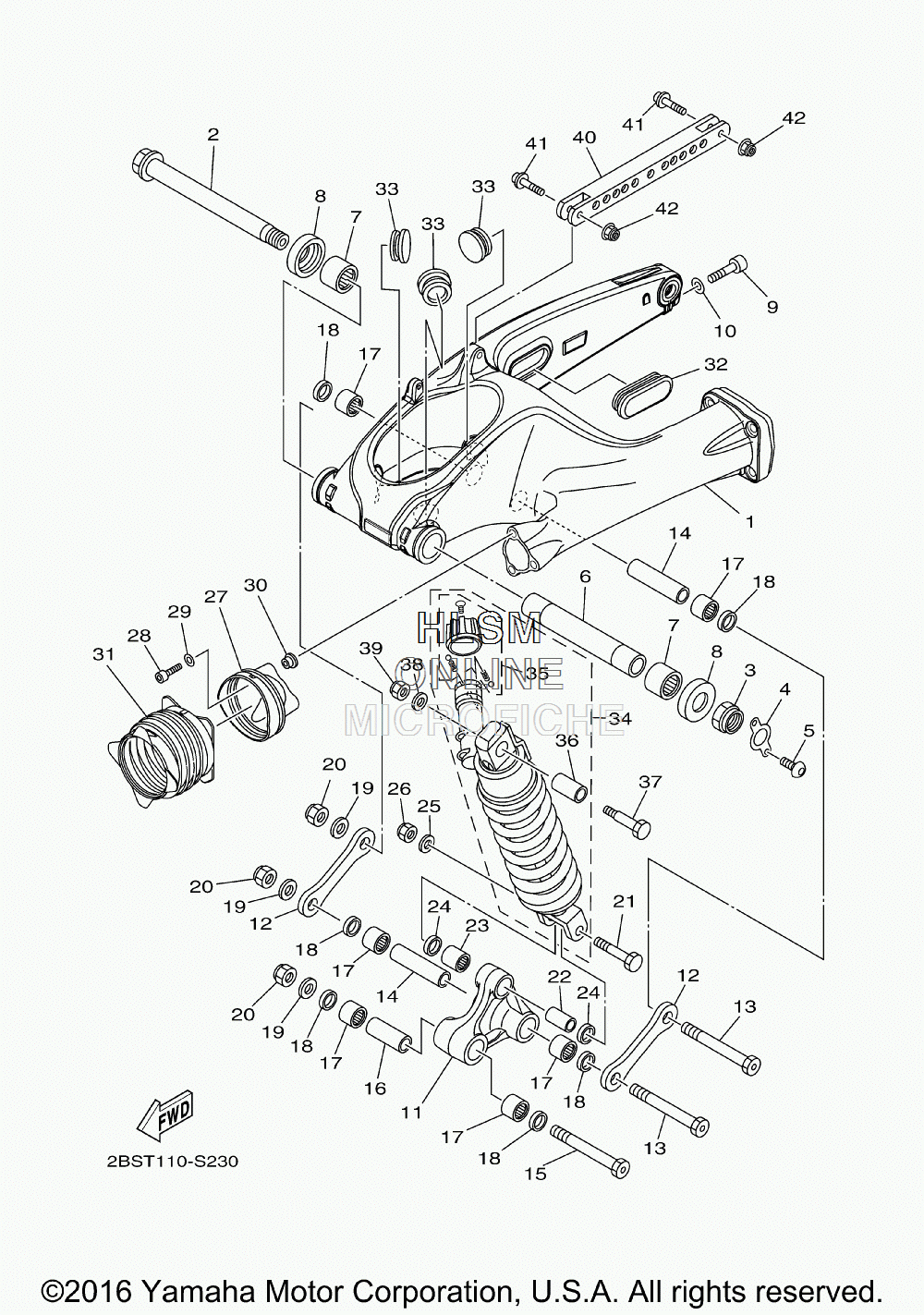

SUSPENSION - REAR ARM для Yamaha SUPER TENERE - 2017 года выпуска
-
№АртикулНазвание
-
123P-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
223P-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
390185-22009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
423P-22163-00-00 BRACKETBRACKET
-
592012-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
623P-22184-00-00 BUSHBUSH
-
793317-330A0-00 BEARINGBEARING
-
823P-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
991312-10040-00 BOLTBOLT
-
1092902-10600-00 WASHER, PLATEWASHER, PLATE
-
1123P-2217A-00-00 ARM, RELAYARM, RELAY
-
1223P-2217M-00-00 ARM 1ARM 1
-
1390109-14008-00 BOLTBOLT
-
1490387-14014-00 COLLARCOLLAR
-
1590109-14009-00 BOLTBOLT
-
1690387-14015-00 COLLARCOLLAR
-
1793315-32057-00 BEARINGBEARING
-
1893109-20076-00 OIL SEALOIL SEAL
-
1990201-14027-00 WASHER, PLATEWASHER, PLATE
-
2090185-14010-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190101-12038-00 BOLTBOLT
-
2290387-12045-00 COLLARCOLLAR
-
2393315-31750-00 BEARINGBEARING
-
2493109-17071-00 OIL SEALOIL SEAL
-
2590201-12045-00 WASHER, PLATEWASHER, PLATE
-
2690185-12008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2723P-2217H-00-00 COVER, DUSTCOVER, DUST
-
2890110-05031-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2992902-05200-00 WASHERWASHER
-
3090387-05035-00 COLLARCOLLAR
-
3123P-22189-00-00 BOOT, RUBBERBOOT, RUBBER
-
325JW-2219X-00-00 COVERCOVER
-
3390338-30267-00 PLUGPLUG
-
342BS-22210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
3523P-28130-09-00 ...REPAIR KIT...REPAIR KIT
-
364TV-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
3790109-10028-00 BOLTBOLT
-
3890201-10036-00 WASHER, PLATEWASHER, PLATE
-
3995612-10100-00 NUT, UNUT, U
-
4023P-25371-00-00 BAR, TENSIONBAR, TENSION
-
4190110-08007-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4295602-08200-00 NUT, U FLANGENUT, U FLANGE
