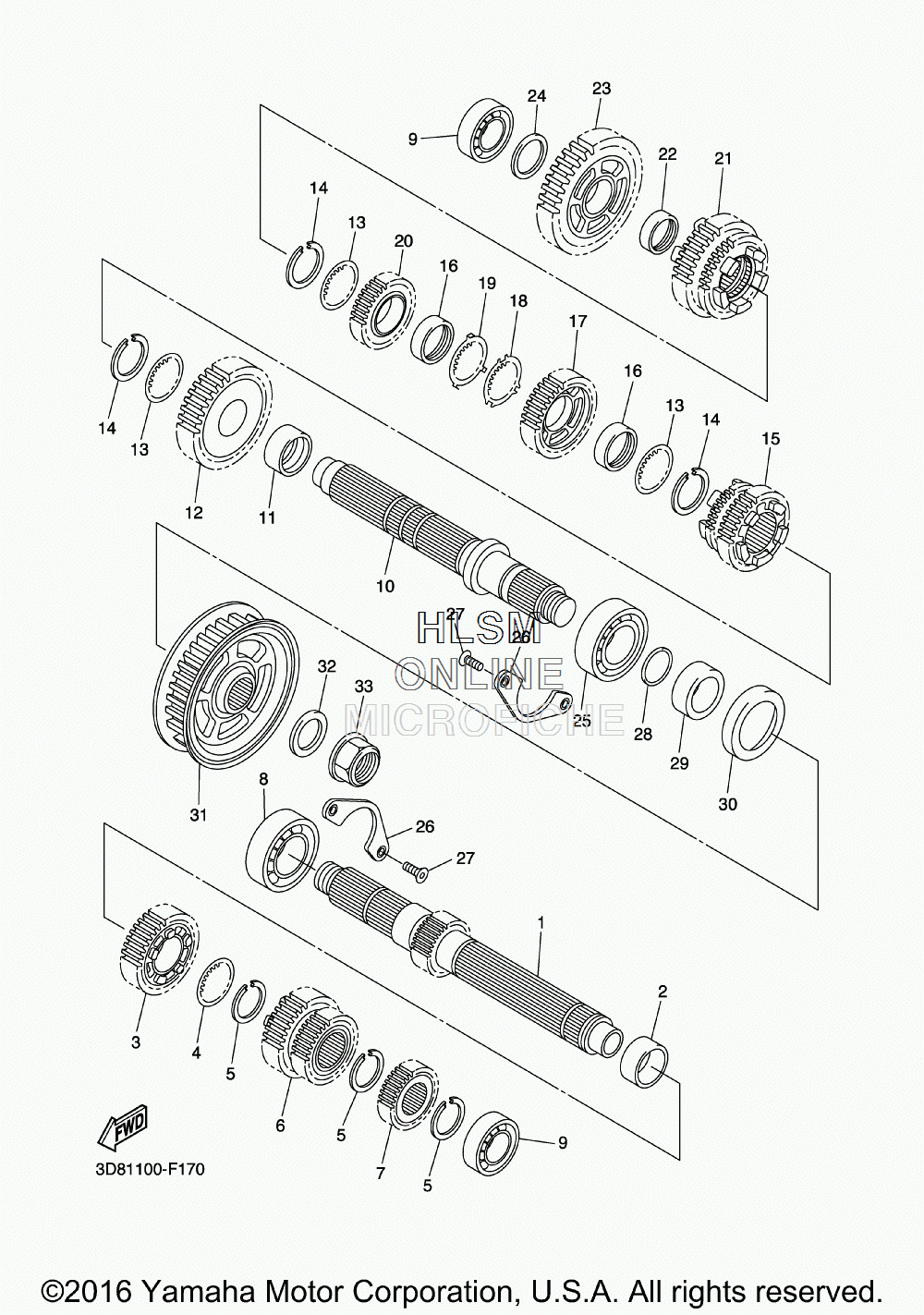

TRANSMISSION для Yamaha V STAR 1300 TOURER - 2017 года выпуска
-
№АртикулНазвание
-
13D8-17411-00-00 AXLE, MAIN (13T)AXLE, MAIN (13T)
-
290387-28003-00 COLLARCOLLAR
-
33D8-17151-00-00 GEAR, 5TH PINION (25T)GEAR, 5TH PINION (25T)
-
490209-25011-00 WASHERWASHER
-
593440-28184-00 CIRCLIPCIRCLIP
-
627D-17131-00-00 GEAR, 3RD PINION (21/26T)GEAR, 3RD PINION (21/26T)
-
73D8-17121-00-00 GEAR, 2ND PINION (18T)GEAR, 2ND PINION (18T)
-
893306-37817-00 BEARINGBEARING
-
993306-37215-00 BEARINGBEARING
-
103D8-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
1190387-31003-00 COLLARCOLLAR
-
123D8-17221-00-00 GEAR, 2ND WHEEL (32T)GEAR, 2ND WHEEL (32T)
-
1390209-28008-00 WASHERWASHER
-
1493440-31187-00 CIRCLIPCIRCLIP
-
153D8-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
1690387-28004-00 COLLARCOLLAR
-
173D8-17231-00-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
1890214-29002-00 WASHER, CLAWWASHER, CLAW
-
1990214-28002-00 WASHER, CLAWWASHER, CLAW
-
203D8-17241-00-00 GEAR, 4TH WHEEL (29T)GEAR, 4TH WHEEL (29T)
-
213D8-17251-00-00 GEAR, 5TH WHEEL (24T)GEAR, 5TH WHEEL (24T)
-
2290387-25008-00 COLLARCOLLAR
-
233D8-17211-00-00 GEAR, 1ST WHEEL (36T)GEAR, 1ST WHEEL (36T)
-
2490201-224L4-00 WASHER, PLATEWASHER, PLATE
-
2593306-30610-00 BEARINGBEARING
-
263D8-15381-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
2790151-06024-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2893210-27672-00 O-RINGO-RING
-
2990387-30010-00 COLLARCOLLAR
-
3093102-45012-00 OIL SEALOIL SEAL
-
313D8-17651-00-00 PULLEY, BELTPULLEY, BELT
-
3290208-22004-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
3390179-22016-00 NUTNUT
