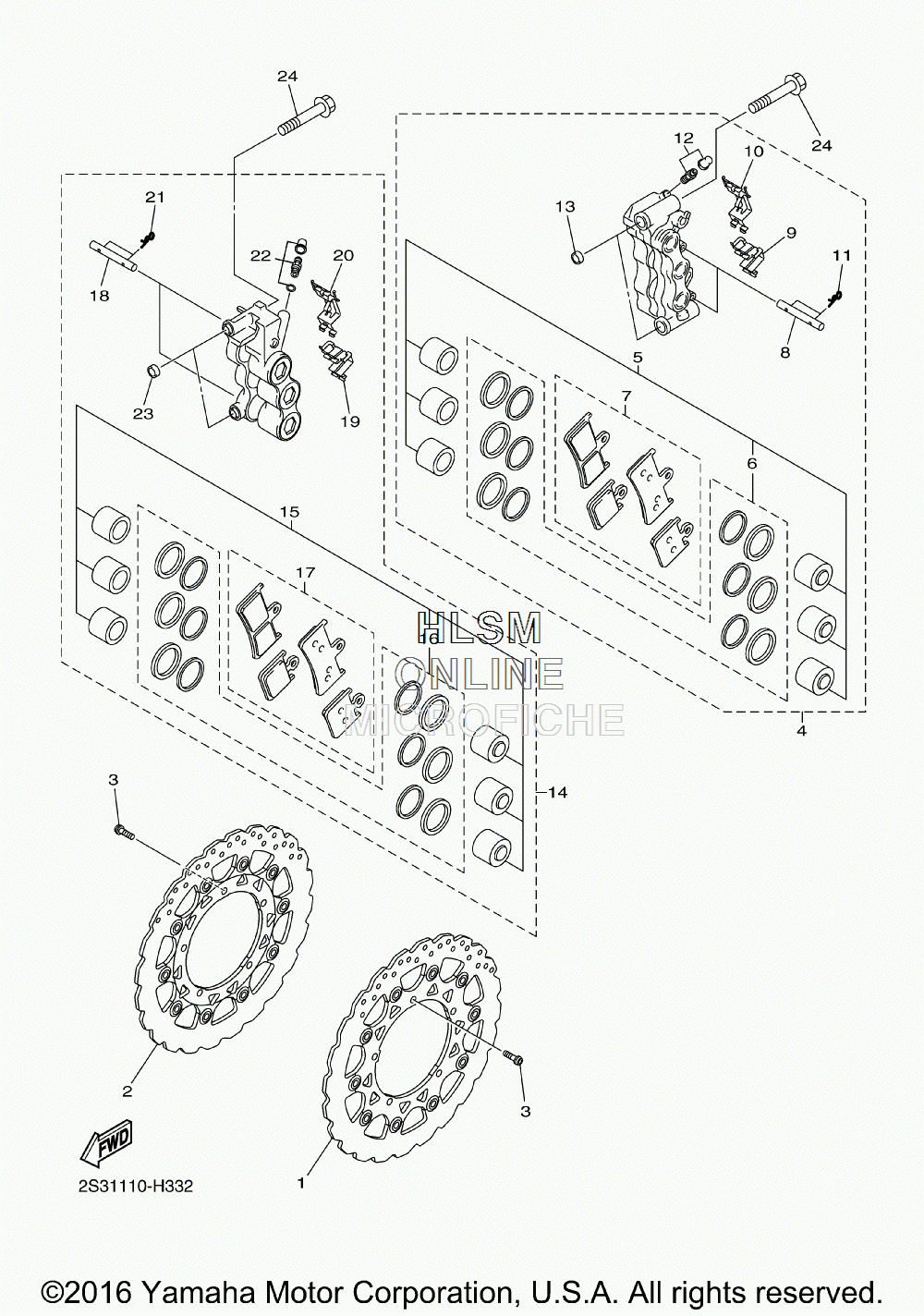

BRAKE - FRONT CALIPER для Yamaha VMAX - 2017 года выпуска
-
№АртикулНазвание
-
12S3-2581T-00-00 DISC BRAKE ASSYDISC BRAKE ASSY
-
22S3-2581U-00-00 DISC BRAKE ASSY (RIGHT)DISC BRAKE ASSY (RIGHT)
-
390149-06132-00 SCREWSCREW
-
44C8-2580T-10-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
54C8-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
64C8-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
74C8-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
84SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
94C8-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
102S3-25919-10-00 ...SUPPORT, PAD...SUPPORT, PAD
-
113GM-25925-00-00 ...CLIP...CLIP
-
121J3-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
135VY-2583B-00-00 ...PIN, KNOCK...PIN, KNOCK
-
142S3-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
154C8-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
164C8-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
174C8-W0045-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
184SV-25924-00-00 ...PIN, PAD...PIN, PAD
-
194C8-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
202S3-25919-10-00 ...SUPPORT, PAD...SUPPORT, PAD
-
213GM-25925-00-00 ...CLIP...CLIP
-
225VS-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
235VY-2583B-00-00 ...PIN, KNOCK...PIN, KNOCK
-
2490105-10397-00 BOLT, FLANGEBOLT, FLANGE
