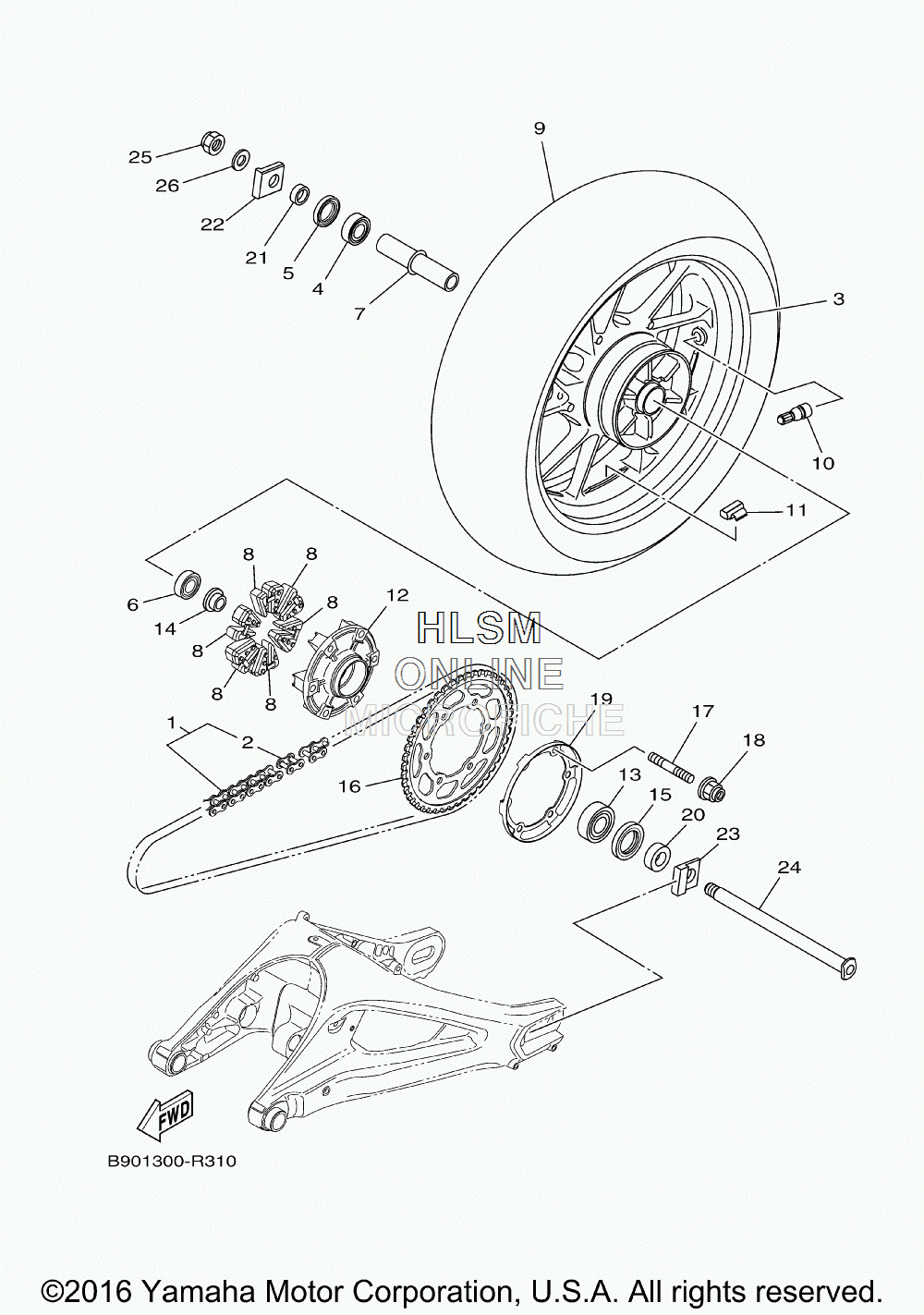

WHEEL - REAR для Yamaha XSR900 - 2017 года выпуска
-
№АртикулНазвание
-
194582-31110-00 CHAIN (DID 525V10-110LL)CHAIN (DID 525V10-110LL)
-
294682-31031-00 ...JOINT, CHAIN (DID 525V10-ZJ)...JOINT, CHAIN (DID 525V10-ZJ)
-
32DR-25338-00-98 CAST WHEEL, REAR (LGB - GLOSS BLACK FOR NBM4 - BLUE METALLIC)CAST WHEEL, REAR (LGB - GLOSS BLACK FOR NBM4 - BLUE METALLIC)
-
493306-20480-00 BEARINGBEARING
-
593102-28022-00 OIL SEALOIL SEAL
-
693306-00416-00 BEARINGBEARING
-
72PP-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
81RC-25364-00-00 DAMPERDAMPER
-
994118-17078-00 TIRE (180/55ZR17M/C 73W S20R) (BRIDGESTONE)TIRE (180/55ZR17M/C 73W S20R) (BRIDGESTONE)
-
1093900-00030-00 VALVE, RIM (TR412) (TAIHEIYO)VALVE, RIM (TR412) (TAIHEIYO)
-
115MT-25398-00-00 BALANCER, WHEEL (10G) (OPT)BALANCER, WHEEL (10G) (OPT)
-
115MT-25398-20-00 BALANCER, WHEEL (30G) (OPT)BALANCER, WHEEL (30G) (OPT)
-
115MT-25398-10-00 BALANCER, WHEEL (20G) (OPT)BALANCER, WHEEL (20G) (OPT)
-
125JJ-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1393306-205B5-00 BEARINGBEARING
-
141RC-25383-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
1593106-40013-00 OIL SEALOIL SEAL
-
161RC-25445-00-00 SPROCKET, DRIVEN (45T)SPROCKET, DRIVEN (45T)
-
1790116-10048-00 BOLT, STUDBOLT, STUD
-
1895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
191RC-2537W-00-00 BRACKET 1BRACKET 1
-
2090387-20036-00 COLLARCOLLAR
-
2190387-20035-00 COLLARCOLLAR
-
223SP-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
231RC-25389-00-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
241RC-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2590185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2690201-18021-00 WASHER, PLATEWASHER, PLATE
