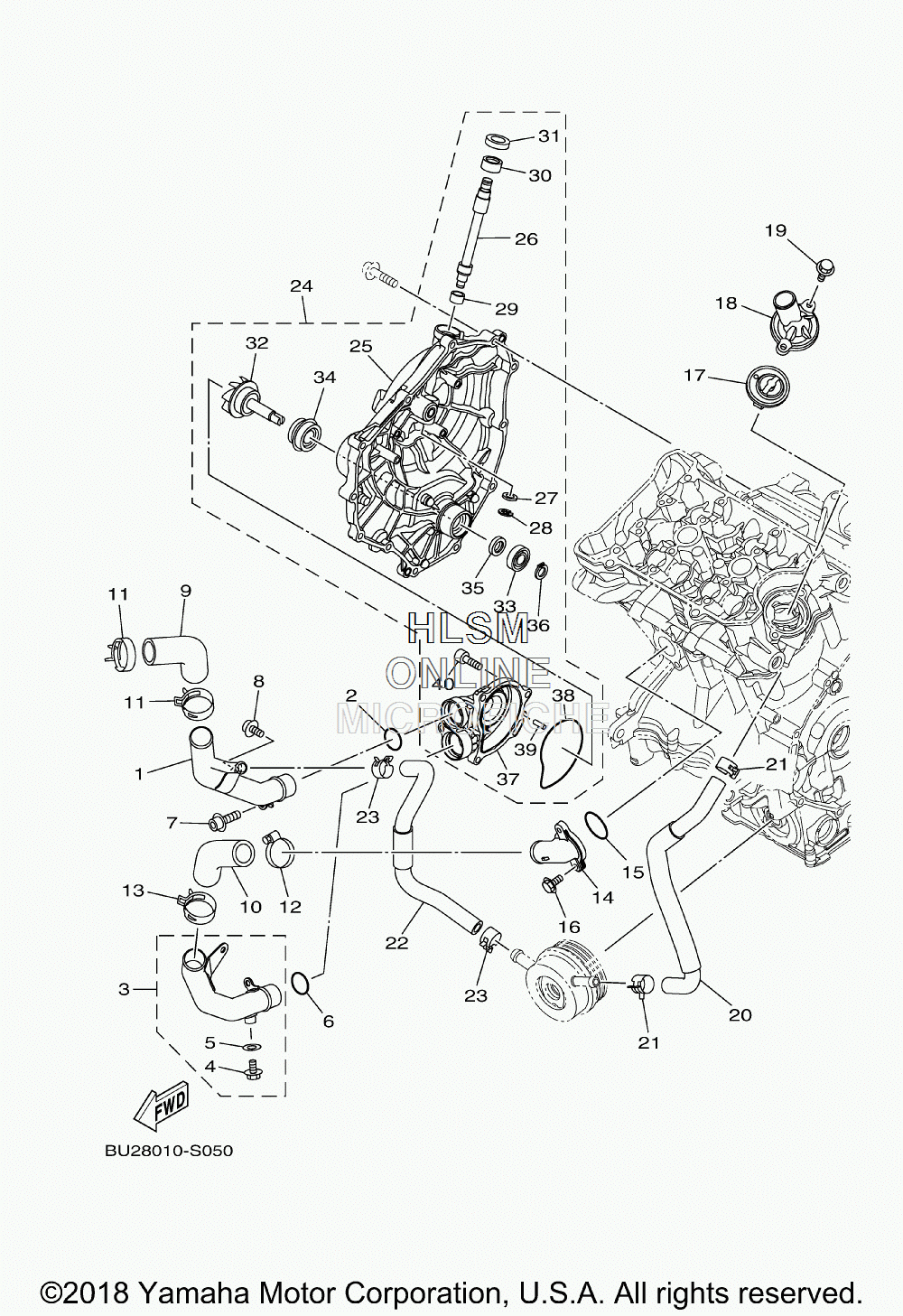

WATER PUMP для Yamaha MT07 - 2018 года выпуска
-
№АртикулНазвание
-
11WS-12481-00-00 PIPE 1PIPE 1
-
293210-235A1-00 O-RINGO-RING
-
31WS-12482-00-00 PIPE 2PIPE 2
-
495022-06010-00 ...BOLT, FLANGE...BOLT, FLANGE
-
590430-06014-00 ...GASKET...GASKET
-
693210-235A1-00 O-RINGO-RING
-
791314-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890110-06152-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
91WS-12576-00-00 HOSE 1HOSE 1
-
101WS-12576-00-00 HOSE 1HOSE 1
-
1190467-290A0-00 CLIPCLIP
-
1290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390467-290A0-00 CLIPCLIP
-
141WS-12469-00-00 JOINT 1JOINT 1
-
1593210-33786-00 O-RINGO-RING
-
1695812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
171WS-12410-00-00 THERMOSTAT ASSYTHERMOSTAT ASSY
-
181WS-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1995817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
201WS-12588-00-00 HOSE 5HOSE 5
-
2190467-170A6-00 CLIPCLIP
-
221WS-12589-00-00 HOSE 6HOSE 6
-
2390467-170A6-00 CLIPCLIP
-
241WS-12420-01-00 WATER PUMP ASSYWATER PUMP ASSY
-
251WS-15421-00-00 ...COVER, CRANKCASE 2...COVER, CRANKCASE 2
-
262D1-16382-00-00 ...AXLE, PUSH LEVER...AXLE, PUSH LEVER
-
2792907-08600-00 ...WASHER, PLATE...WASHER, PLATE
-
2899001-07600-00 ...CIRCLIP...CIRCLIP
-
2993317-11096-00 ...BEARING...BEARING
-
3093315-21570-00 ...BEARING...BEARING
-
3193102-15212-00 ...OIL SEAL...OIL SEAL
-
321WS-12450-00-00 ...IMPELLER SHAFT ASSY...IMPELLER SHAFT ASSY
-
3393306-00106-00 ...BEARING...BEARING
-
345VK-12438-00-00 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
352CR-13338-00-00 ...SEAL...SEAL
-
3699009-12400-00 ...CIRCLIP...CIRCLIP
-
371WS-12422-00-00 ...COVER, HOUSING...COVER, HOUSING
-
381WS-12439-00-00 ...O-RING...O-RING
-
3993603-12007-00 ...PIN, DOWEL...PIN, DOWEL
-
4090110-06274-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
