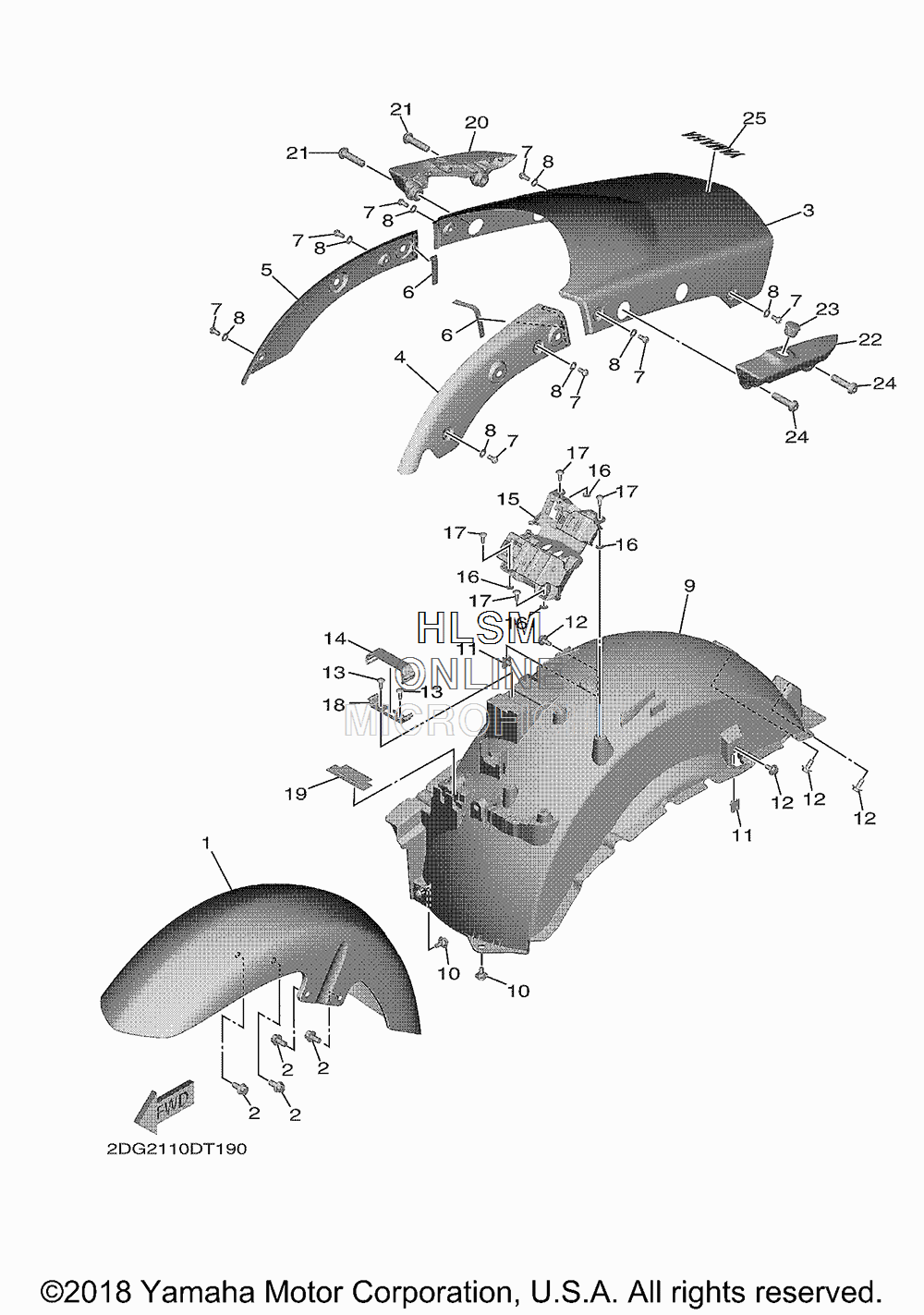

FENDER - FRONT / REAR для Yamaha STAR ELUDER - 2018 года выпуска
-
№АртикулНазвание
-
12DF-YK215-00-P3 FRONT FENDER COMP. (VPBC5 - VIVID PURPLISH BLU)FRONT FENDER COMP. (VPBC5 - VIVID PURPLISH BLU)
-
12DF-21510-10-00 FRONT FENDER COMP. (SMX - BLACK METALLIC)FRONT FENDER COMP. (SMX - BLACK METALLIC)
-
295D32-08016-00 BOLT, FLANGE DEEP RECESSBOLT, FLANGE DEEP RECESS
-
32DF-21610-10-00 REAR FENDER COMP. (SMX - BLACK METALLIC)REAR FENDER COMP. (SMX - BLACK METALLIC)
-
32DF-YK216-00-P3 REAR FENDER COMP. (VPBC5 - VIVID PURPLISH BLU)REAR FENDER COMP. (VPBC5 - VIVID PURPLISH BLU)
-
42DF-21613-10-00 STAY, FENDER 1 (SMX - BLACK METALLIC)STAY, FENDER 1 (SMX - BLACK METALLIC)
-
42DF-YK263-00-P3 CLEAR STAY, FENDER 1 (VPBC5 - VIVID PURPLISH BLU)CLEAR STAY, FENDER 1 (VPBC5 - VIVID PURPLISH BLU)
-
52DF-YK264-00-P3 CLEAR STAY, FENDER 2 (VPBC5 - VIVID PURPLISH BLU)CLEAR STAY, FENDER 2 (VPBC5 - VIVID PURPLISH BLU)
-
52DF-21614-10-00 STAY, FENDER 2 (SMX - BLACK METALLIC)STAY, FENDER 2 (SMX - BLACK METALLIC)
-
613S-28237-00-00 DAMPER 3DAMPER 3
-
792014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
892902-06200-00 .WASHER.WASHER
-
92DF-21629-00-00 GUARD, MUDGUARD, MUD
-
1090109-06322-00 BOLTBOLT
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290119-06242-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1397702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
14122-82131-00-00 BAND, BATTERYBAND, BATTERY
-
152DF-21688-00-00 BRACKET, REAR STAYBRACKET, REAR STAY
-
162DF-21616-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
1790269-05055-00 RIVETRIVET
-
182DF-2161A-00-00 BRACKET 3BRACKET 3
-
192DF-21669-00-00 SEALSEAL
-
202DG-2164F-00-00 STAY 1STAY 1
-
2190111-10062-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
222DG-2164G-00-00 STAY 2STAY 2
-
2390338-19212-00 PLUGPLUG
-
2490111-10062-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2599247-00100-00 EMBLEM, YAMAHA (SMX - BLACK METALLIC)EMBLEM, YAMAHA (SMX - BLACK METALLIC)
-
2599244-00100-00 EMBLEM, YAMAHA (VPBC5 - VIVID PURPLISH BLU)EMBLEM, YAMAHA (VPBC5 - VIVID PURPLISH BLU)
