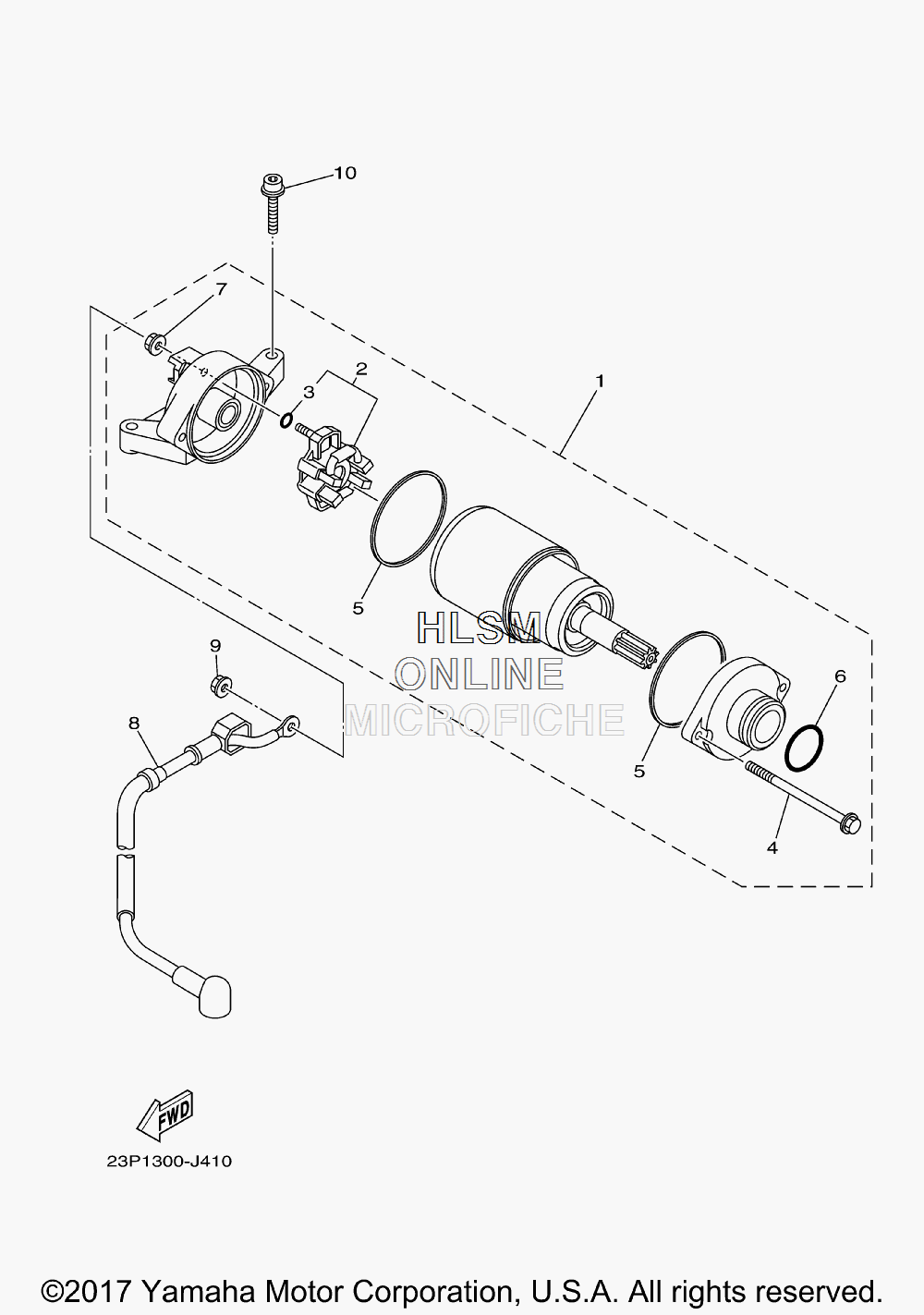

STARTING MOTOR для Yamaha SUPER TENERE ES - 2018 года выпуска
-
№АртикулНазвание
-
123P-81890-00-00 MOTOR ASSYMOTOR ASSY
-
24B5-81840-00-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
33TB-81847-00-00 ......O-RING......O-RING
-
418P-81826-00-00 ...BOLT...BOLT
-
54B5-81844-00-00 ...GASKET...GASKET
-
61FK-81847-00-00 ...O-RING...O-RING
-
74XV-8182A-00-00 ...NUT...NUT
-
823P-81815-00-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
94XV-8182A-00-00 NUTNUT
-
1090110-06349-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
