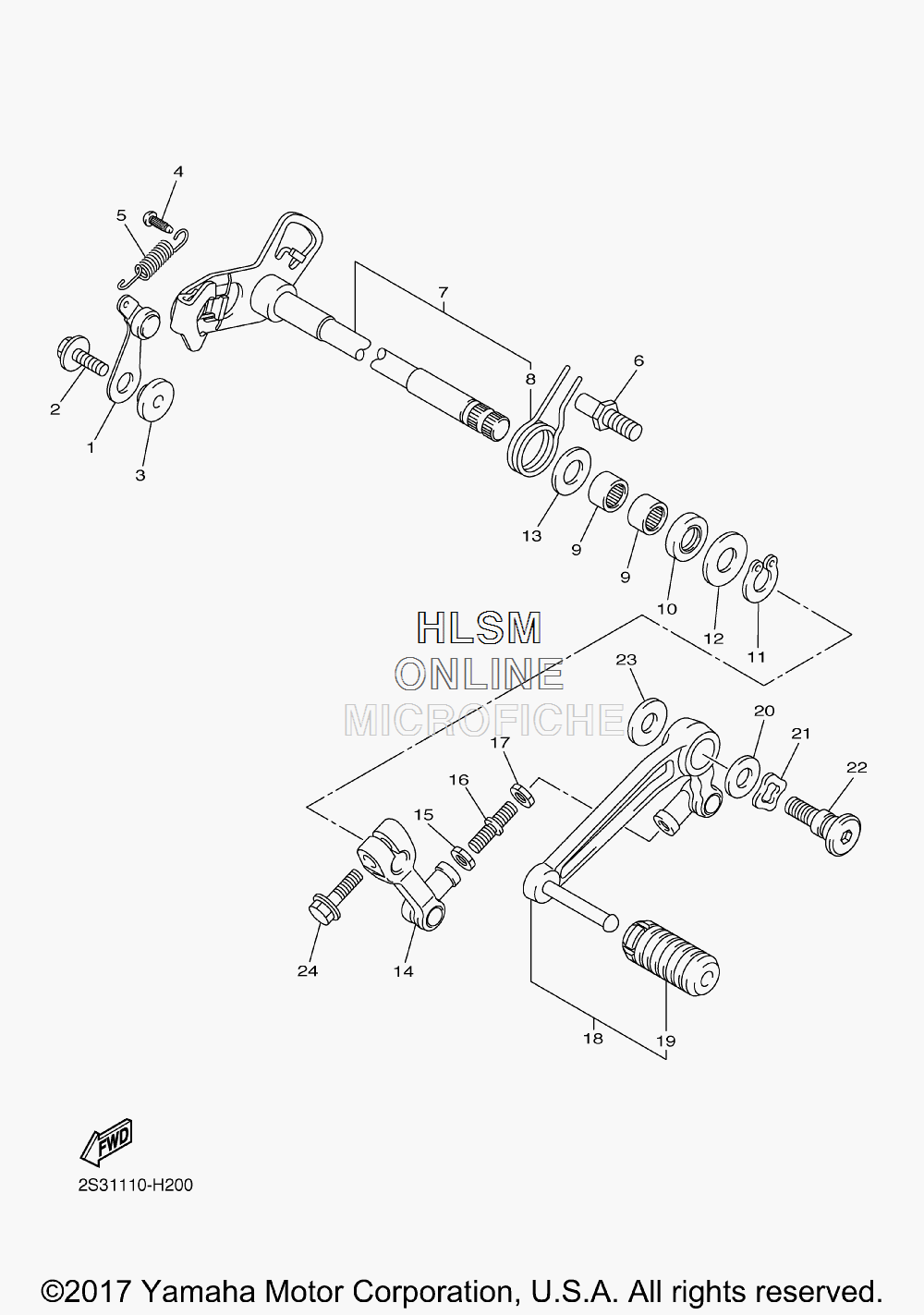

SHIFT SHAFT для Yamaha V MAX - 2018 года выпуска
-
№АртикулНазвание
-
12S3-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
290159-06027-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
34NX-18175-00-00 SPACERSPACER
-
4132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
590506-15002-00 SPRING, TENSIONSPRING, TENSION
-
61D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
72S3-18101-02-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
890508-32141-00 ...SPRING, TORSION...SPRING, TORSION
-
993317-11295-00 BEARINGBEARING
-
1093102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
1199002-10600-00 CIRCLIPCIRCLIP
-
1290201-12575-00 WASHER, PLATEWASHER, PLATE
-
1390201-127E1-00 WASHER, PLATEWASHER, PLATE
-
142S3-18112-00-00 ARM, SHIFTARM, SHIFT
-
1595304-06700-00 NUTNUT
-
162S3-18115-00-00 ROD, SHIFTROD, SHIFT
-
1790170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
182S3-18110-10-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
192S3-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
2090201-12013-00 WASHER, PLATEWASHER, PLATE
-
2190206-12074-00 WASHER, WAVEWASHER, WAVE
-
222S3-27217-00-00 BOLTBOLT
-
2390201-080H1-00 WASHER, PLATEWASHER, PLATE
-
2495022-06020-00 BOLT, FLANGEBOLT, FLANGE
