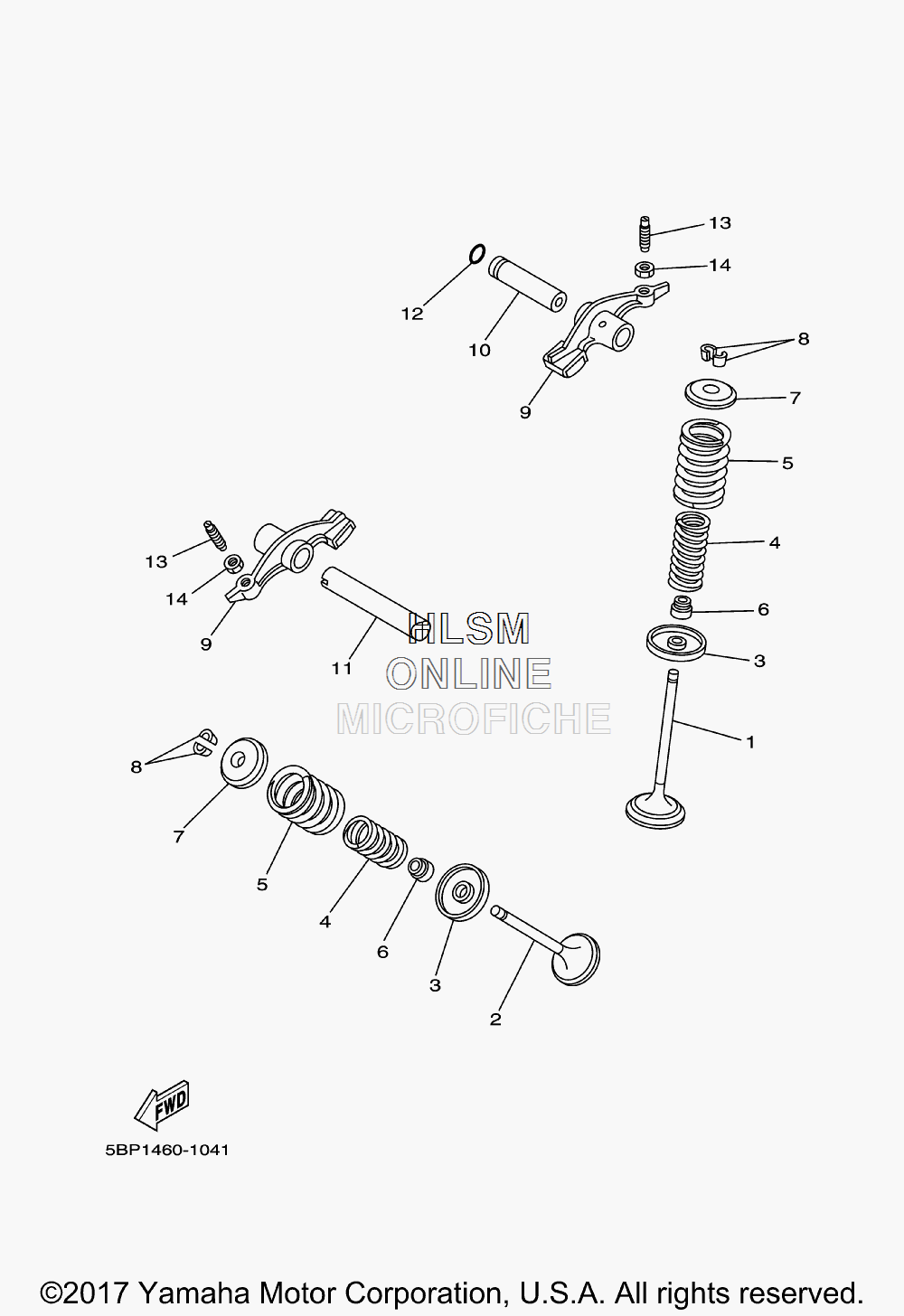

VALVE для Yamaha XT 250 - 2018 года выпуска
-
№АртикулНазвание
-
15H0-12111-02-00 VALVE, INTAKEVALVE, INTAKE
-
25XT-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
34G0-12116-01-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
411H-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
511H-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
65H0-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
74G0-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
84G0-12118-00-00 COTTER, VALVECOTTER, VALVE
-
936X-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
105H0-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
115H0-12146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
1293210-09165-00 O-RINGO-RING
-
135XT-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1490170-06128-00 NUTNUT
