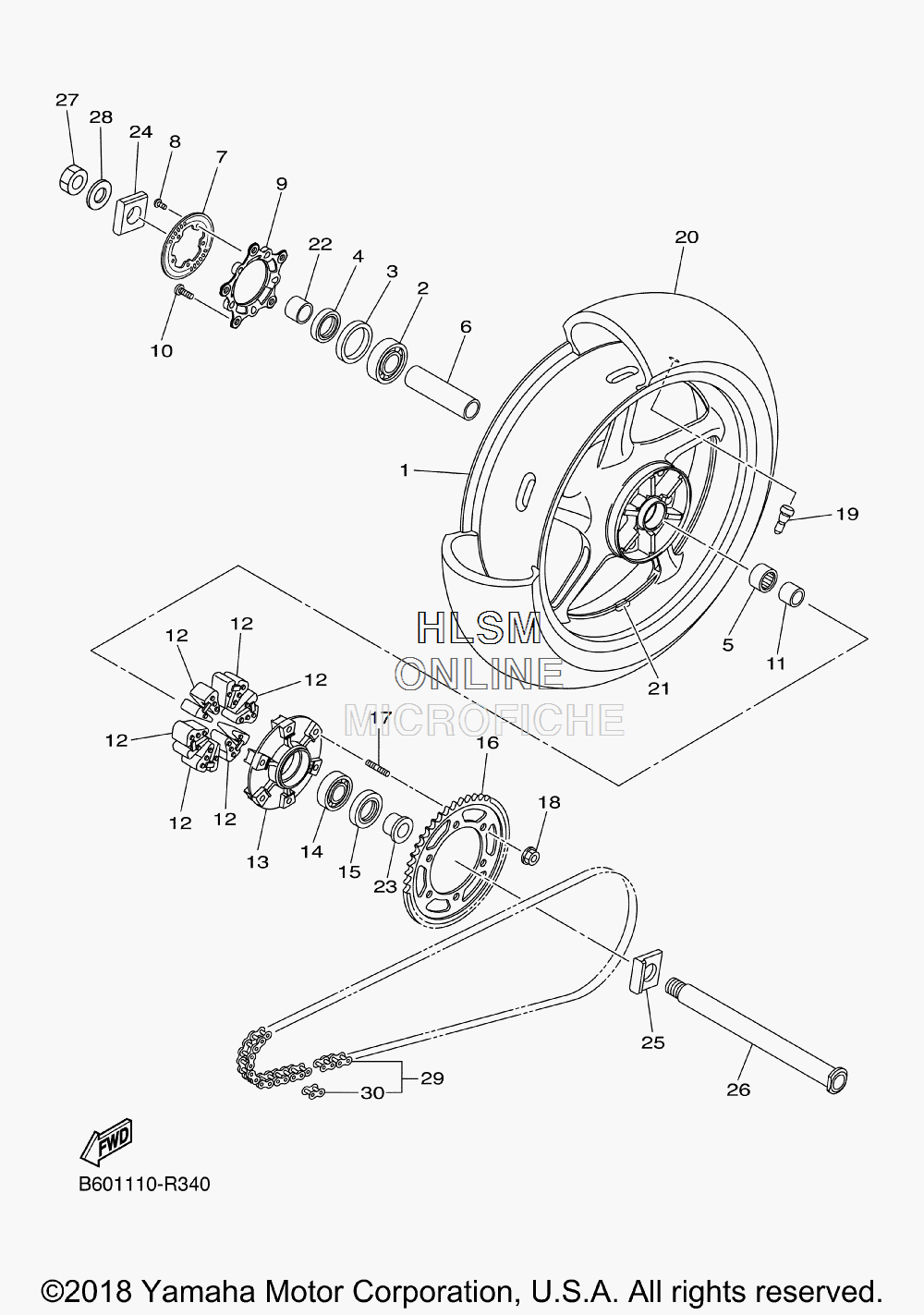

WHEEL - REAR для Yamaha YZFR1S - 2018 года выпуска
-
№АртикулНазвание
-
1B60-25338-00-P1 CAST WHEEL, REAR (LLGS6 - LIGHT GREEN)CAST WHEEL, REAR (LLGS6 - LIGHT GREEN)
-
293306-27802-00 BEARINGBEARING
-
32CR-2538E-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
493106-40001-00 OIL SEALOIL SEAL
-
593317-43580-00 BEARINGBEARING
-
65PW-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
71SD-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
890149-05029-00 SCREWSCREW
-
9B60-2534C-00-00 RING, WHEEL RR. 1RING, WHEEL RR. 1
-
1090149-05029-00 SCREWSCREW
-
1190387-28025-00 COLLARCOLLAR
-
122C0-25364-00-00 DAMPERDAMPER
-
13B60-25366-00-00 CLUTCH, HUBCLUTCH, HUB
-
1493306-20531-00 BEARINGBEARING
-
1593106-40013-00 OIL SEALOIL SEAL
-
16B60-25441-00-00 SPROCKET, DRIVEN (41T)SPROCKET, DRIVEN (41T)
-
1790116-10048-00 BOLT, STUDBOLT, STUD
-
1890185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1993900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
2094119-17075-00 TIRE (190/55 ZR17 M/C 75W)TIRE (190/55 ZR17 M/C 75W)
-
215MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
215MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
215MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
2290387-28023-00 COLLARCOLLAR
-
2390387-28024-00 COLLARCOLLAR
-
245VY-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
255VY-25389-01-00 PULLER, CHAIN 2PULLER, CHAIN 2
-
262CR-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
2790185-24007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890201-25020-00 WASHER, PLATEWASHER, PLATE
-
2994582-40114-00 CHAIN (DID 525VZ-114LL)CHAIN (DID 525VZ-114LL)
-
3094682-40031-00 ...JOINT, CHAIN (DID525VZ ZJ)...JOINT, CHAIN (DID525VZ ZJ)
