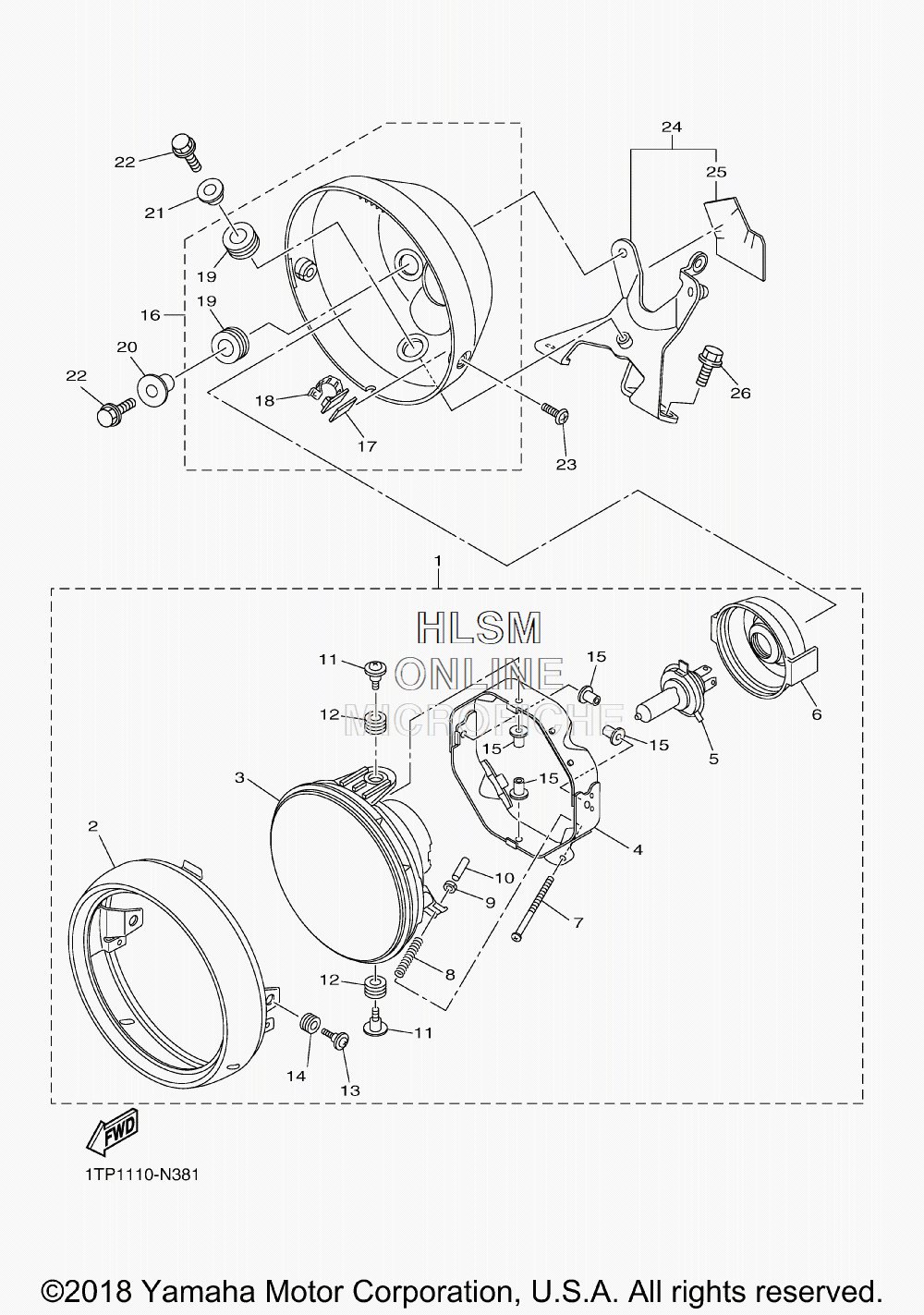

HEADLIGHT для Yamaha BOLT - 2019 года выпуска
-
№АртикулНазвание
-
15S7-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
25S7-84315-00-00 ...RIM, HEADLIGHT...RIM, HEADLIGHT
-
35PX-84320-00-00 ...LENS ASSY...LENS ASSY
-
45PX-84318-00-00 ...STAY, HEADLIGHT 1...STAY, HEADLIGHT 1
-
58G9-84314-00-00 ...BULB (12V-60/55W) (H4) HALOGEN...BULB (12V-60/55W) (H4) HALOGEN
-
65PX-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
75PX-84331-00-00 ...SCREW, RIM ADJUSTING...SCREW, RIM ADJUSTING
-
85PX-84332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
95PX-84334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
105PX-84385-00-00 ...CAP,1...CAP,1
-
115PX-84325-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
125PX-84354-00-00 ...GROMMET...GROMMET
-
135PX-84125-00-00 ...SCREW, RIM FITTING...SCREW, RIM FITTING
-
145PX-84352-00-00 ...GROMMET...GROMMET
-
155PX-84317-00-00 ...NUT...NUT
-
161TP-84330-00-00 BODY ASSYBODY ASSY
-
171TP-28428-00-00 ...SEAL 1...SEAL 1
-
1890464-09009-00 ...CLAMP...CLAMP
-
194WM-84366-00-00 ...DAMPER, HEADLIGHT 1...DAMPER, HEADLIGHT 1
-
2090387-067K8-00 COLLARCOLLAR
-
2190387-06040-00 COLLARCOLLAR
-
2295022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2398907-05014-00 SCREW, BINDSCREW, BIND
-
241TP-8411A-00-00 HEAD LIGHT STAY ASSYHEAD LIGHT STAY ASSY
-
251TP-84136-00-00 ...DAMPER, HEADLIGHT STAY...DAMPER, HEADLIGHT STAY
-
2695027-08035-00 BOLT, FLANGEBOLT, FLANGE
