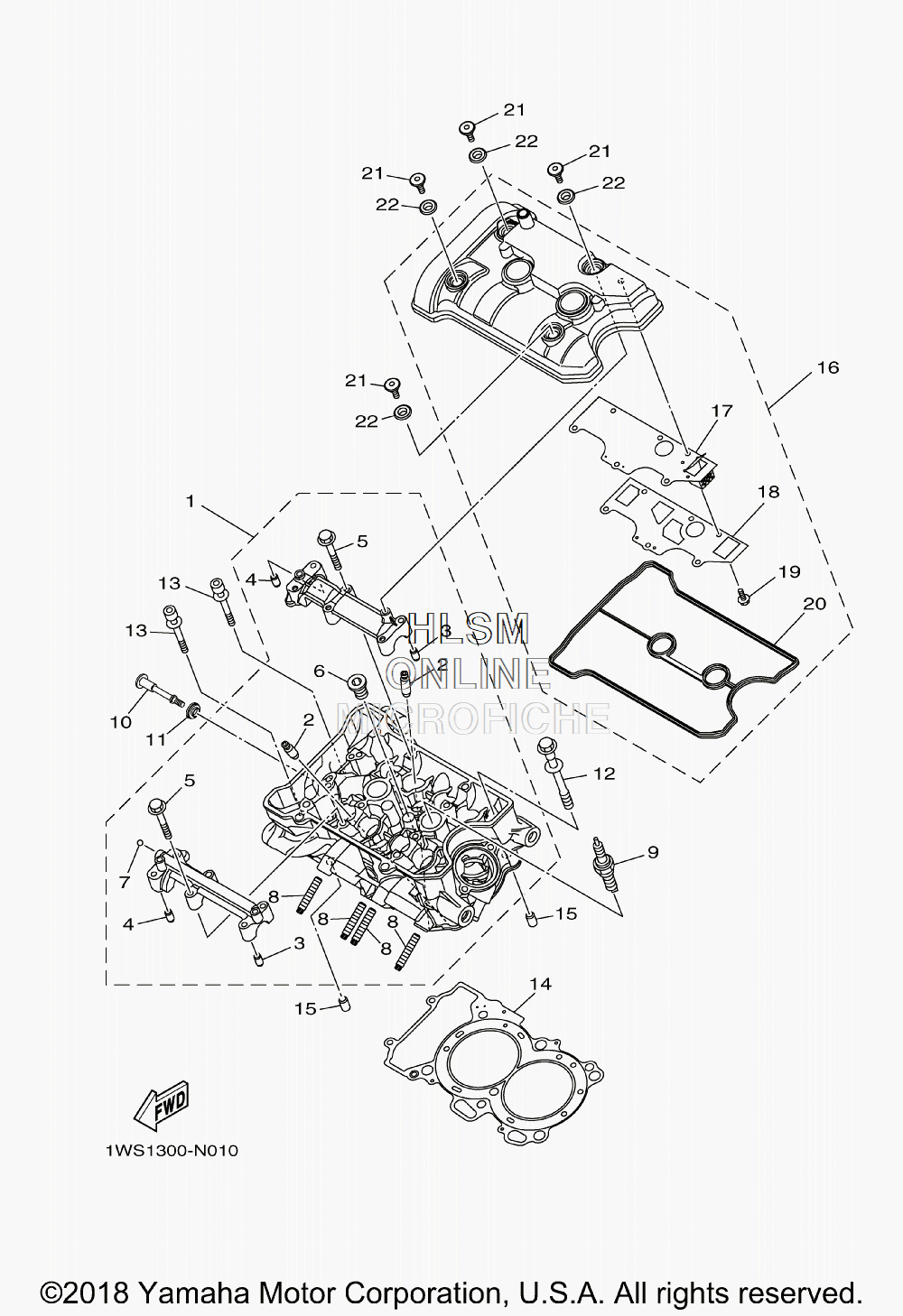

CYLINDER HEAD для Yamaha MT07 - 2019 года выпуска
-
№АртикулНазвание
-
11WS-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
24D9-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
391808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
590105-06027-00 ...BOLT, FLANGE...BOLT, FLANGE
-
690340-18002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
793501-04011-00 ...BALL...BALL
-
890116-08087-00 ...BOLT, STUD...BOLT, STUD
-
994701-00436-00 PLUG, SPARK (NGK LMAR8A-9)PLUG, SPARK (NGK LMAR8A-9)
-
1090109-06293-00 BOLTBOLT
-
115VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
1290119-10056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390110-06081-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
141WS-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1599530-10114-00 PIN, DOWELPIN, DOWEL
-
161WS-11190-01-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
171WS-11165-01-00 ...PLATE, BREATHER...PLATE, BREATHER
-
181WS-11169-00-00 ...GASKET, BREATHER COVER...GASKET, BREATHER COVER
-
1990105-05024-00 ...BOLT, FLANGE...BOLT, FLANGE
-
201WS-11193-01-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
2190109-066F0-00 BOLTBOLT
-
225VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
