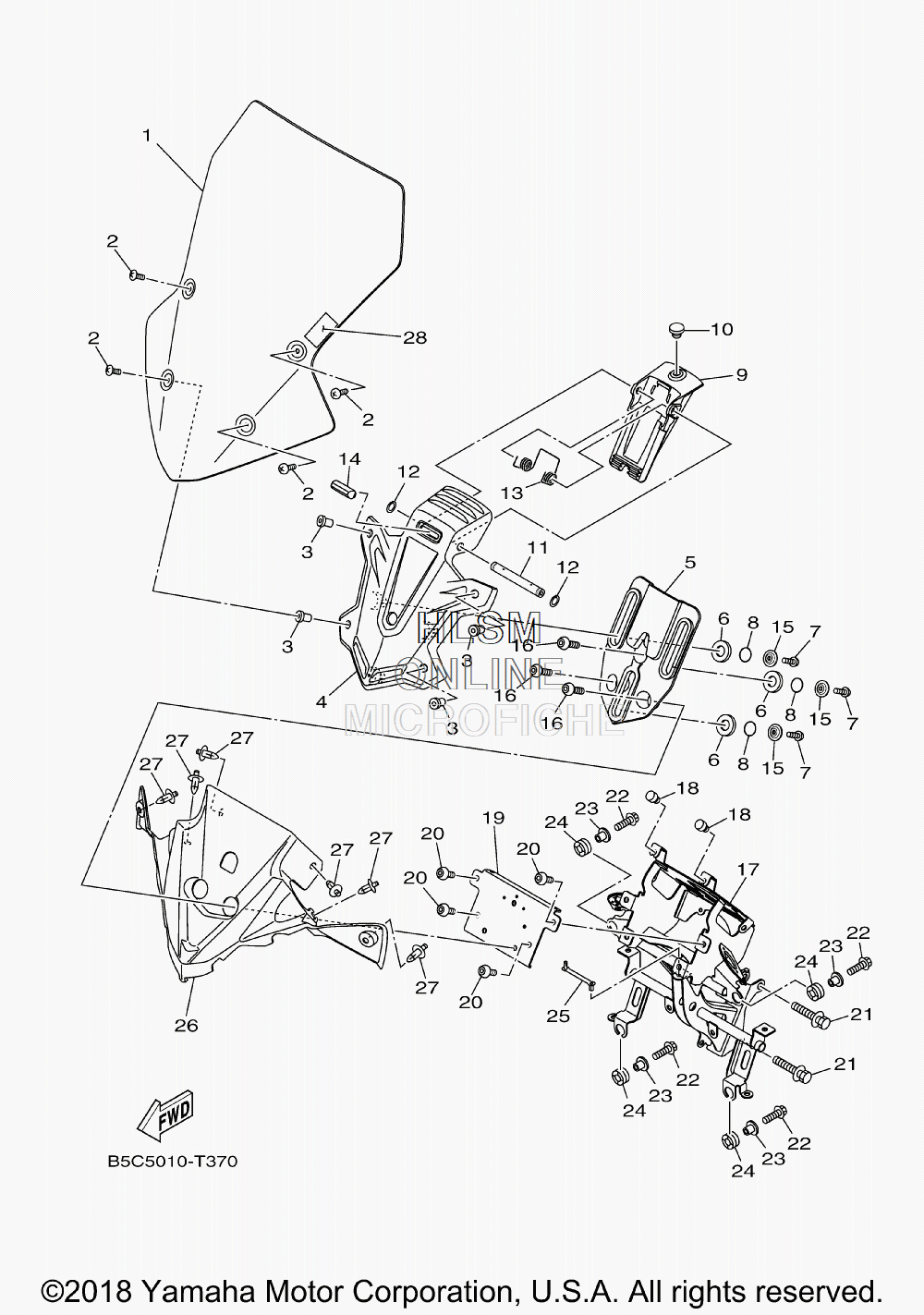

WINDSHIELD для Yamaha TRACER 900 - 2019 года выпуска
-
№АртикулНазвание
-
1B5C-28381-00-00 WINDSHIELDWINDSHIELD
-
290150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
390179-05003-00 NUTNUT
-
4B5C-2831R-00-00 STAY, MAIN 1STAY, MAIN 1
-
5B5C-2831T-00-00 STAY, SUPPORT 1STAY, SUPPORT 1
-
6B5C-28319-00-00 WASHERWASHER
-
792017-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
893210-14MF4-00 O-RINGO-RING
-
9B5C-2836X-00-00 KNOB, 1KNOB, 1
-
1090338-07010-00 PLUGPLUG
-
11B5C-2835B-00-00 SHAFT, 1SHAFT, 1
-
1299009-09800-00 CIRCLIPCIRCLIP
-
13B5C-28388-00-00 SPRINGSPRING
-
14B5C-2836T-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
15B5C-28373-00-00 COLLARCOLLAR
-
1690111-06029-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
17B5C-28356-00-00 STAY 1STAY 1
-
1890338-06007-00 PLUGPLUG
-
19B5C-28361-00-00 PLATE, FRONTPLATE, FRONT
-
2092017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2190119-08179-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2295807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2390387-065G0-00 COLLARCOLLAR
-
243C3-83513-00-00 DAMPERDAMPER
-
2590464-09026-00 CLAMPCLAMP
-
26B5C-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
2790269-07007-00 RIVETRIVET
-
284B5-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
