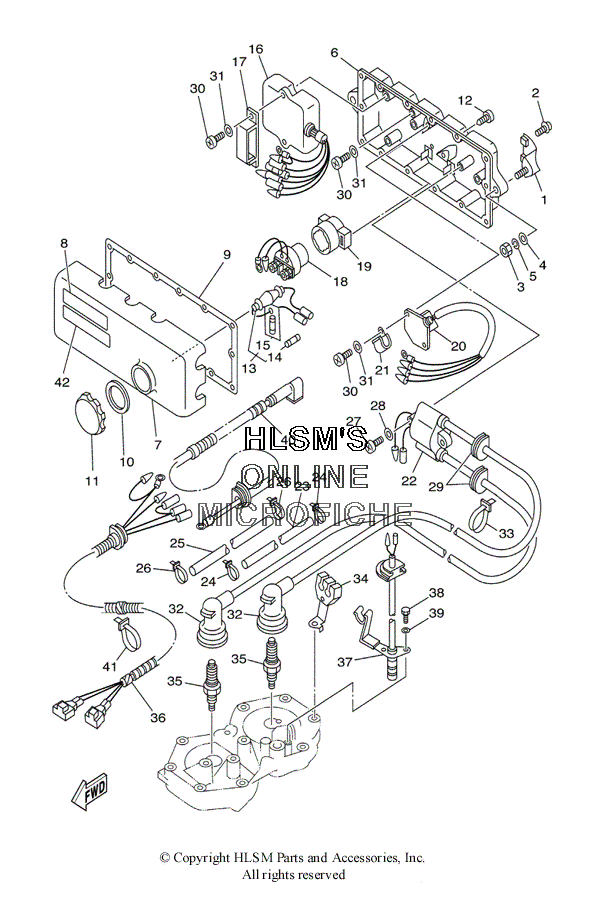

ELECTRICAL 1 для Yamaha SUPER JET 700 - 2000 года выпуска
-
№АртикулНазвание
-
1EW2-68156-00-00 BRACKET, ELECTRIC BOXBRACKET, ELECTRIC BOX
-
290119-06908-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
395380-08600-00 NUTNUT
-
492990-08200-00 WASHER, PLAINWASHER, PLAIN
-
592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
66M6-8552A-01-8P HOUSINGHOUSING
-
76M6-8552E-01-00 COVER, CASECOVER, CASE
-
86R7-83623-40-00 MARK 3MARK 3
-
96M6-81921-00-00 GASKET, TERMINALGASKET, TERMINAL
-
106M6-81844-00-00 GASKETGASKET
-
116M6-8132W-00-00 CAPCAP
-
1297780-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
136K8-82150-01-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
146G1-82151-00-00 ...FUSE...FUSE
-
156K8-82159-00-00 ...FUSE SPEAR...FUSE SPEAR
-
1662T-85540-01-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1790464-06M29-00 CLAMPCLAMP
-
186G1-81941-10-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
196M6-81952-01-00 HOLDER, RELAYHOLDER, RELAY
-
206M6-81960-A0-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2190465-06M86-00 CLAMPCLAMP
-
2262E-85570-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
236R7-82351-00-00 TUBE, CORDTUBE, CORD
-
2490465-11M10-00 CLAMPCLAMP
-
256R7-82352-00-00 TUBE, CORD 2TUBE, CORD 2
-
2690465-11M10-00 CLAMPCLAMP
-
2797880-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2892990-06600-00 WASHER, PLATEWASHER, PLATE
-
2990480-06M43-00 GROMMETGROMMET
-
3097880-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3192990-06600-00 WASHER, PLATEWASHER, PLATE
-
326R7-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
3390465-11M10-00 CLAMPCLAMP
-
346R7-82361-01-00 CLAMP, CORDCLAMP, CORD
-
3594702-00040-00 PLUG, SPARK (NGK B7HS)PLUG, SPARK (NGK B7HS)
-
366R7-82553-01-00 EXTENSION, WIRE LEADEXTENSION, WIRE LEAD
-
376R7-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
3897095-06016-00 BOLTBOLT
-
3992995-06100-00 WASHER, SPRINGWASHER, SPRING
-
4062E-82117-20-00 WIRE, LEADWIRE, LEAD
-
4190465-13M11-00 CLAMPCLAMP
-
4264V-2179X-01-00 PLATE, EPAPLATE, EPA
