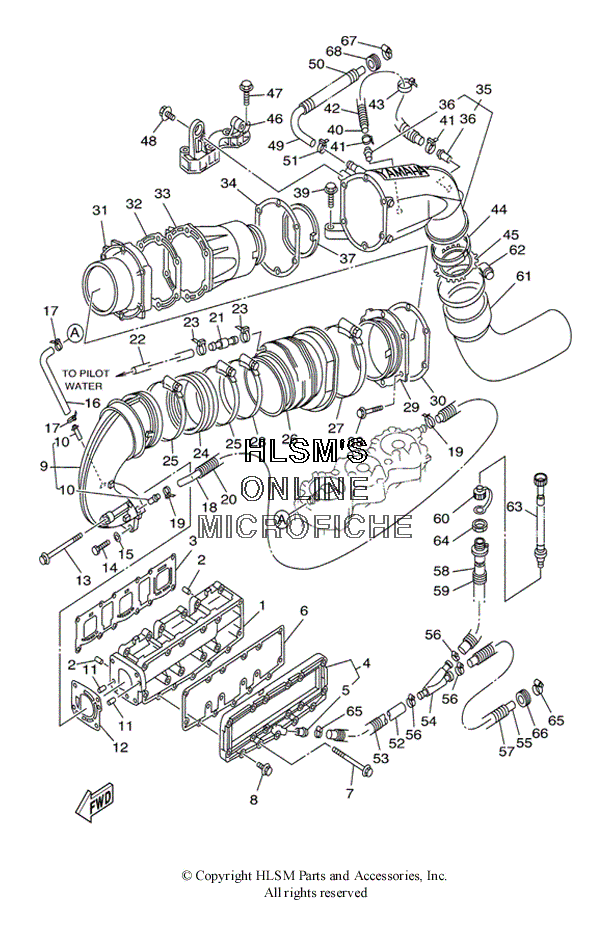

EXHAUST SYSTEM для Yamaha SUV 1200 Y - 2000 года выпуска
-
№АртикулНазвание
-
163M-14711-00-94 MUFFLER 1MUFFLER 1
-
293605-12M21-00 PIN, DOWELPIN, DOWEL
-
365U-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
463M-14718-00-9P PROTECTOR, MUFFLER 1PROTECTOR, MUFFLER 1
-
563M-51129-00-00 ...NIPPLE...NIPPLE
-
663M-14739-00-00 GASKET, MUFFLER DAMPER 1GASKET, MUFFLER DAMPER 1
-
790119-08M98-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
897595-06530-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
963M-14712-00-9P RING, JOINTRING, JOINT
-
106K8-51129-00-00 ...NIPPLE...NIPPLE
-
1193605-12M21-00 PIN, DOWELPIN, DOWEL
-
1263M-14749-00-00 GASKET, MUFFLER DAMPER 2GASKET, MUFFLER DAMPER 2
-
1390119-08M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1497013-08030-00 BOLTBOLT
-
1592903-08600-00 WASHER, PLATEWASHER, PLATE
-
1663M-12576-00-00 HOSE 1HOSE 1
-
1790450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1863M-12577-00-00 HOSE 2HOSE 2
-
1990450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2090446-20M53-00 HOSEHOSE
-
216R3-24377-00-00 PIPE, JOINT 3PIPE, JOINT 3
-
2290445-14M22-00 HOSEHOSE
-
2390465-11M10-00 CLAMPCLAMP
-
2462T-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
2590450-99M06-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2663M-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
2790450-99M16-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2890450-99M02-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2963M-41113-00-94 OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
3063M-41114-00-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
3163M-14721-00-94 MUFFLER 2MUFFLER 2
-
3263M-41122-00-00 GASKET, EXHAUST INNER COVERGASKET, EXHAUST INNER COVER
-
3363M-41121-00-94 INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
3463M-41114-00-00 GASKET, EXHAUST OUTER COVERGASKET, EXHAUST OUTER COVER
-
3563M-41123-00-94 OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
366K8-51129-00-00 ...NIPPLE...NIPPLE
-
3763M-15761-00-00 SEAL, RUBBER 1SEAL, RUBBER 1
-
3890105-08M66-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3990105-10M60-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4090445-14M05-00 HOSEHOSE
-
4190465-11M10-00 CLAMPCLAMP
-
4290446-20M39-00 HOSEHOSE
-
4390465-13M24-00 CLAMPCLAMP
-
4463M-41138-00-00 SEAL, EXT. 1SEAL, EXT. 1
-
4563M-14680-00-00 STOPPERSTOPPER
-
4663M-14771-00-94 STAY, MUFFLER 1STAY, MUFFLER 1
-
4790119-10M17-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4890105-10M88-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4966G-12578-00-00 HOSE 3HOSE 3
-
5090446-30MF1-00 HOSEHOSE
-
5190450-22M14-00 HOSE, CLAMP ASSYHOSE, CLAMP ASSY
-
5290445-18M13-00 HOSEHOSE
-
5390446-24M54-00 HOSEHOSE
-
5463M-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
5590445-18M14-00 HOSE (L600)HOSE (L600)
-
5690450-18M09-00 HOSE, CLAMP ASSYHOSE, CLAMP ASSY
-
5790446-24M89-00 HOSEHOSE
-
5864T-12580-00-00 JOINT ASSYJOINT ASSY
-
5990446-24M89-00 HOSEHOSE
-
60682-84385-01-00 CAP, 1CAP, 1
-
6166G-14752-00-00 PIPE, OUTLETPIPE, OUTLET
-
6290450-99M02-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6363M-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
64EU0-61652-00-00 NUTNUT
-
6590601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
6690480-329U2-00 GROMMETGROMMET
-
6790601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
6890480-329U2-00 GROMMETGROMMET
