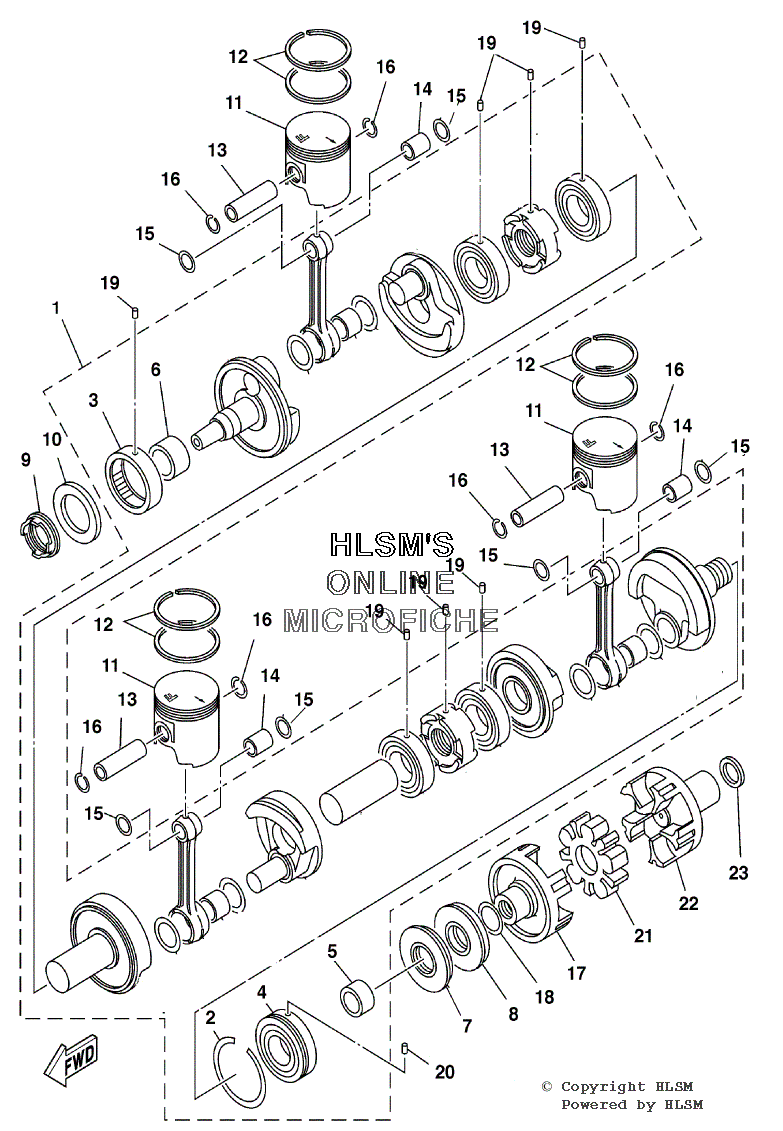

CRANKSHAFT W/ PISTON для Yamaha SUV 1200 Z - 2001 года выпуска
-
№АртикулНазвание
-
293440-80023-00 ...CIRCLIP...CIRCLIP
-
393390-000U4-00 ...BEARING...BEARING
-
493306-307U3-00 ...BEARING...BEARING
-
562T-45526-00-00 ...COLLAR, DRIVE SHAFT...COLLAR, DRIVE SHAFT
-
690387-32M02-00 ...COLLAR...COLLAR
-
793102-36M33-00 OIL SEALOIL SEAL
-
893101-36M46-00 OIL SEALOIL SEAL
-
993103-32M01-00 OIL SEALOIL SEAL
-
165U-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
1065U-11445-00-00 SPACERSPACER
-
1165U-11631-01-90 PISTON (STD)PISTON (STD)
-
1165U-11635-01-00 PISTON (0.25MM O/S) (AP)PISTON (0.25MM O/S) (AP)
-
1165U-11636-01-00 PISTON (0.50MM O/S) (AP)PISTON (0.50MM O/S) (AP)
-
1265U-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1265U-11604-00-00 PISTON RING SET (0.25MM O/S) (AP)PISTON RING SET (0.25MM O/S) (AP)
-
1265U-11605-00-00 PISTON RING SET (0.50MM O/S) (AP)PISTON RING SET (0.50MM O/S) (AP)
-
1362T-11633-00-00 PIN, PISTONPIN, PISTON
-
1493310-320U2-00 BEARINGBEARING
-
1590201-20M04-00 WASHER, PLATEWASHER, PLATE
-
1693450-21053-00 CIRCLIPCIRCLIP
-
1763M-45813-01-8P FLANGE, COUPLINGFLANGE, COUPLING
-
1862T-45127-00-00 SEALSEAL
-
1993603-10049-00 PIN, DOWELPIN, DOWEL
-
2093604-07141-00 PIN, DOWELPIN, DOWEL
-
2163M-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
2263M-45813-01-8P FLANGE, COUPLINGFLANGE, COUPLING
-
2390201-278T0-00 WASHER, PLATEWASHER, PLATE
