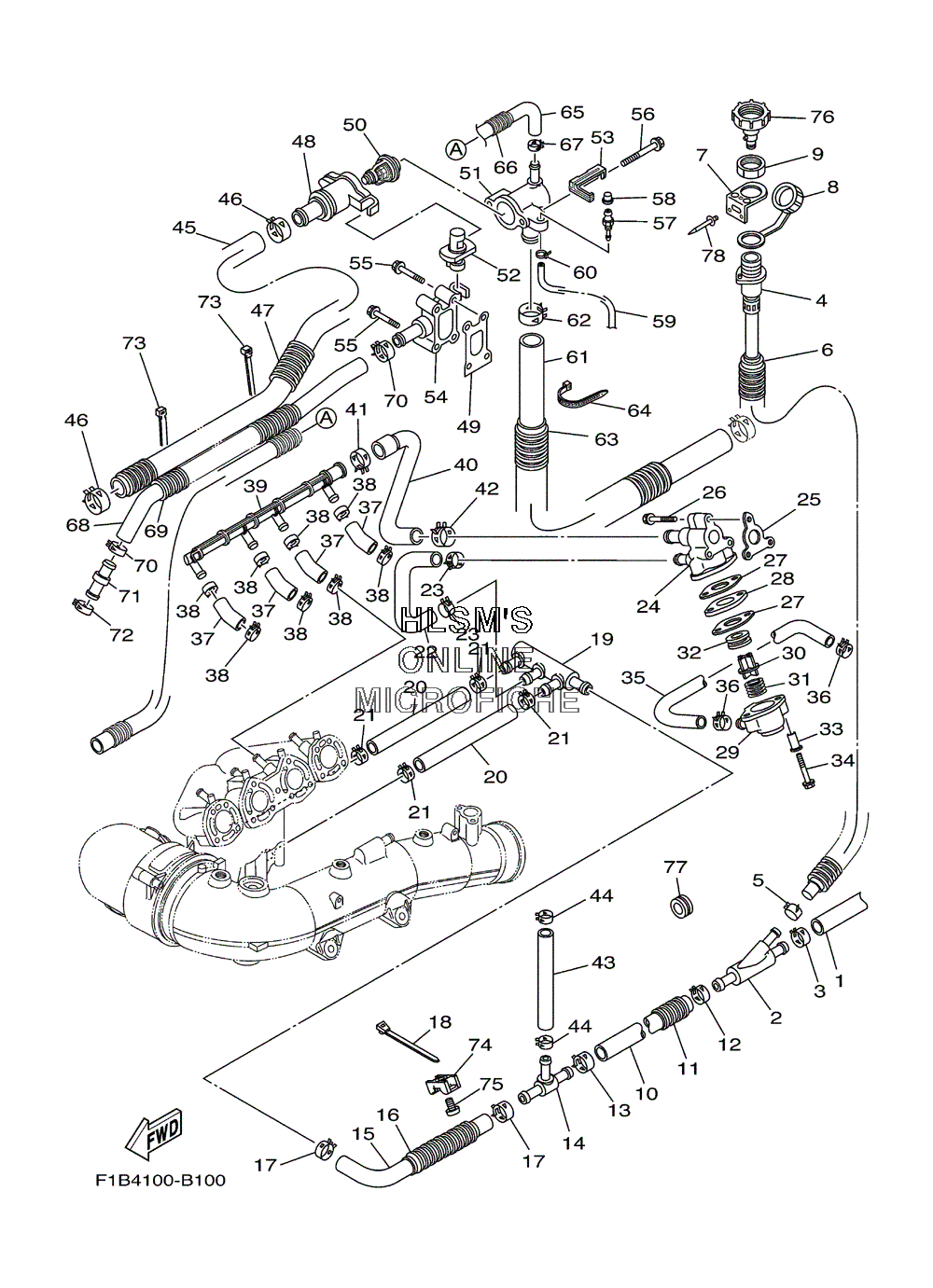

EXHAUST - HOSES для Yamaha FX CRUISER 2-PASS - 2003 года выпуска
-
№АртикулНазвание
-
160E-1243A-00-00 HOSE 1HOSE 1
-
260E-12581-00-00 JOINT, HOSE 1JOINT, HOSE 1
-
390467-200A0-00 CLIPCLIP
-
460E-12580-00-00 JOINT ASSYJOINT ASSY
-
590467-150A0-00 CLIPCLIP
-
690446-24M79-00 HOSEHOSE
-
760E-12443-00-00 STAYSTAY
-
8682-84385-01-00 CAP, 1CAP, 1
-
9EU0-61652-00-00 NUTNUT
-
1090445-21003-00 HOSEHOSE
-
1190447-22003-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
1290467-200A0-00 CLIPCLIP
-
1390467-200A0-00 CLIPCLIP
-
1460E-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
1560E-1243E-00-00 HOSE 2HOSE 2
-
1690447-22001-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
1790467-200A0-00 CLIPCLIP
-
1890464-55001-00 CLAMPCLAMP
-
1960E-12582-00-00 JOINT, HOSE 2JOINT, HOSE 2
-
2090445-18003-00 HOSEHOSE
-
2190467-160A0-00 CLIPCLIP
-
2260E-1243F-00-00 HOSE,3HOSE,3
-
2390467-160A0-00 CLIPCLIP
-
2460E-12479-00-94 JOINTJOINT
-
2560E-12434-00-00 GASKETGASKET
-
2697595-06545-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2760E-12414-00-00 GASKET, COVERGASKET, COVER
-
2860E-12535-00-00 PLATEPLATE
-
2960E-12422-00-00 COVER, HOUSINGCOVER, HOUSING
-
306G5-12416-00-00 VALVE, PRESSURE CONTROLVALVE, PRESSURE CONTROL
-
3190501-16M11-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3290480-20M05-00 GROMMETGROMMET
-
3390387-06M65-00 COLLARCOLLAR
-
3497595-06540-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590445-18M13-00 HOSE (L350)HOSE (L350)
-
3690467-160A0-00 CLIPCLIP
-
3760E-12576-00-00 HOSE 1HOSE 1
-
3890467-150A1-00 CLIPCLIP
-
3960E-12469-00-00 JOINT 1JOINT 1
-
4060E-12577-00-00 HOSE 2HOSE 2
-
4190467-22002-00 CLIPCLIP
-
4290467-200A0-00 CLIPCLIP
-
4390445-18004-00 HOSE (L130)HOSE (L130)
-
4490467-160A0-00 CLIPCLIP
-
4560E-12578-00-00 HOSE 3HOSE 3
-
4690467-240A0-00 CLIPCLIP
-
4790447-28003-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
4860E-12417-00-94 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
4960E-12435-00-00 GASKETGASKET
-
5060E-12411-00-00 THERMOSTATTHERMOSTAT
-
5160E-12413-00-94 COVER, THERMOSTATCOVER, THERMOSTAT
-
5260E-12499-00-00 JOINTJOINT
-
5360E-1244F-00-00 BRACKET 1BRACKET 1
-
5460E-12446-00-94 JOINTJOINT
-
5590105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
5690105-06035-00 BOLT, FLANGEBOLT, FLANGE
-
5761L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
58663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
5990445-09M33-00 HOSE (L580)HOSE (L580)
-
6090465-11M10-00 CLAMPCLAMP
-
6190445-25003-00 HOSE (L900)HOSE (L900)
-
6290467-240A0-00 CLIPCLIP
-
6390447-28002-00 TUBE (L800)TUBE (L800)
-
6490465-13M18-00 CLAMPCLAMP
-
6560E-12552-00-00 HOSE 8HOSE 8
-
6690447-22002-00 TUBE (L1150)TUBE (L1150)
-
6790467-120A0-00 CLIPCLIP
-
6890445-21004-00 HOSE (L530)HOSE (L530)
-
6990446-27M55-00 TUBE (L400)TUBE (L400)
-
7090467-200A0-00 CLIPCLIP
-
7160E-51142-00-00 CONNECTIONCONNECTION
-
7290467-200A0-00 CLIPCLIP
-
7390465-14M66-00 CLAMPCLAMP
-
7460E-1244E-00-00 BRACKET 1BRACKET 1
-
7597980-05210-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
7667X-12590-00-00 CONDUCTION ASSYCONDUCTION ASSY
-
7790480-38800-00 GROMMETGROMMET
-
7890267-48802-00 RIVET, BLINDRIVET, BLIND
