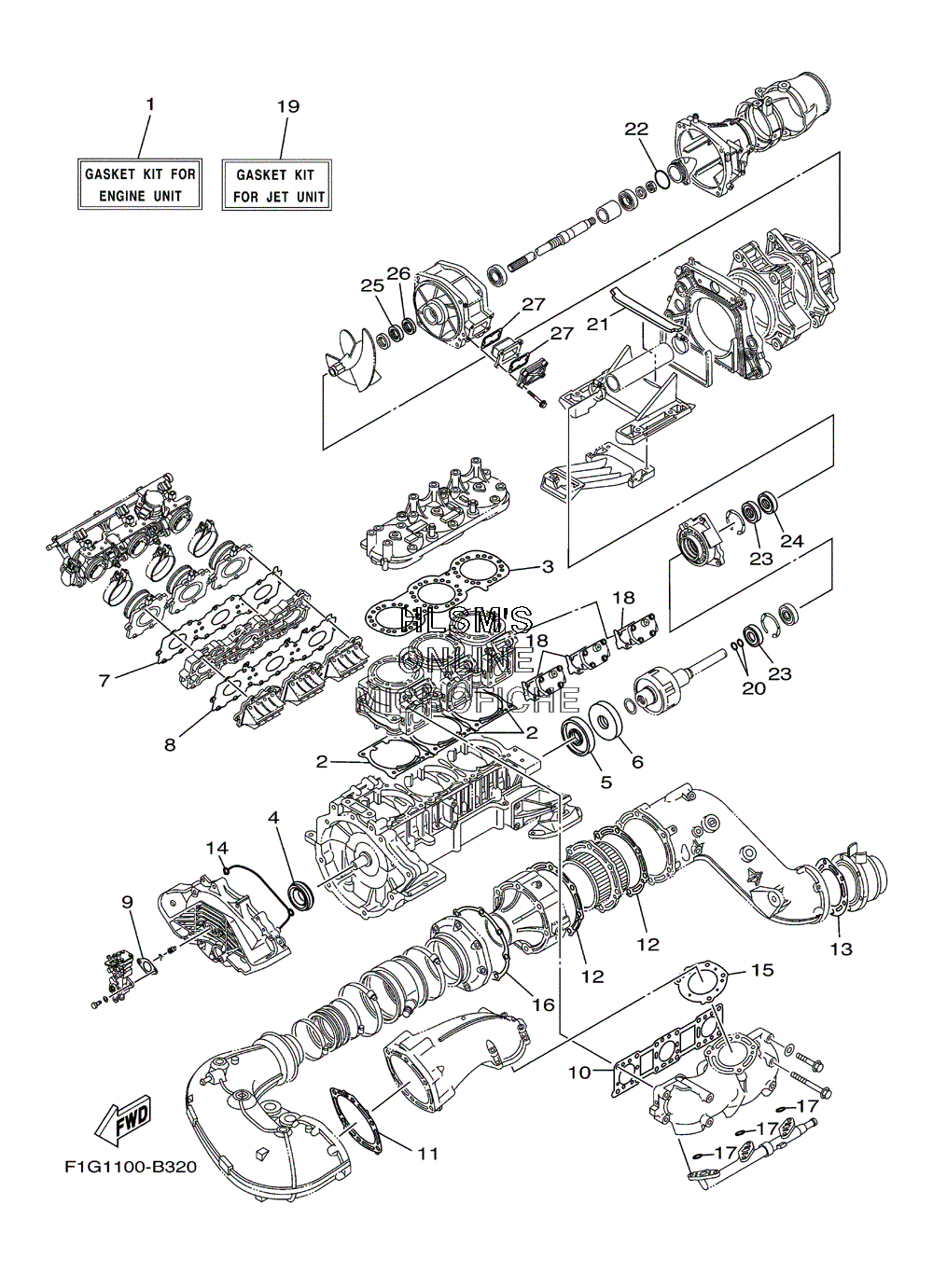

GASKET KIT - ENGINE AND JET UNIT для Yamaha GP1300R WAVERUNNER 2-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
160T-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
266E-11351-01-00 ...GASKET, CYLINDER...GASKET, CYLINDER
-
360T-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
493103-35011-00 ...OIL SEAL...OIL SEAL
-
593101-34001-00 ...OIL SEAL...OIL SEAL
-
693101-34002-00 ...OIL SEAL...OIL SEAL
-
760T-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
860T-13624-00-00 ...PLATE, REED VALVE...PLATE, REED VALVE
-
963M-13116-00-00 ...GASKET, PUMP CASE...GASKET, PUMP CASE
-
1066V-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
1166V-14749-00-00 ...GASKET, MUFFLER DAMPER 2...GASKET, MUFFLER DAMPER 2
-
1266V-41124-00-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1368N-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
1466V-81168-10-00 ...O-RING...O-RING
-
1566V-14739-00-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
1666V-41114-00-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1793210-17MA4-00 ...O-RING...O-RING
-
1866E-1131B-01-00 ...GASKET, COVER...GASKET, COVER
-
1960T-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2093210-19MJ4-00 ...O-RING...O-RING
-
2167X-51367-00-00 ...FELT, PACKING...FELT, PACKING
-
2293210-46M16-00 ...O-RING...O-RING
-
2393101-25M55-00 ...OIL SEAL...OIL SEAL
-
2493101-25M56-00 ...OIL SEAL...OIL SEAL
-
2593101-28M66-00 ...OIL SEAL...OIL SEAL
-
2693101-28M65-00 ...OIL SEAL...OIL SEAL
