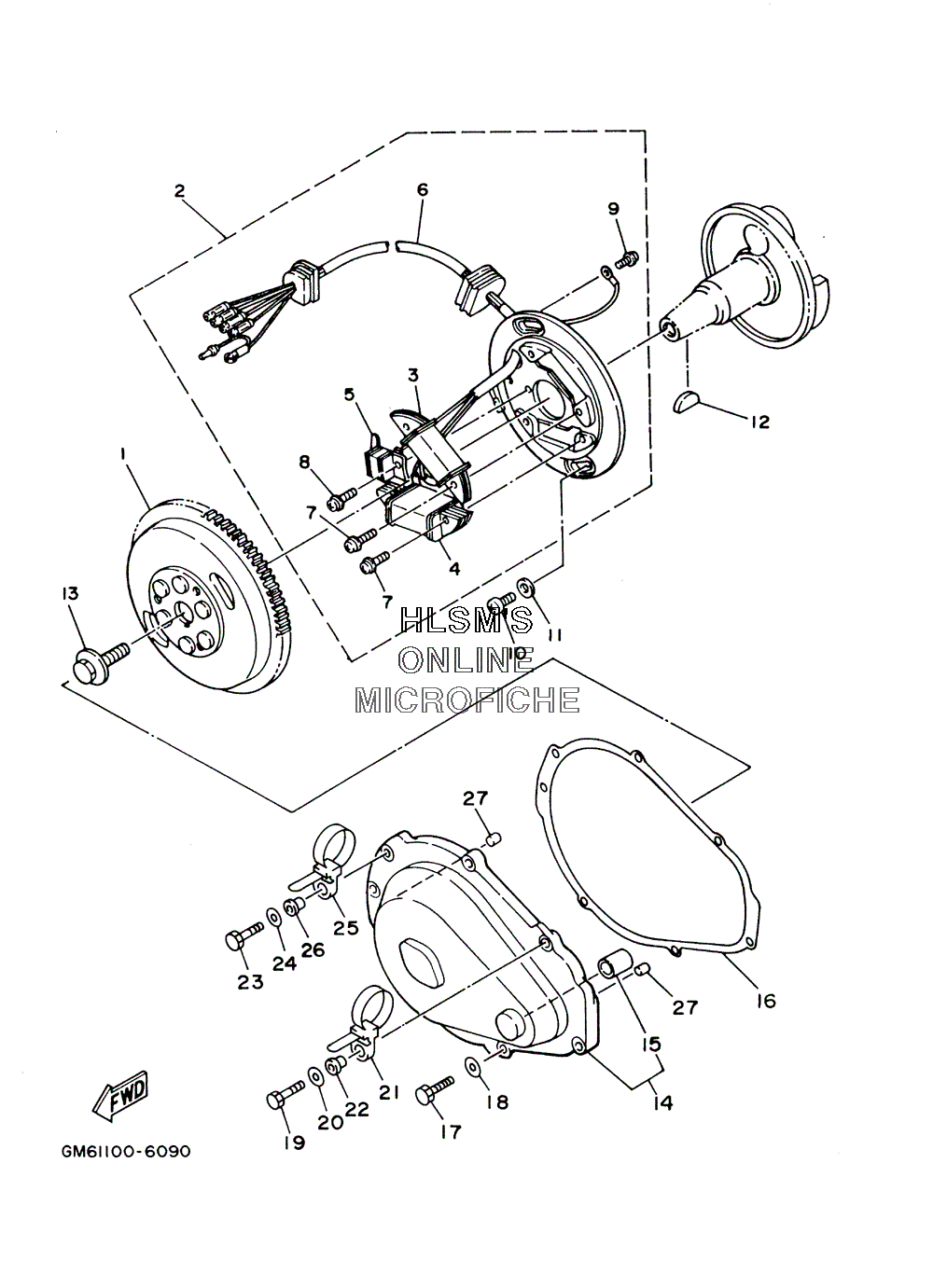

GENERATOR для Yamaha SUPER JET SJ700B (F1N4) - 2003 года выпуска
-
№АртикулНазвание
-
162T-85550-00-00 ROTOR ASSYROTOR ASSY
-
262T-85560-00-00 BASE ASSYBASE ASSY
-
362T-85520-00-00 ...COIL, CHARGE...COIL, CHARGE
-
462T-85533-00-00 ...COIL, LIGHTING...COIL, LIGHTING
-
56M6-85580-00-00 ...COIL, PULSER...COIL, PULSER
-
662T-85515-00-00 ...LEAD WIRE ASSY...LEAD WIRE ASSY
-
797902-05125-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
897902-04122-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
997802-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1097880-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1192990-06600-00 WASHER, PLATEWASHER, PLATE
-
1290280-05013-00 KEY, WOODRUFFKEY, WOODRUFF
-
1390109-10M44-00 BOLTBOLT
-
146M6-81337-00-8P COVER, FLYWHEELCOVER, FLYWHEEL
-
1590380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
166M6-81365-A0-00 GASKET, HOLE COVERGASKET, HOLE COVER
-
1797095-06025-00 BOLTBOLT
-
1892995-06600-00 WASHERWASHER
-
1997095-06035-00 BOLTBOLT
-
2092995-06600-00 WASHERWASHER
-
2190465-12M53-00 CLAMPCLAMP
-
2290387-06M05-00 COLLARCOLLAR
-
2397095-06035-00 BOLTBOLT
-
2492995-06600-00 WASHERWASHER
-
2590465-12M53-00 CLAMPCLAMP
-
2690387-06M05-00 COLLARCOLLAR
-
2793606-12019-00 PIN, DOWELPIN, DOWEL
