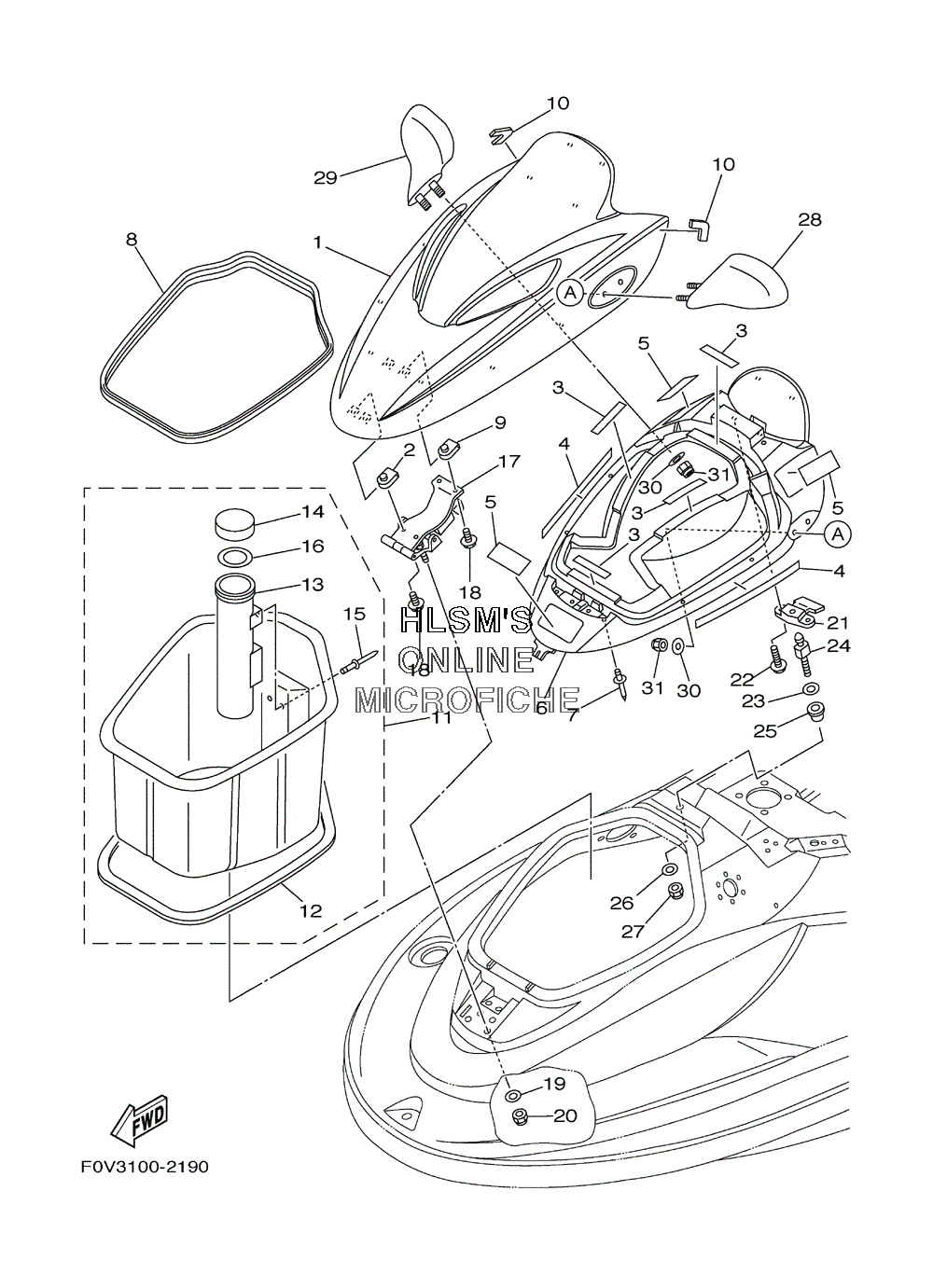

FRONT STORAGE W/ COVER для Yamaha XLT800 WAVERUNNER 3-PERSON - 2003 года выпуска
-
№АртикулНазвание
-
1F0V-U517B-40-P0 LID, ENGINE ROOM (GRAYISH CYAN METALLIC (NCM3))LID, ENGINE ROOM (GRAYISH CYAN METALLIC (NCM3))
-
1F0V-U517B-50-P0 LID, ENGINE ROOM (YELLOW METALLIC (YM2))LID, ENGINE ROOM (YELLOW METALLIC (YM2))
-
290183-06902-00 NUT, SPRINGNUT, SPRING
-
3F0V-U3635-00-00 TAPE, FITTINGTAPE, FITTING
-
4F0V-U3635-10-00 TAPE, FITTINGTAPE, FITTING
-
5F0V-U3635-20-00 TAPE, FITTINGTAPE, FITTING
-
6F0V-U2103-10-00 VENTILATOR COVER COMP., 2VENTILATOR COVER COMP., 2
-
790267-48809-00 RIVET, BLINDRIVET, BLIND
-
8F0V-U266B-00-00 PACKING 3PACKING 3
-
990183-06902-00 NUT, SPRINGNUT, SPRING
-
10F0V-U517M-00-00 PAD, HATCH 1PAD, HATCH 1
-
11F0D-U475A-00-00 BOWLOCKER ASSYBOWLOCKER ASSY
-
12GJ3-U266C-31-00 ...PACKING 4...PACKING 4
-
13GP7-U5983-00-00 ...BOX, FIRE EXTINGUISHER...BOX, FIRE EXTINGUISHER
-
14EW2-U5912-01-00 ...CAP, CASE...CAP, CASE
-
1590267-489UP-00 ...RIVET, BLIND...RIVET, BLIND
-
16EW2-U5913-01-00 ...PACKING, CASE...PACKING, CASE
-
17F0V-6515A-01-00 HINGE ASSY.HINGE ASSY.
-
1890119-069UB-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990201-06802-00 WASHER, PLATEWASHER, PLATE
-
209572R-06300-00 NUT, FLANGENUT, FLANGE
-
21F0D-6517C-04-00 LOCK, LIDLOCK, LID
-
2290119-069UH-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
23F0V-U515E-00-00 DAMPER 2DAMPER 2
-
24F0D-63774-01-00 PINPIN
-
2590387-08802-00 COLLARCOLLAR
-
269299R-08200-00 WASHERWASHER
-
279572R-08300-00 NUT, FLANGENUT, FLANGE
-
28F0V-U596B-03-00 MIRROR (LEFT HAND) (YAMAHA BLACK (YB))MIRROR (LEFT HAND) (YAMAHA BLACK (YB))
-
29F0V-U596C-03-00 MIRROR (RIGHT HAND) (YAMAHA BLACK (YB))MIRROR (RIGHT HAND) (YAMAHA BLACK (YB))
-
309299R-08200-00 WASHERWASHER
-
319572R-08300-00 NUT, FLANGENUT, FLANGE
