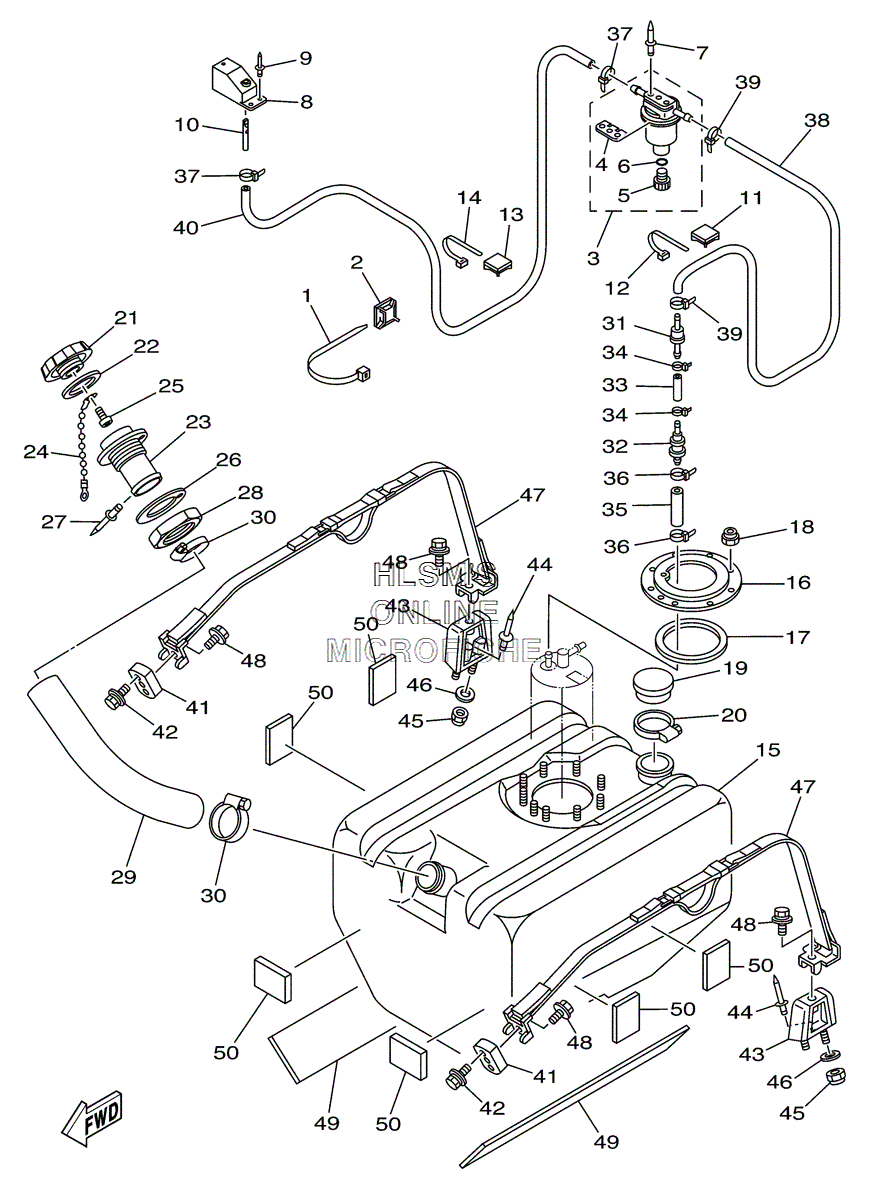

FUEL TANK для Yamaha FX1000 FX140 3-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
190464-99804-00 CLAMPCLAMP
-
290600-900U6-00 BASE, CLAMPBASE, CLAMP
-
3EW2-62140-00-00 FILTER, VENT ASSYFILTER, VENT ASSY
-
4EW2-62142-00-00 ...PLATE, FILTER...PLATE, FILTER
-
570R-24543-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
670R-24489-00-00 ...O-RING...O-RING
-
790267-489U2-00 RIVET, BLINDRIVET, BLIND
-
8GP7-62159-01-00 SOCKET, VENTILATIONSOCKET, VENTILATION
-
990267-489U6-00 RIVET, BLINDRIVET, BLIND
-
10EW2-62149-00-00 PIPE, VENTILATION 1PIPE, VENTILATION 1
-
1190600-900U6-00 BASE, CLAMPBASE, CLAMP
-
1290464-40825-00 CLAMPCLAMP
-
1390600-900U6-00 BASE, CLAMPBASE, CLAMP
-
1490464-40825-00 CLAMPCLAMP
-
15F1B-U7711-01-00 TANK, FUELTANK, FUEL
-
16F1B-U7773-00-00 RINGRING
-
17F1B-67747-00-00 PACKING, SEALPACKING, SEAL
-
189572R-06300-00 NUT, NYLONNUT, NYLON
-
19FN8-6771K-00-00 COVERCOVER
-
2090601-162U5-00 BAND, HOSE 62BAND, HOSE 62
-
21GP7-U7831-01-00 CAP, FUEL FILLER (OPT) (PURW - PURE WHITE)CAP, FUEL FILLER (OPT) (PURW - PURE WHITE)
-
22GP7-U7832-01-00 PACKINGPACKING
-
23GP7-U7833-00-00 SOCKETSOCKET
-
24GP7-U7835-00-00 CHAIN BALLCHAIN BALL
-
2590169-049U1-00 TAPPING SCREWTAPPING SCREW
-
26GP7-U7834-00-00 PACKING FUEL FILLERPACKING FUEL FILLER
-
2790267-329UR-00 RIVET, BLINDRIVET, BLIND
-
28GP7-U783F-00-00 NUT, FUEL FILLERNUT, FUEL FILLER
-
29F1B-U7844-01-00 HOSEHOSE
-
3090601-155U4-00 BAND, HOSE 55BAND, HOSE 55
-
31F1B-67767-00-00 CHECK VALVECHECK VALVE
-
32FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
3390699-50004-00 HOSEHOSE
-
3490465-11M10-00 CLAMPCLAMP
-
35GP7-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
3690465-11829-00 CLAMPCLAMP
-
3790465-11829-00 CLAMPCLAMP
-
38F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
3990465-11829-00 CLAMPCLAMP
-
40F0D-U7856-10-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
41F1B-U2873-00-00 NUT, SPECIALNUT, SPECIAL
-
4290119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
43F1B-6774J-00-00 BRKT, BANDBRKT, BAND
-
4490267-489UE-00 RIVET, BLINDRIVET, BLIND
-
459572R-06300-00 NUT, NYLONNUT, NYLON
-
469299R-06200-00 WASHERWASHER
-
47F1B-67743-02-00 BELT, TANK 1BELT, TANK 1
-
4890119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
49F1B-U759B-00-00 MAT 1MAT 1
-
50F1B-U759C-00-00 MAT 2MAT 2
