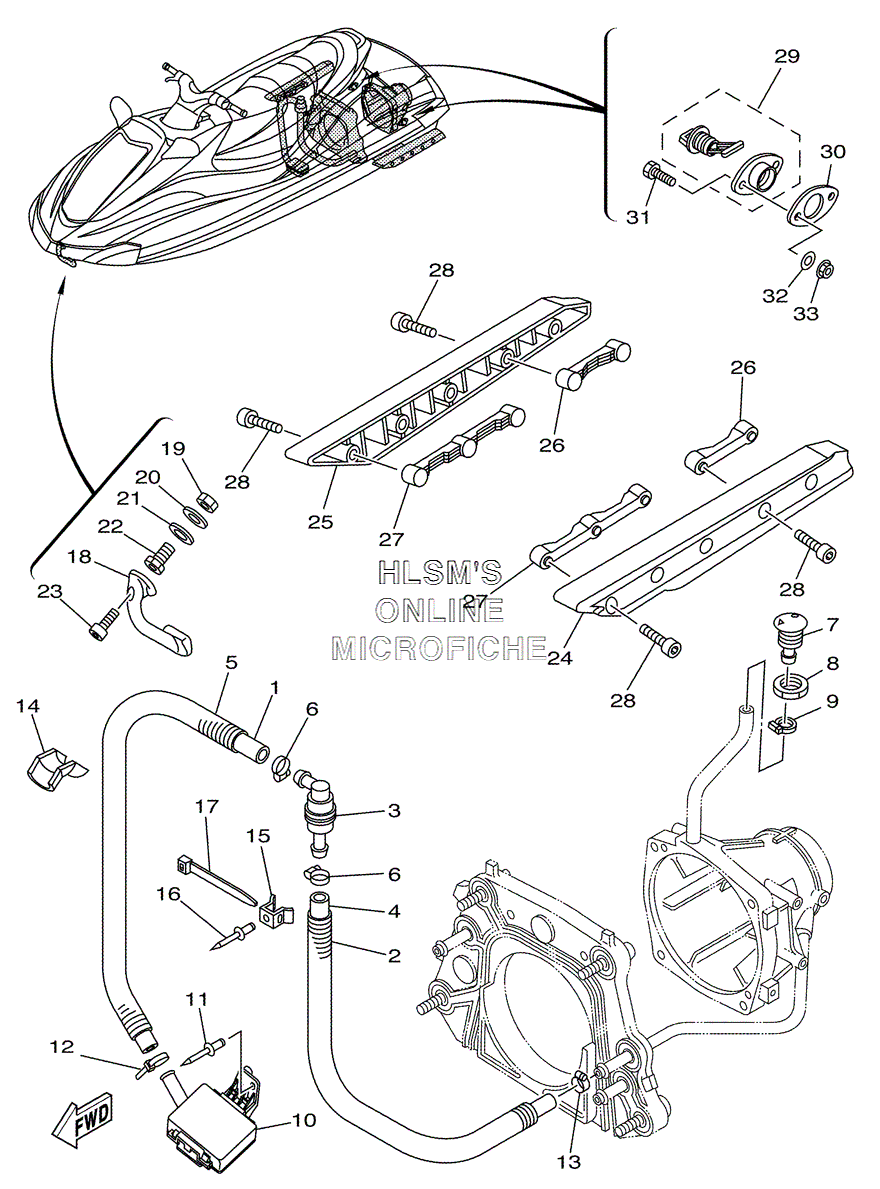

HULL FITTINGS W/ SPONSONS для Yamaha FX1000A FX CRUISER 3-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
190445-198B6-00 HOSE (L860)HOSE (L860)
-
290446-27M73-00 HOSE (L700)HOSE (L700)
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-19896-00 HOSE (L500)HOSE (L500)
-
590446-27M55-00 TUBE (L400)TUBE (L400)
-
690601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
7FN8-6269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10F1B-U761D-02-00 STRAINER, BILGESTRAINER, BILGE
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
1290601-200U1-00 BANDBAND
-
1390467-200A0-00 CLIPCLIP
-
14F1B-U7578-20-00 PACKING, HOSE 2PACKING, HOSE 2
-
1590600-917U4-00 CLAMP COMP.CLAMP COMP.
-
1690267-48802-00 RIVET, BLINDRIVET, BLIND
-
1790464-32801-00 CLAMPCLAMP
-
18F0X-61624-00-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
1999780-12600-00 NUT HEX (COARSE)NUT HEX (COARSE)
-
2092990-12200-00 WASHER, PLAINWASHER, PLAIN
-
21F0X-61637-00-00 WASHERWASHER
-
22F0X-61652-00-00 NUTNUT
-
2390110-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
24F1B-U883N-00-00 STABILIZER LH (YB - YAMAHA BLACK)STABILIZER LH (YB - YAMAHA BLACK)
-
25F1B-U883P-00-00 STABILIZER RH (YB - YAMAHA BLACK)STABILIZER RH (YB - YAMAHA BLACK)
-
26F1F-U883T-01-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
27F1B-U883T-01-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
28F1B-U1355-00-00 BOLTBOLT
-
29F1S-U2280-00-00 DRAIN PLUG ASSY.DRAIN PLUG ASSY.
-
30F1S-U2285-00-00 PACKING, DRAINPACKING, DRAIN
-
319788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
329299R-05200-00 WASHERWASHER
-
339572R-05300-00 NUT, FLANGENUT, FLANGE
