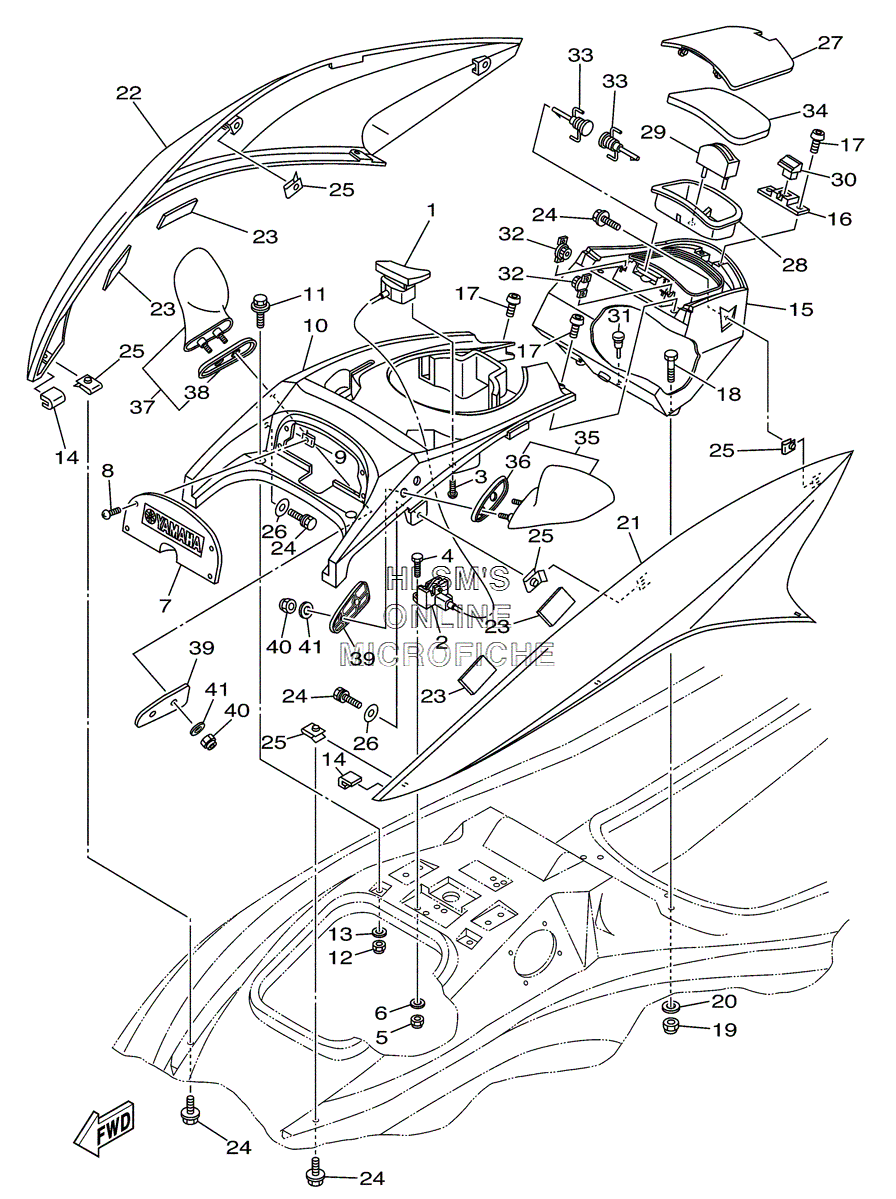

SIDE COVERS для Yamaha FX1100 FX CRUISER HO 3-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
1F1B-651A1-00-00 LEVER, LID LOCKLEVER, LID LOCK
-
2F1B-6517C-01-00 LOCK, LIDLOCK, LID
-
390149-05946-00 SCREWSCREW
-
490119-06824-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
59572R-06300-00 NUT, NYLONNUT, NYLON
-
69299R-06200-00 WASHERWASHER
-
7F1B-U555B-00-00 SEAL, COVER CENTERSEAL, COVER CENTER
-
890149-05981-00 SCREWSCREW
-
9FJ0-61432-00-00 NUTNUT
-
10F1B-U5554-12-00 COVER, CENTER (YB - YAMAHA BLACK)COVER, CENTER (YB - YAMAHA BLACK)
-
1190119-06934-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
129572R-06300-00 NUT, NYLONNUT, NYLON
-
139299R-06200-00 WASHERWASHER
-
14F1B-U5115-00-00 TRIM, HATCH 1TRIM, HATCH 1
-
15F1B-U516P-00-00 BOX GLOVE (YB - YAMAHA BLACK)BOX GLOVE (YB - YAMAHA BLACK)
-
16F1B-65193-00-00 PLATEPLATE
-
1790111-06047-00 BOLTBOLT
-
1897080-08030-00 BOLTBOLT
-
199572R-08300-00 NUT, FLANGENUT, FLANGE
-
209299R-08200-00 WASHERWASHER
-
21F1B-U377B-40-P0 COVER, SIDE 1(SILVER)COVER, SIDE 1(SILVER)
-
21F1B-U377B-50-P0 COVER, SIDE 1 (RED)COVER, SIDE 1 (RED)
-
22F1B-U377C-40-P0 COVER, SIDE 2(SILVER)COVER, SIDE 2(SILVER)
-
22F1B-U377C-50-P0 COVER, SIDE 2 (RED)COVER, SIDE 2 (RED)
-
23GJ1-U759C-00-00 MAT 2MAT 2
-
2490119-06858-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590183-06902-00 NUT, SPRINGNUT, SPRING
-
2690201-068G7-00 WASHER, PLATEWASHER, PLATE
-
27F1B-U517H-00-00 LID HATCHLID HATCH
-
28F1B-U5633-01-00 HOLDER, DRINKHOLDER, DRINK
-
29F1S-U827C-00-00 HOLDERHOLDER
-
30F0D-62875-00-00 LOCKLOCK
-
3190605-502U2-00 PLUGPLUG
-
32F1B-60210-00-00 GEAR ASSYGEAR ASSY
-
33F1B-6517R-00-00 PIN, HINGEPIN, HINGE
-
34F1B-U519D-00-00 PACKING CASEPACKING CASE
-
35F0V-U596B-04-00 MIRROR LH (YB - YAMAHA BLACK)MIRROR LH (YB - YAMAHA BLACK)
-
36F0V-U471E-00-00 ...SPACER 1...SPACER 1
-
37F0V-U596C-04-00 MIRROR RH (YB - YAMAHA BLACK)MIRROR RH (YB - YAMAHA BLACK)
-
38F0V-U471F-00-00 ...SPACER 2...SPACER 2
-
39F1B-U5646-00-00 PLATEPLATE
-
409572R-08300-00 NUT, FLANGENUT, FLANGE
-
419299R-08200-00 WASHERWASHER
