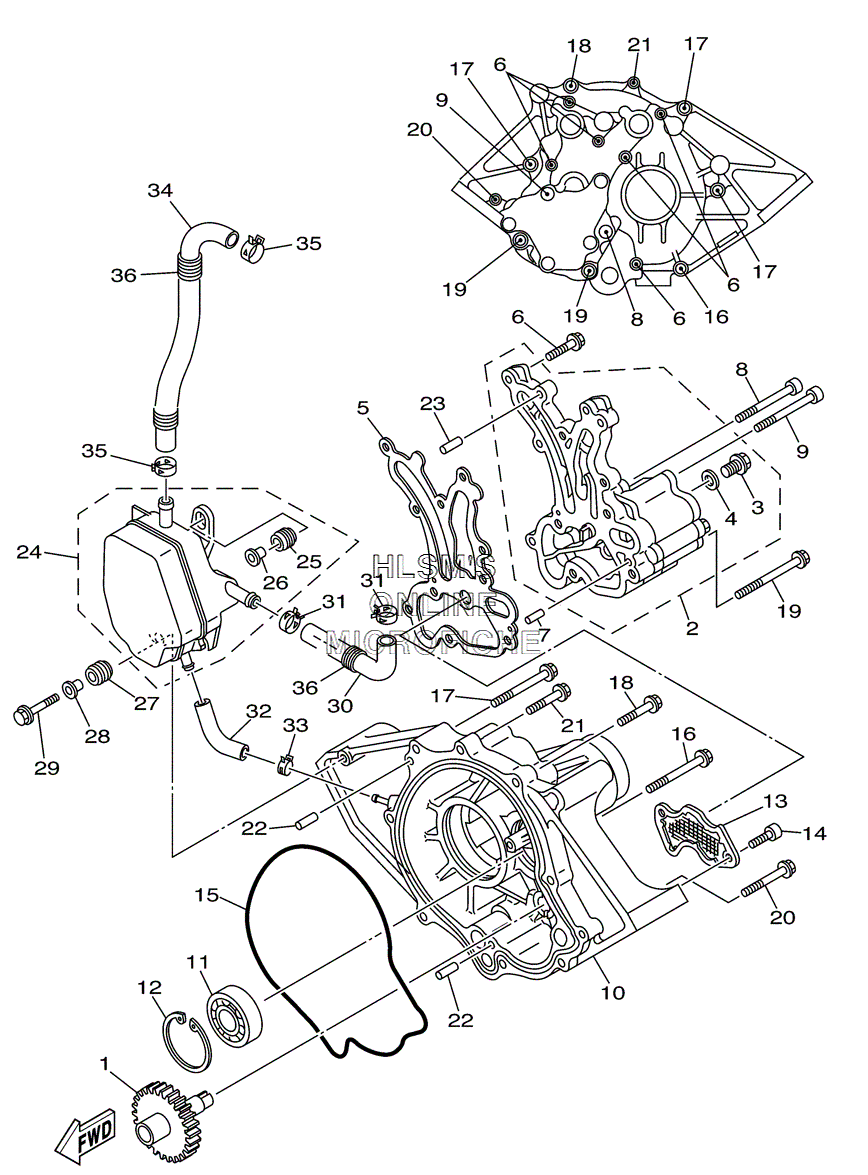

OIL PUMP для Yamaha FX1100 FX HO 3-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
16B6-13360-00-00 DRIVEN GEAR ASSYDRIVEN GEAR ASSY
-
26B6-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
395817-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
490430-08119-00 ...GASKET...GASKET
-
56B6-13563-00-00 GASKETGASKET
-
697513-06525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
793603-12221-00 PIN, DOWELPIN, DOWEL
-
890110-08039-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990110-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
106B6-13327-00-94 COVER, PUMP GEARCOVER, PUMP GEAR
-
1193306-30441-00 BEARINGBEARING
-
1299009-52500-00 CIRCLIPCIRCLIP
-
136B6-13411-00-00 STRAINER, OILSTRAINER, OIL
-
1491317-06016-00 BOLTBOLT
-
156B6-13475-00-00 GASKETGASKET
-
1690119-08045-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790119-08034-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890119-08043-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990119-08073-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2097513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2197513-06535-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2293608-16M16-00 PIN, DOWELPIN, DOWEL
-
2393606-25M00-00 PIN, DOWELPIN, DOWEL
-
2460E-11164-00-00 SEPERATOR, OILSEPERATOR, OIL
-
256A0-82317-00-00 ...DAMPER, IGNITION COIL...DAMPER, IGNITION COIL
-
26624-42542-00-00 ...PIPE...PIPE
-
276A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
28624-42542-00-00 PIPEPIPE
-
2990119-06M65-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3060E-11126-01-00 PIPE, BREATHER 3PIPE, BREATHER 3
-
3190467-170A0-00 CLIPCLIP
-
326B6-11125-00-00 PIPE, BREATHER 4PIPE, BREATHER 4
-
3390467-110A1-00 CLIPCLIP
-
3460E-11166-01-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
3590467-170A0-00 CLIPCLIP
-
3690447-19005-00 HOSE, WITH SPRINGHOSE, WITH SPRING
