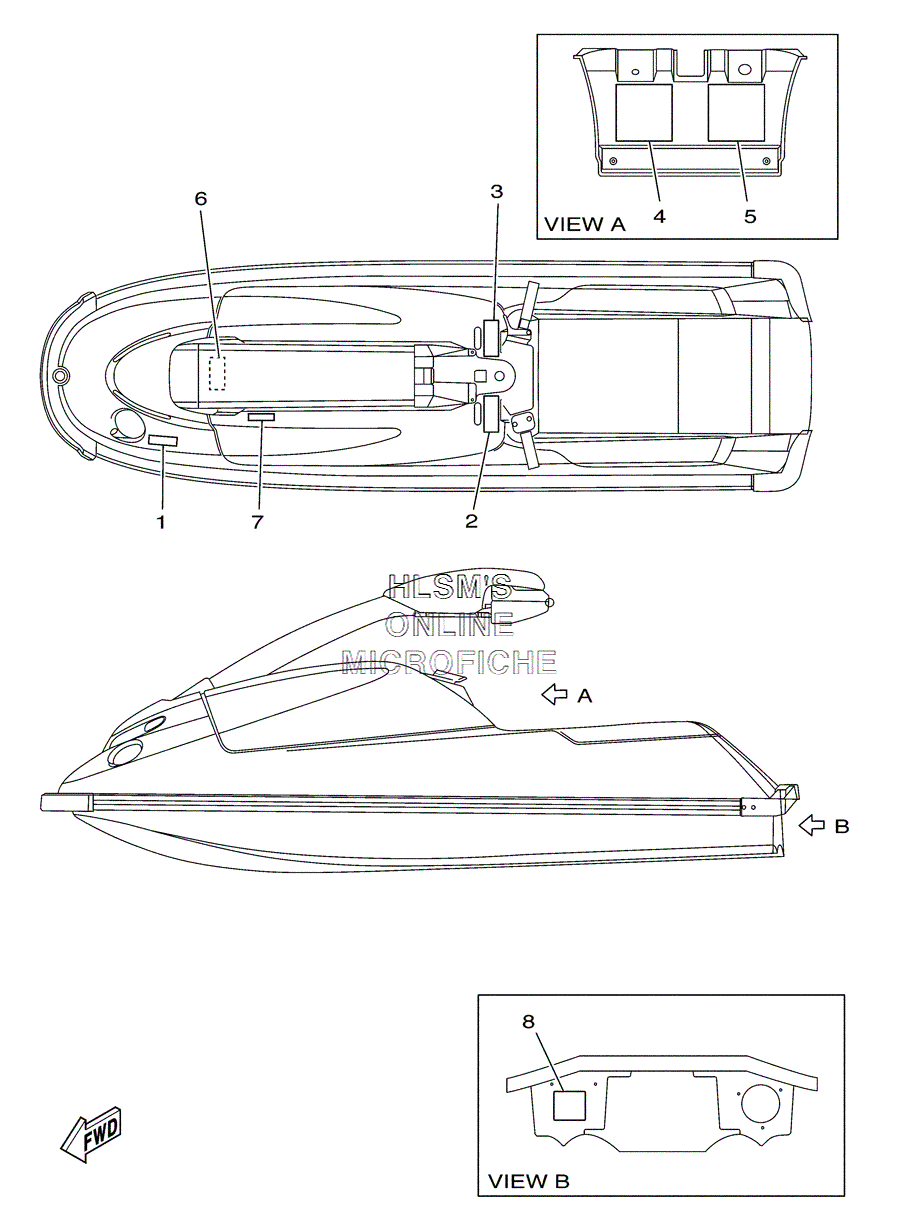

GRAPHICS - WARNING / CAUTION для Yamaha SJ700B SUPER JET - 2004 года выпуска`
-
№АртикулНазвание
-
1F1N-6415B-00-00 LABEL, WARNING (FUEL)LABEL, WARNING (FUEL)
-
2GM6-641B1-01-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
3GM6-641B1-10-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
4GM6-641B2-00-00 LABEL, WARNING JDC 2LABEL, WARNING JDC 2
-
5GM6-641B2-10-00 LABEL, WARNING JDC 2LABEL, WARNING JDC 2
-
6F1N-641DB-00-00 LABEL, WARNING BATTERYLABEL, WARNING BATTERY
-
7GK5-6411B-00-00 PLATE, ASSYPLATE, ASSY
-
8EU0-64188-00-00 LABEL, RIGHTINGLABEL, RIGHTING
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BILGE SYSTEM
- BUMBER W/ GUNWALE MAT
- CARBURETOR
- CARBURETOR REPAIR KIT
- CONTROL CABLES
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CRANKCASE
- ELECTRICAL 1
- ELECTRICAL 2
- ENGINE HATCH
- EXHAUST - HOSES
- EXHAUST SYSTEM
- FUEL LINES
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- • GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- MODEL INFO - MANUALS
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- STARTING MOTOR
